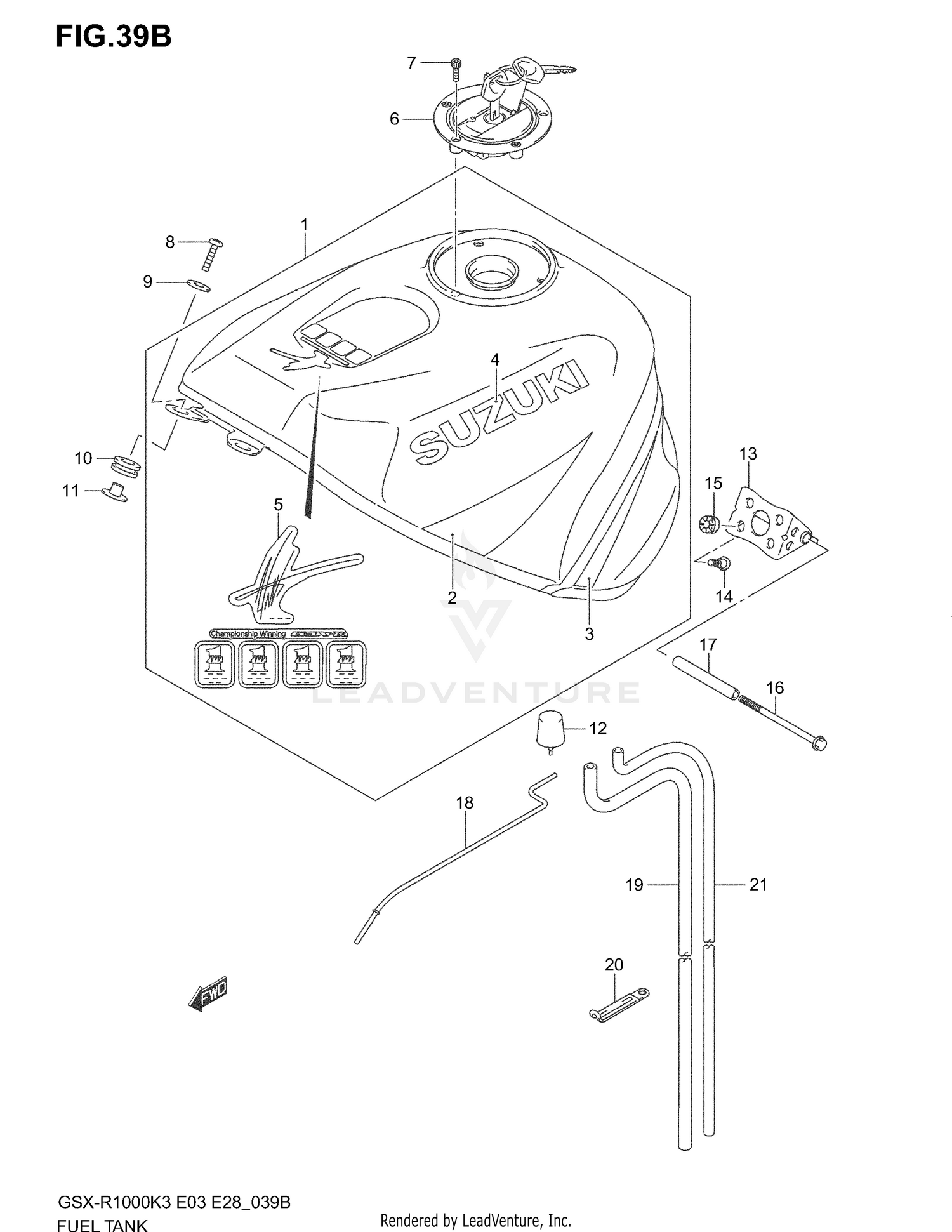

Fuel Tank (gsx-r1000zk4 E3,e33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL
44100-18GE0-LR5
|
$1,050.51 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL
44100-18GF0-LR5
|
$1,015.88 | ||
|
Unavailable |
|||
|
#2
TAPE SET, UPPER
68110-18G00-LS3
|
$61.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE SET, LOWER
68110-18G10-LS3
|
$50.32 | ||
|
Unavailable |
|||
|
#4
EMBLEM (WHITE)
68111-12C30-YBD
|
$23.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
EMBLEM, UPPER
68111-18GA0-AZU
|
$22.94 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$151.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP SET,FUEL TA
44200-16860
Superseded by 44200-16862
|
$270.25 | ||
|
Unavailable |
|||
|
#7
BOLT (5X20)
09106-05017
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FRONT
09139-06029
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,FUEL TA
44511-19F00
Superseded by 44511-19F01
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, FRONT
44512-19F00
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION,FUEL TA
44542-18G00
Superseded by 44542-18G01
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, REAR NO.1
44530-18G00
|
$30.91 | ||
|
Unavailable |
|||
|
#14
SCREW (6X22)
09139-06132
Superseded by 09139-06191
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-08071
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, JOINT
09106-06103
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER,FUEL TANK REAR
44561-18G00
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, FUEL TANK
44574-35F00
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE,WATER DRAI
44423-16G01
Superseded by 44423-16G02
|
$17.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
09404-06431
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,FUEL TANK
44424-18G00
Superseded by 44424-18G01
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
