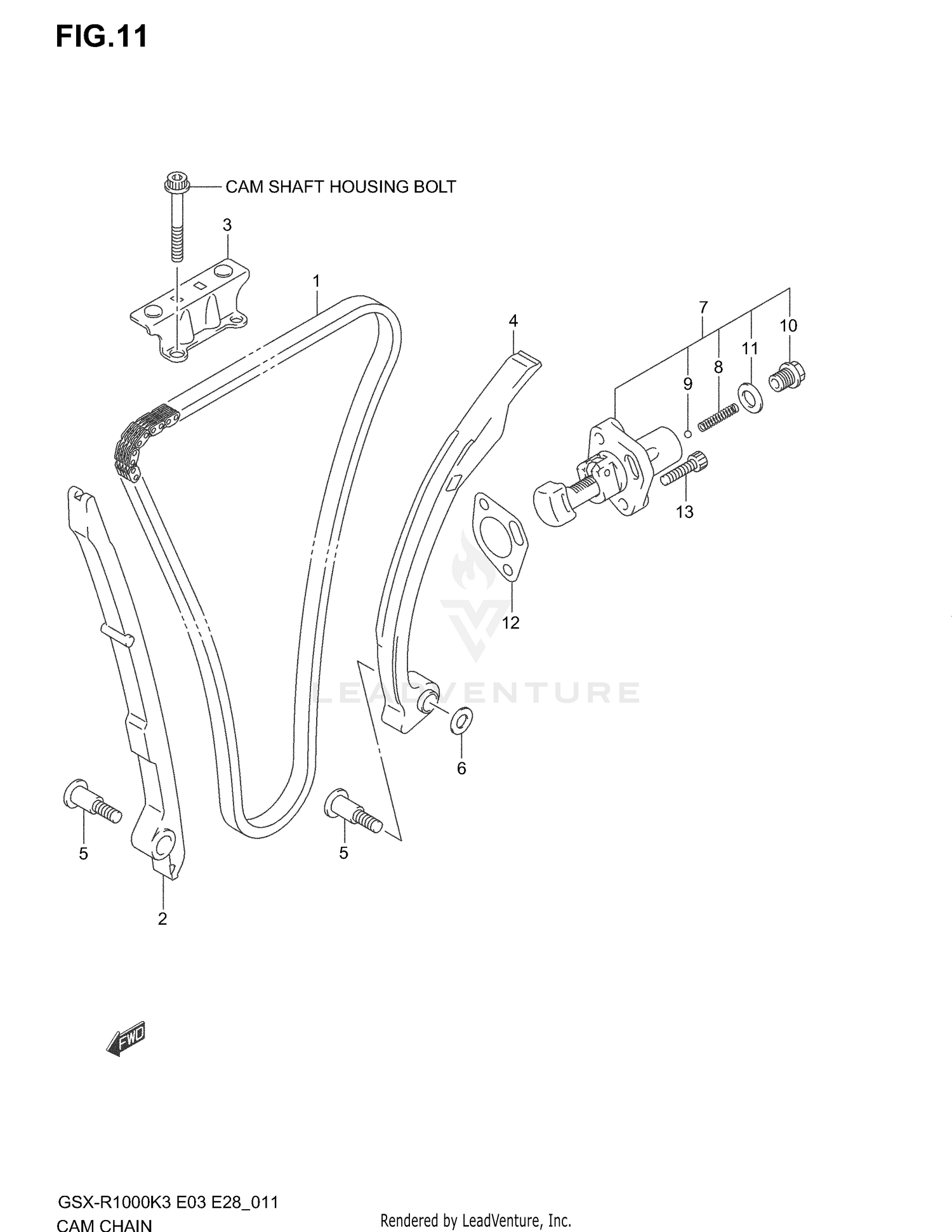

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN,CAMSHAFT DRIVE
12760-40F00
Superseded by 12760-40F01
|
$197.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-18G00
Superseded by 12771-40F02
|
$53.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CAM CHAIN NO.2
12782-35F10
Superseded by 12782-35F11
|
$30.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER,CAM C
12811-40F00
Superseded by 12811-40F01
|
$66.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
12812-26B02
|
$9.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER
12813-30G00
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
ADJUSTER ASSY,T
12830-18G00
Superseded by 12830-18G01
|
$328.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
12831-40F00
|
$4.92 | ||
|
Unavailable |
|||
|
#9
BALL
12839-35F00
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG
12833-05A00
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
12837-24F10
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, ADJUSTER
12837-18G00
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
07130-06253
Superseded by 07130-0625B
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
