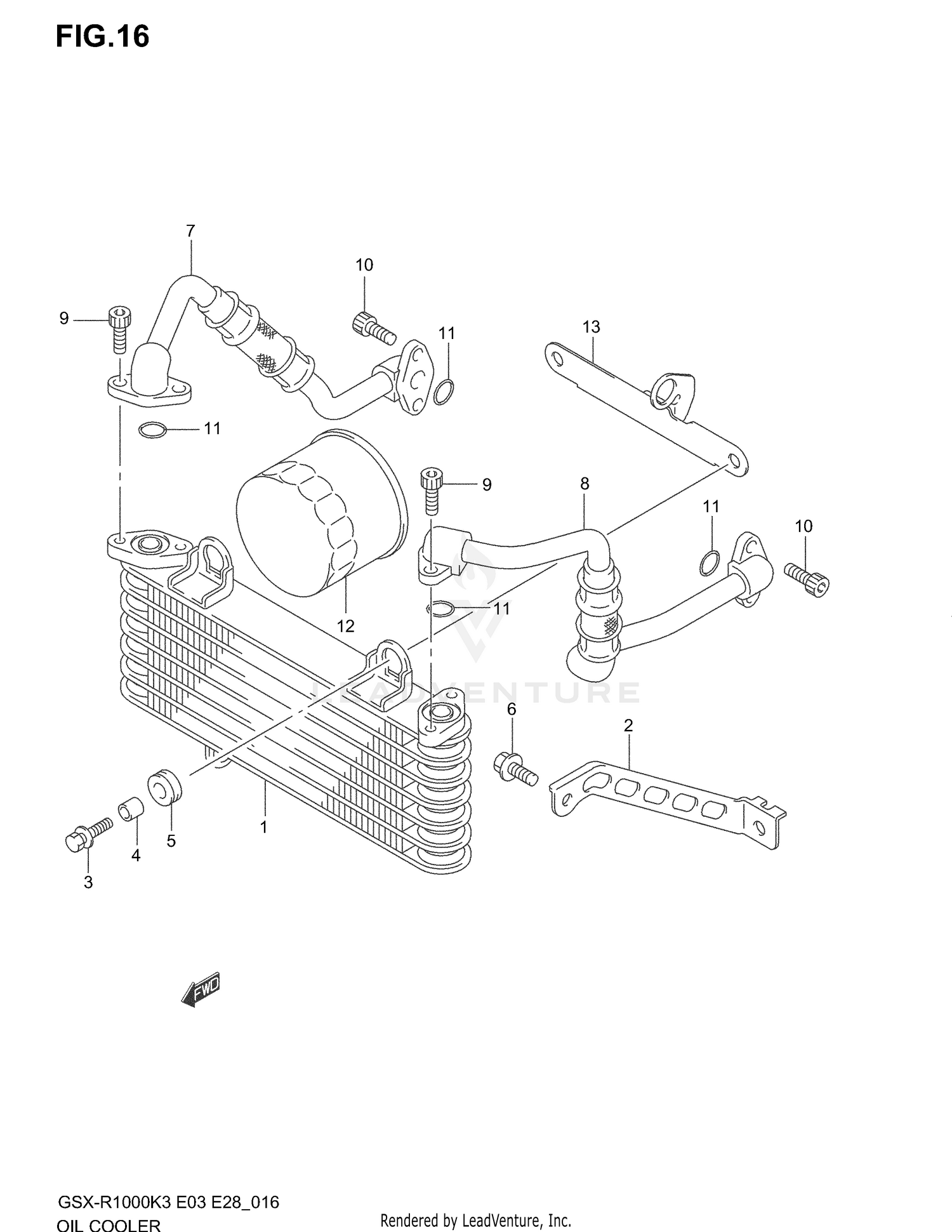

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY, OIL
16600-40F10
|
$1,011.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, OIL COOLER
16640-40F00
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER
09180-06310
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION (10X20X10)
09320-10015
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09320-09009
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
HOSE, OIL COOLER RH
16460-40F10
|
$169.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, OIL COOLER LH
16470-40F10
|
$130.09 | ||
|
Unavailable |
|||
|
#9
BOLT
09106-06096
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, CRANKCASE LOWER
09106-06073
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (D:2.4,ID:11.8)
09280-12012
|
$5.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FILTER ASSY,ENGINE OIL
16510-03G00-X07
Superseded by 16510-07J10
|
$16.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BRACKET COMP, RADIATOR SUPPORT
17790-18G00
|
$18.14 | ||
|
Unavailable |
|||
