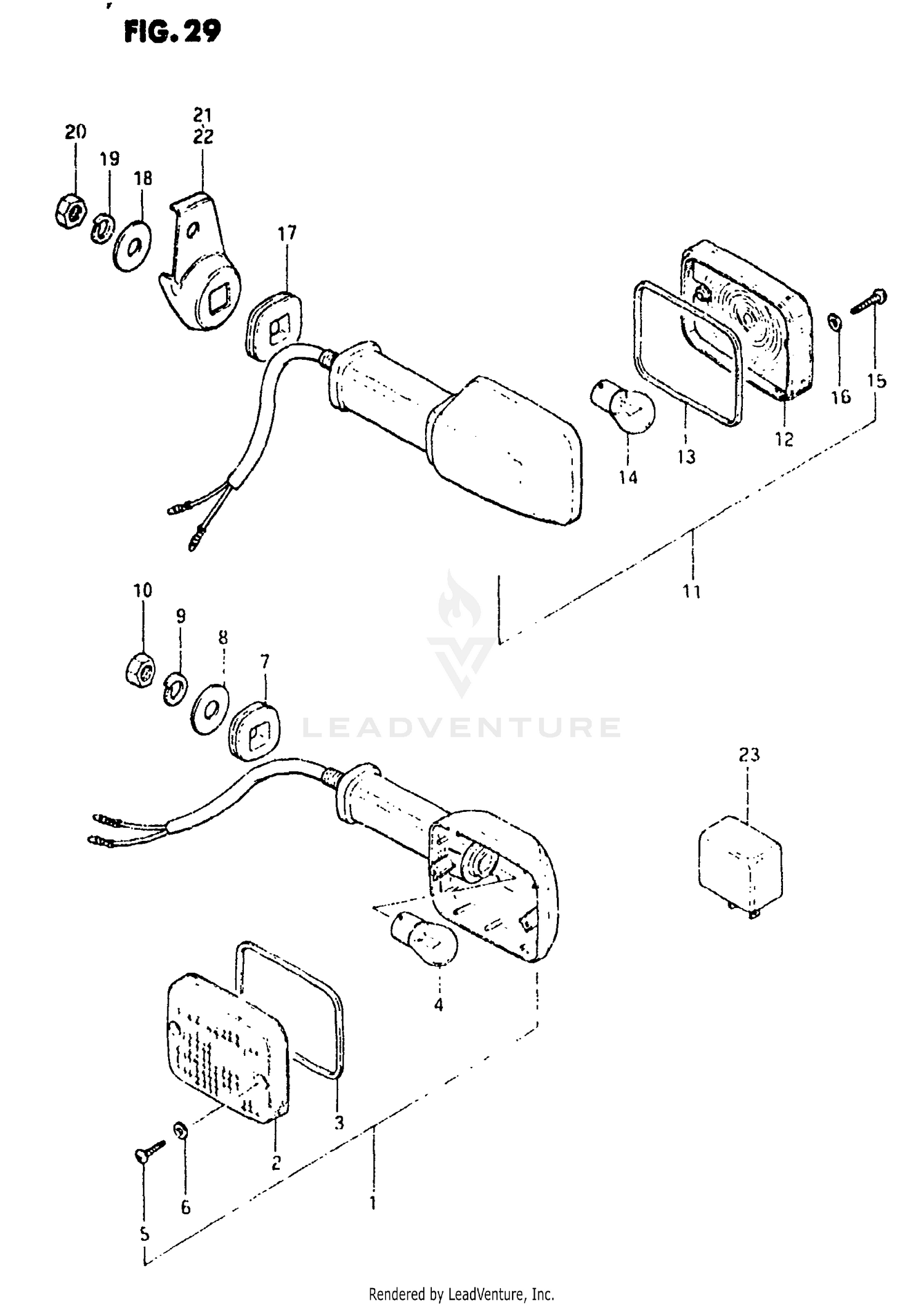

Turn Signal Lamp (model Z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
35601-45130
Superseded by 35603-45131
|
$102.51 | ||
|
Unavailable |
|||
|
#2
LENS
35612-49231
|
$20.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35613-49230
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V,23W)
09471-12006
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
03211-04208
Superseded by 03211-04207
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
35627-43010
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-15002
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, UPPER, OUTER
09160-10006
Superseded by 09160-10501
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08310-12108
Superseded by 08310-00107
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
NO DESCRIPTION AVAILABLE
35601-45130
Superseded by 35603-45131
|
$102.51 | ||
|
Unavailable |
|||
|
#12
LENS
35612-49231
|
$20.04 | ||
|
Unavailable |
|||
|
#13
GASKET
35613-49230
|
$6.08 | ||
|
Unavailable |
|||
|
#14
BULB (12V,23W)
09471-12006
|
$5.08 | ||
|
Unavailable |
|||
|
#15
SCREW
03211-04208
Superseded by 03211-04207
|
$1.63 | ||
|
Unavailable |
|||
|
#16
GASKET
35627-43010
|
$2.68 | ||
|
Unavailable |
|||
|
#17
CUSHION
09320-15002
|
$5.26 | ||
|
Unavailable |
|||
|
#18
WASHER, UPPER, OUTER
09160-10006
Superseded by 09160-10501
|
$2.81 | ||
|
Unavailable |
|||
|
#19
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Unavailable |
|||
|
#20
NUT
08310-12108
Superseded by 08310-00107
|
$2.72 | ||
|
Unavailable |
|||
|
#21
BRACKET, REAR RH
35620-33200
Superseded by 35620-33201
|
$8.61 | ||
|
Unavailable |
|||
|
#22
BRACKET, REAR LH
35640-33200
Superseded by 35640-33201
|
$8.61 | ||
|
Unavailable |
|||
|
#23
RELAY ASSY,TURN SIGNAL
38610-45031
Superseded by 38610-31X50
|
$90.47 | ||
|
Available to order. Add to View Price |
|||
