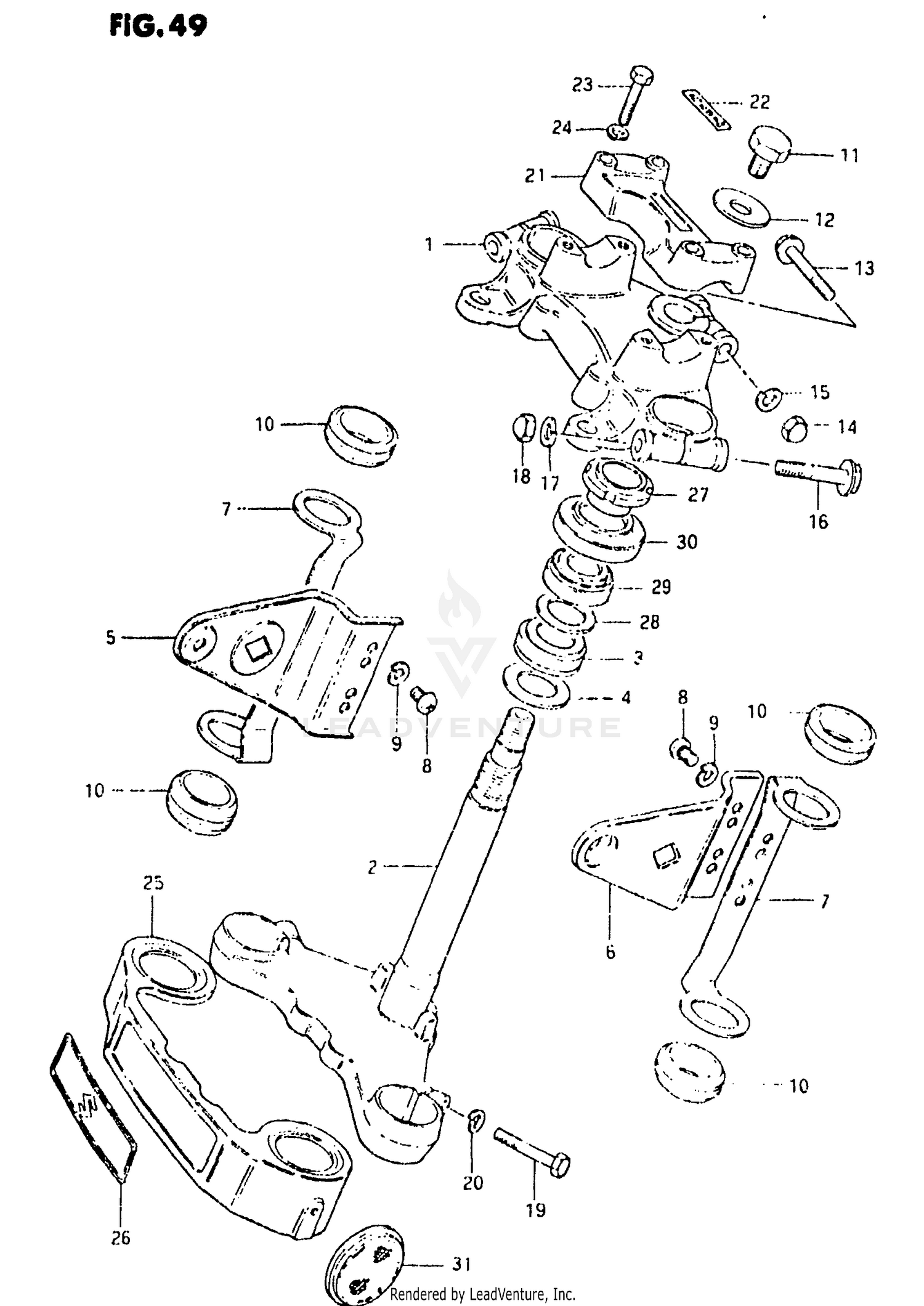

Steering Stem (model Z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEM HEAD, STEERING
51311-34200-291
|
$87.06 | ||
|
Unavailable |
|||
|
#2
STEERING STEM SET
51401-34810
Superseded by 51400-44870
|
$179.23 | ||
|
Unavailable |
|||
|
#3
RT 30X55X17 BEA
09265-30005
Superseded by 09265-30034
|
$72.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM, 30X40X1.5
08211-30402
Superseded by 09181-30184
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
NO DESCRIPTION AVAILABLE
51530-34220-291
Superseded by 51500-34820-291
|
$38.10 | ||
|
Unavailable |
|||
|
#6
BRACKET, HEADLAMP LH
51540-34220-291
|
$13.45 | ||
|
Unavailable |
|||
|
#7
FRAME, HEADLAMP
51531-34210-291
|
$22.34 | ||
|
Unavailable |
|||
|
#8
SCREW
02112-06085
Superseded by 02112-06087
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,LOCK
08321-31068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CUSHION,HEADLAMP HSG BRACKET
51553-47000
Superseded by 51553-34280
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
09104-12013
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (12.5X26X1.6)
09160-12006
Superseded by 09160-12089
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, LH
01517-08508
Superseded by 01550-08507
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08313-11085
Superseded by 08313-1008B
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,LOCK
08321-21085
Superseded by 08321-0108A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01517-10558
Superseded by 01550-10557
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
LOCK WASHER
08321-31108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09145-10002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01107-10408
Superseded by 01500-10407
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Unavailable |
|||
|
#21
CLAMP, HANDLEBAR UPPER
56211-45400-291
|
$32.64 | ||
|
Unavailable |
|||
|
#22
EMBLEM
56212-45400
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01204-08357
|
$2.63 | ||
|
Available to order. Add to View Price |
|||
|
#24
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
COVER, FRONT FORK
51871-34501
|
$25.86 | ||
|
Unavailable |
|||
|
#26
EMBLEM
68211-34500
|
$8.95 | ||
|
Unavailable |
|||
|
#27
NUT, STEERING STEM
51631-34200
|
$19.97 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
09160-18002
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
09265-25008
|
$28.88 | ||
|
Unavailable |
|||
|
#30
SEAL,DUST
51643-40501
Superseded by 51643-40503
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#31
REFLEX REFLECTOR, FRONT
35950-49080
|
$22.90 | ||
|
Available to order. Add to View Price |
|||
