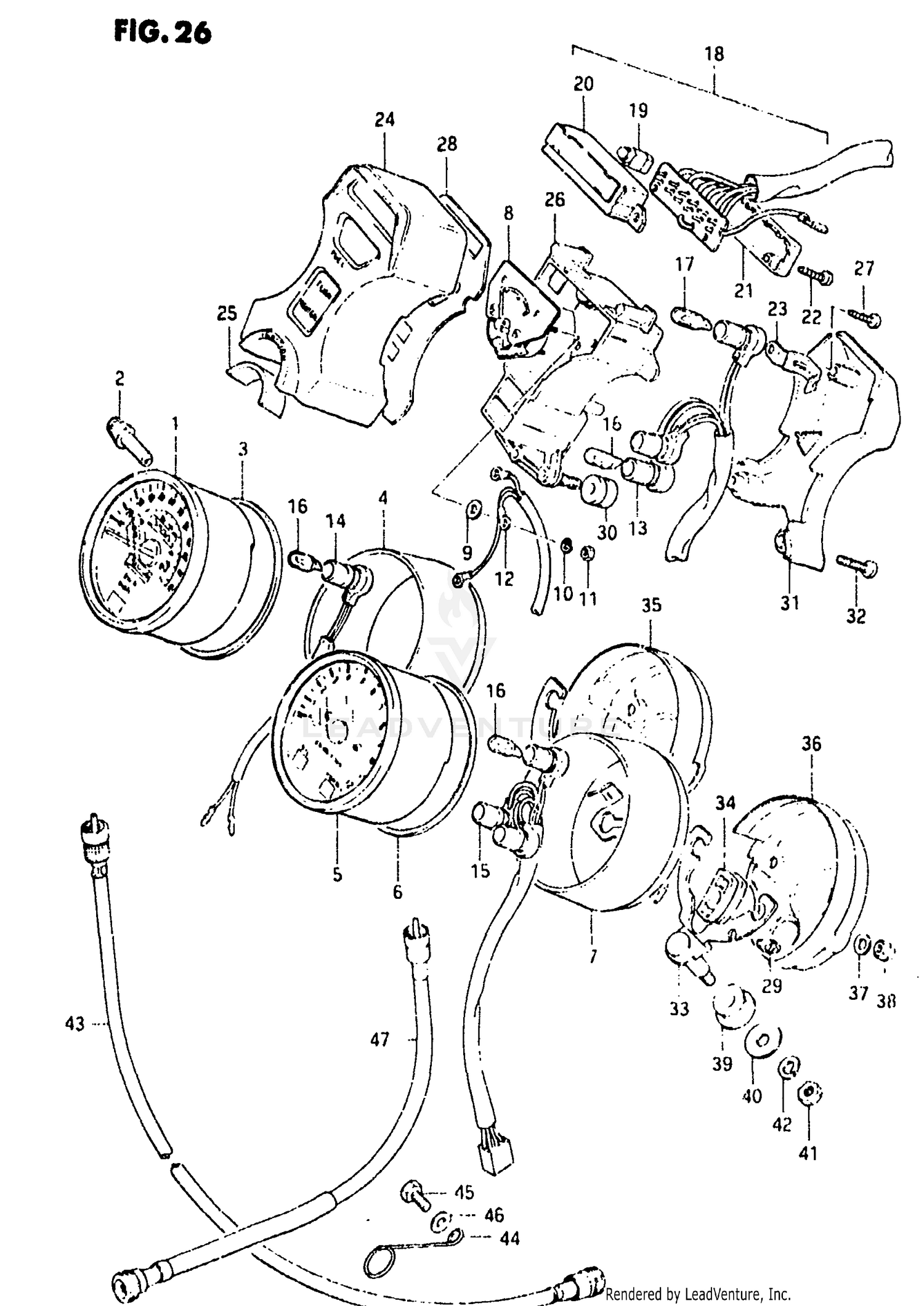

Speedometer - Tachometer (model Z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER
34110-47460
|
$192.97 | ||
|
Unavailable |
|||
|
#2
KNOB
34980-45020
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION
34189-33220
Superseded by 34189-45300
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SPEEDOMETER
34151-33220
|
$13.31 | ||
|
Unavailable |
|||
|
#5
TACHOMETER
34210-34570
Superseded by 34210-45360
|
$408.50 | ||
|
Unavailable |
|||
|
#6
CUSHION
34189-33220
Superseded by 34189-45300
|
$12.91 | ||
|
Unavailable |
|||
|
#7
COVER, TACHOMETER
34251-33220
|
$13.31 | ||
|
Unavailable |
|||
|
#8
FUELMETER
34320-33220
|
$75.20 | ||
|
Unavailable |
|||
|
#9
WASHER
34384-33220
|
$1.19 | ||
|
Unavailable |
|||
|
#10
WASHER,LOCK
08321-21038
Superseded by 09162-03001
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08310-11038
Superseded by 08310-0003B
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEAD WIRE, FUELMETER
34378-33220
Superseded by 34378-45410
|
$16.75 | ||
|
Unavailable |
|||
|
#13
SOCKET, PILOT LAMP
36325-33200
|
$29.63 | ||
|
Unavailable |
|||
|
#14
SOCKET, SPEEDOMETER
34173-34520
Superseded by 34173-45630
|
$28.48 | ||
|
Unavailable |
|||
|
#15
SOCKET, TACHOMETER
34273-33220
|
$33.36 | ||
|
Unavailable |
|||
|
#16
BULB (12V,3.4W)
09471-12028
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
BULB (12V,1.7W)
09471-12077
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
INDICATOR, GEAR POSITION
36450-45101
Superseded by 36450-49401
|
$93.06 | ||
|
Unavailable |
|||
|
#19
BULB
09471-12071
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#20
CASE, GEAR INDICATOR
36452-45100
|
$16.11 | ||
|
Unavailable |
|||
|
#21
COVER, LOWER
36454-45100
|
$7.68 | ||
|
Unavailable |
|||
|
#22
NO DESCRIPTION AVAILABLE
36456-45100
Superseded by 03511-03146
|
$1.18 | ||
|
Unavailable |
|||
|
#23
CLAMP
36494-33220
|
$2.63 | ||
|
Unavailable |
|||
|
#24
CASE, PILOT BOX
36381-33220
|
$84.85 | ||
|
Unavailable |
|||
|
#25
SEAL
34993-47000
|
$2.63 | ||
|
Unavailable |
|||
|
#26
BOX, PILOT
36382-33220
|
$37.53 | ||
|
Unavailable |
|||
|
#27
SCREW
36456-33220
Superseded by 35625-01A00
|
$1.35 | ||
|
Unavailable |
|||
|
#28
PANEL
36386-33220
|
$16.74 | ||
|
Unavailable |
|||
|
#29
CUSHION
34191-44310
|
$1.57 | ||
|
Unavailable |
|||
|
#30
CUSHION
36384-45300
|
$2.59 | ||
|
Unavailable |
|||
|
#31
COVER, PILOT BOX
36383-33220
|
$19.53 | ||
|
Unavailable |
|||
|
#32
SCREW
02112-04168
Superseded by 02112-0416A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRAKCET
34950-47450
|
$39.35 | ||
|
Unavailable |
|||
|
#34
NO DESCRIPTION AVAILABLE
34189-44310
Superseded by 34189-44311
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#35
NO DESCRIPTION AVAILABLE
34193-33220
Superseded by 34193-33221
|
$40.31 | ||
|
Unavailable |
|||
|
#36
NO DESCRIPTION AVAILABLE
34293-33220
Superseded by 34293-33221
|
$43.41 | ||
|
Unavailable |
|||
|
#37
WASHER
08322-21058
Superseded by 08322-01057
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
08313-11057
Superseded by 08313-1005A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#39
CUSHION
34956-31001
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, EXHAUST SUPPORT
09160-08002
Superseded by 09160-08135
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT
08310-12088
Superseded by 08310-00087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
CABLE SPEEDOMET
34910-47311
Superseded by 34910-44401
|
$33.11 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP
34938-45100
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
CABLE ASSY,TACH
34940-47032
Superseded by 34940-47034
|
$29.84 | ||
|
Available to order. Add to View Price |
|||
