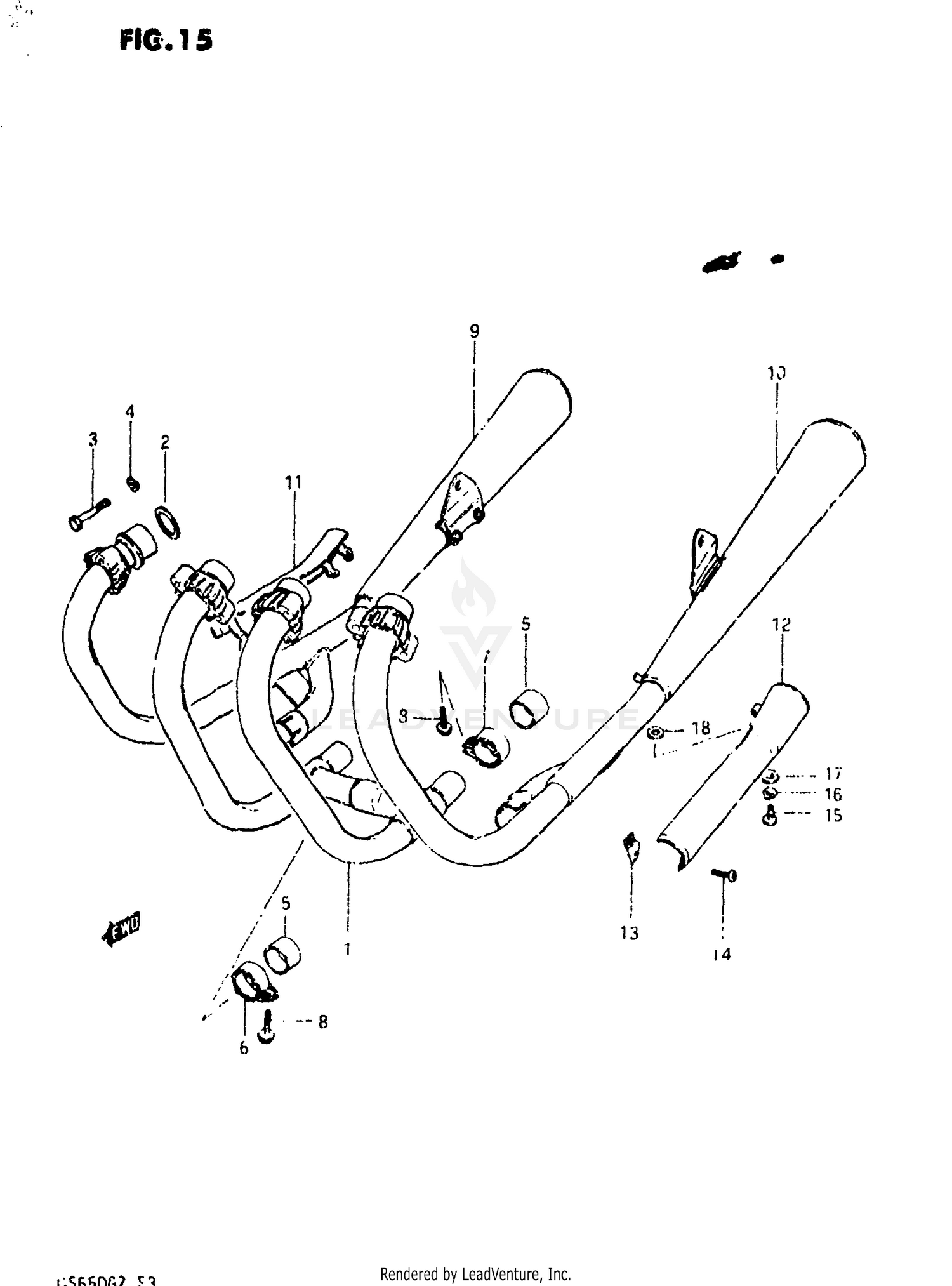

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST CENTER
14100-34200
|
$257.78 | ||
|
Unavailable |
|||
|
#2
.GASKET,EXHAUST
14181-05010
Superseded by 14181-18C00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01107-08408
Superseded by 01500-0840A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CONNECTOR,MUFLR
14771-47010
Superseded by 14771-47020-H17
|
$32.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, CONNECTOR RH
14459-34200
|
$13.04 | ||
|
Unavailable |
|||
|
#7
CLAMP, CONNECTOR LH
14469-34200
|
$12.66 | ||
|
Unavailable |
|||
|
#8
BOLT
01517-08258
Superseded by 01550-08257
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
NO DESCRIPTION AVAILABLE
14301-34200
Superseded by 14301-34203-H01
|
$227.48 | ||
|
Unavailable |
|||
|
#9
NO DESCRIPTION AVAILABLE
14301-34201
Superseded by 14301-34203-H01
|
$227.48 | ||
|
Unavailable |
|||
|
#10
NO DESCRIPTION AVAILABLE
14302-34200
Superseded by 14302-34203-H01
|
$203.71 | ||
|
Unavailable |
|||
|
#10
NO DESCRIPTION AVAILABLE
14302-34201
Superseded by 14302-34203-H01
|
$203.71 | ||
|
Unavailable |
|||
|
#11
COVER, RH
14780-34201
|
$31.49 | ||
|
Unavailable |
|||
|
#12
COVER, LH
14790-34201
|
$31.49 | ||
|
Unavailable |
|||
|
#13
CLAMP
14785-34200
|
$3.50 | ||
|
Unavailable |
|||
|
#14
SCREW
02112-05208
Superseded by 02112-05207
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-06128
Superseded by 02112-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GASKET,MUFFLER
09168-06005
Superseded by 09168-06105
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
