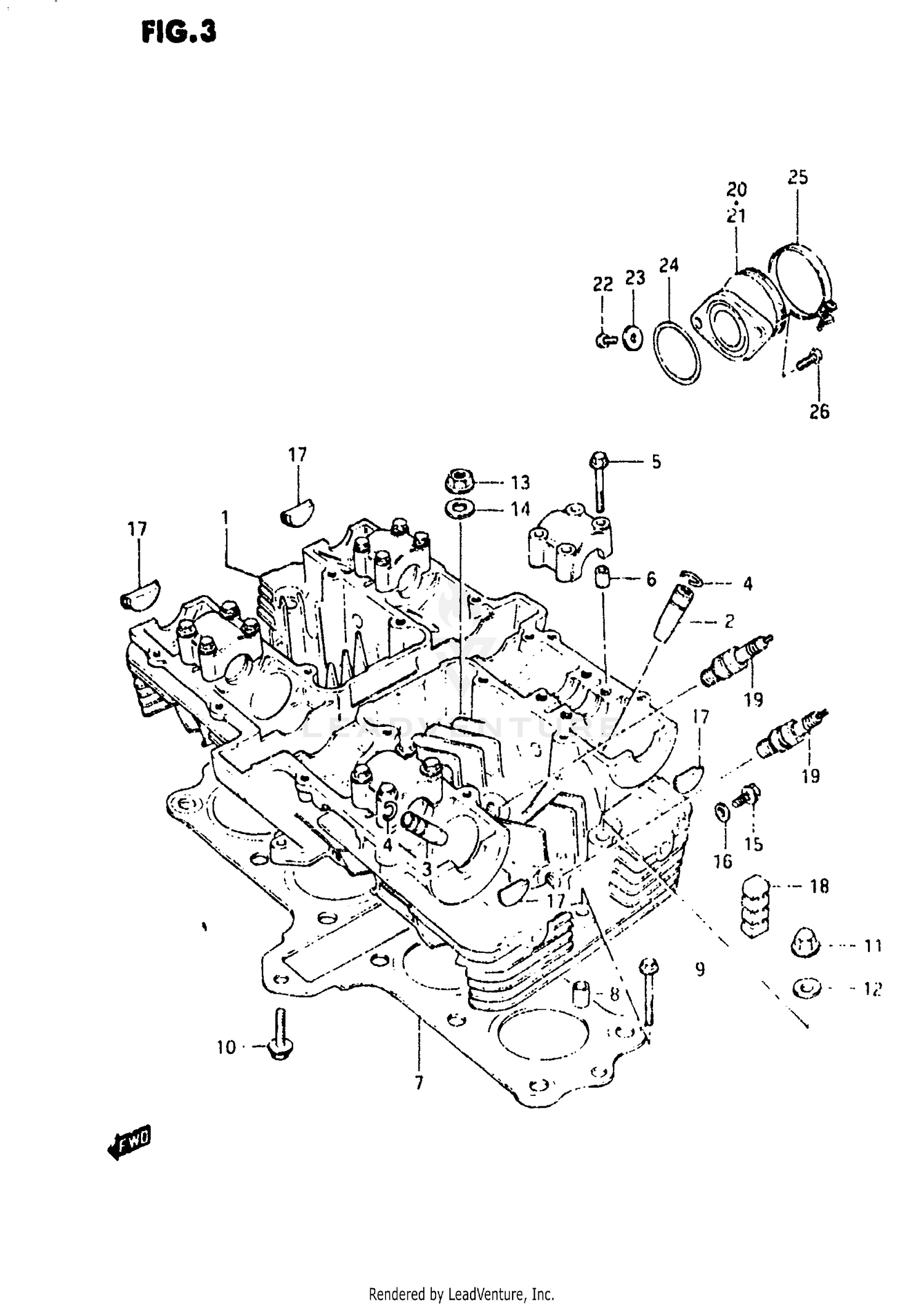

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
11100-34200
Superseded by 11100-34810
|
$683.32 | ||
|
Unavailable |
|||
|
#1
CYLINDER HEAD SET
11100-34210
|
$733.70 | ||
|
Unavailable |
|||
|
#2
GUIDE, INTAKE VALVE
11115-34270
|
$17.73 | ||
|
Unavailable |
|||
|
#3
GUIDE, EXHAUST VALVE
11116-47740
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, VALVE GUIDE
09381-10003
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X39)
09103-06026
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET SET,CYL
11141-34200
Superseded by 11140-34811
|
$154.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET SET,CYL
11141-34202
Superseded by 11140-34811
|
$154.05 | ||
|
Unavailable |
|||
|
#8
PIN
04211-11189
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (CHROME)
01517-06458
Superseded by 01550-06457
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01517-06308
Superseded by 01550-06307
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
09159-08029
|
$7.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
09168-08009
Superseded by 09168-08013
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
09159-08031
Superseded by 09159-08034
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09160-08039
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01517-06128
Superseded by 01550-06127
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET (5.8X13X1.2)
09168-06009
Superseded by 09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PLUG, CYLINDER HEAD SIDE
09241-23002
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
PAD CYLINDER
11252-36500
Superseded by 11251-36200
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (DR8EA)
09482-00144
Superseded by 09482-00399
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (X24ESR-U)
09482-00145
Superseded by 09482-00223
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE,INTAKE,R
13110-47010
Superseded by 13110-47011
|
$42.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE,INTAKE,L
13120-47010
Superseded by 13120-47011
|
$43.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, PICK UP & CLAMP
09106-05006
Superseded by 07130-0510B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
08322-21058
Superseded by 08322-01057
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
O RING
09280-38003
Superseded by 09280-38004
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
09402-50306
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
02112-06168
Superseded by 02112-06167
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
