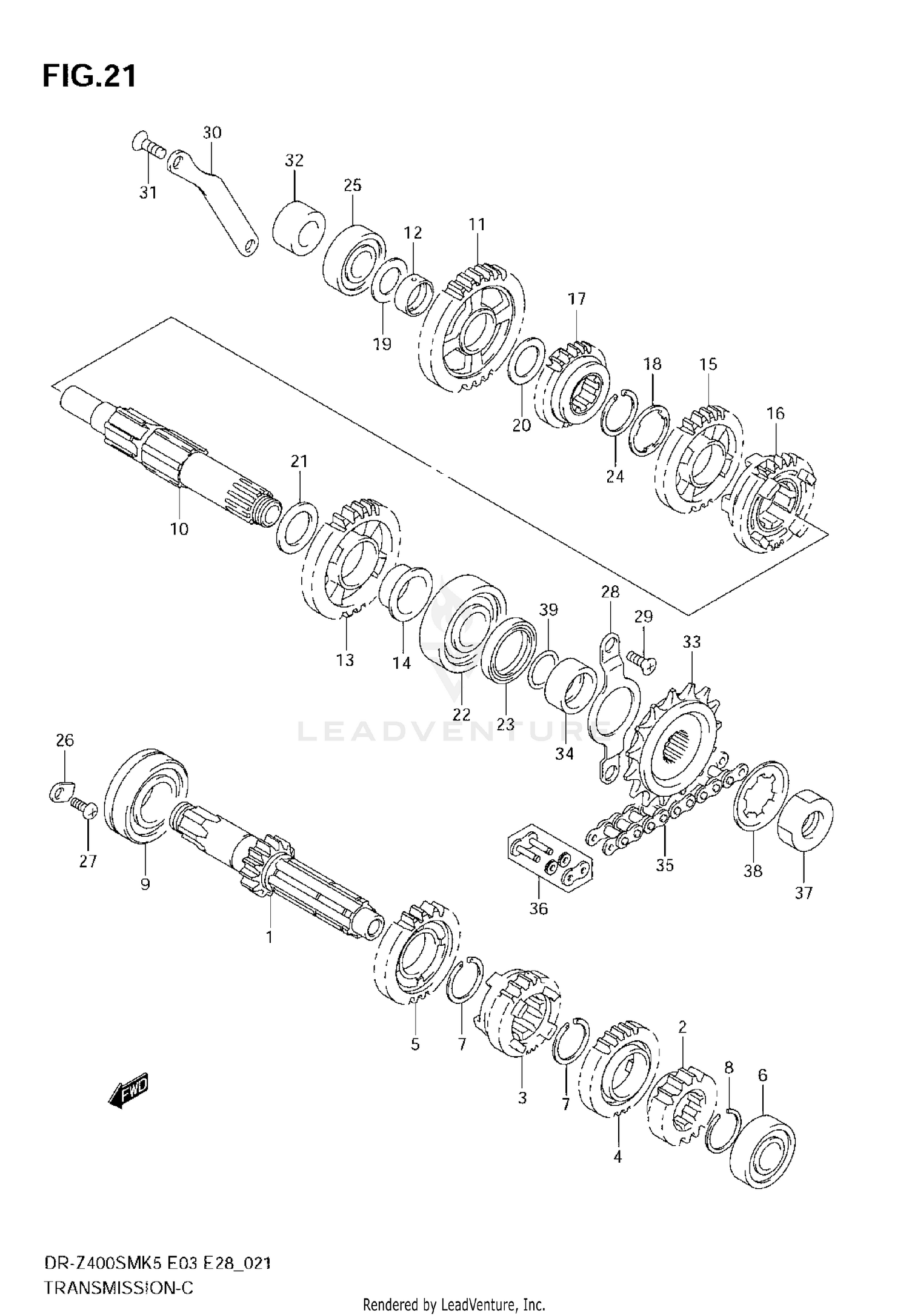

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#19
WASHER, 1ST DRIVEN RH
09181-17223
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, 1ST DRIVEN LH
09181-20195
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, 2ND DRIVEN RH
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, DRIVE SHAFT LH
09262-22024
|
$76.23 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (30X40X6)
09283-30053
|
$11.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP, 3RD DRIVEN
09380-25010
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, DRIVE SHAFT RH
09262-17023
|
$21.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
RETAINER, COUNTER SHAFT
24741-21A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
09125-06110
|
$2.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
RETAINER,DRIVE SHAFT OIL SEAL
24751-29F00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, RETAINER
09126-06007
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#30
RETAINER,KICK IDLE GEAR
26264-29F00
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, KICK IDLE
02122-0616A
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SPACER, KICK IDLE
09180-17055
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET,ENGINE
27510-29E10
Superseded by 27510-29E20
|
$37.28 | ||
|
Unavailable |
|||
|
#34
SPACER,ENGINE SPROCKET
27531-29F00
|
$30.17 | ||
|
Available to order. Add to View Price |
|||
|
#35
CHAIN ASSY,DRIVE (RK520KZO,11
27600-29F10-110
Superseded by 27600-29F30-112
|
$183.28 | ||
|
Available to order. Add to View Price |
|||
|
#36
JOINT, CHAIN
27620-29F10
|
$23.83 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, ENGINE SPROCKET
09140-18006
|
$6.06 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER,LOCK (22.5X40.3X0.8)
09167-22012
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#39
O RING (D:2.5,ID:21)
09280-21008
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHAFT,COUNTER (NT:14)
24120-05D20
|
$298.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR,2ND DRIVE (NT:15)
24221-28C20
|
$131.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR,3RD DRIVE (NT:16)
24231-05D02
|
$151.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR,4TH DRIVE (NT:22)
24241-05D01
|
$131.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR,5TH DRIVE (NT:22)
24251-05D00
|
$131.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, CENTER SHAFT LH
09262-17027
|
$37.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP, 4TH/5TH DRIVE
09380-25010
|
$3.46 | ||
|
Unavailable |
|||
|
#8
CIRCLIP, 2ND DRIVE
09380-25013
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CENTER SHAFT RH
09262-25003
|
$31.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT,DRIVE
24130-05D20
Superseded by 24130-05D21
|
$228.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR,1ST DRIVEN (NT:32)
24311-05D00
|
$139.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH,1ST DRIVEN GEAR
24312-29F00
|
$25.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR,2ND DRIVEN (NT:26)
24321-28C02
|
$137.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH,2ND DRIVEN GEAR
24322-44E10
|
$40.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR,3RD DRIVEN (NT:22)
24331-05D01
|
$141.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR,4TH DRIVEN (NT:24)
24341-05D01
|
$153.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR,5TH DRIVEN (NT:19)
24351-05D20
|
$139.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER,LOCK (25.1X31X1.0)
09167-25012
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
