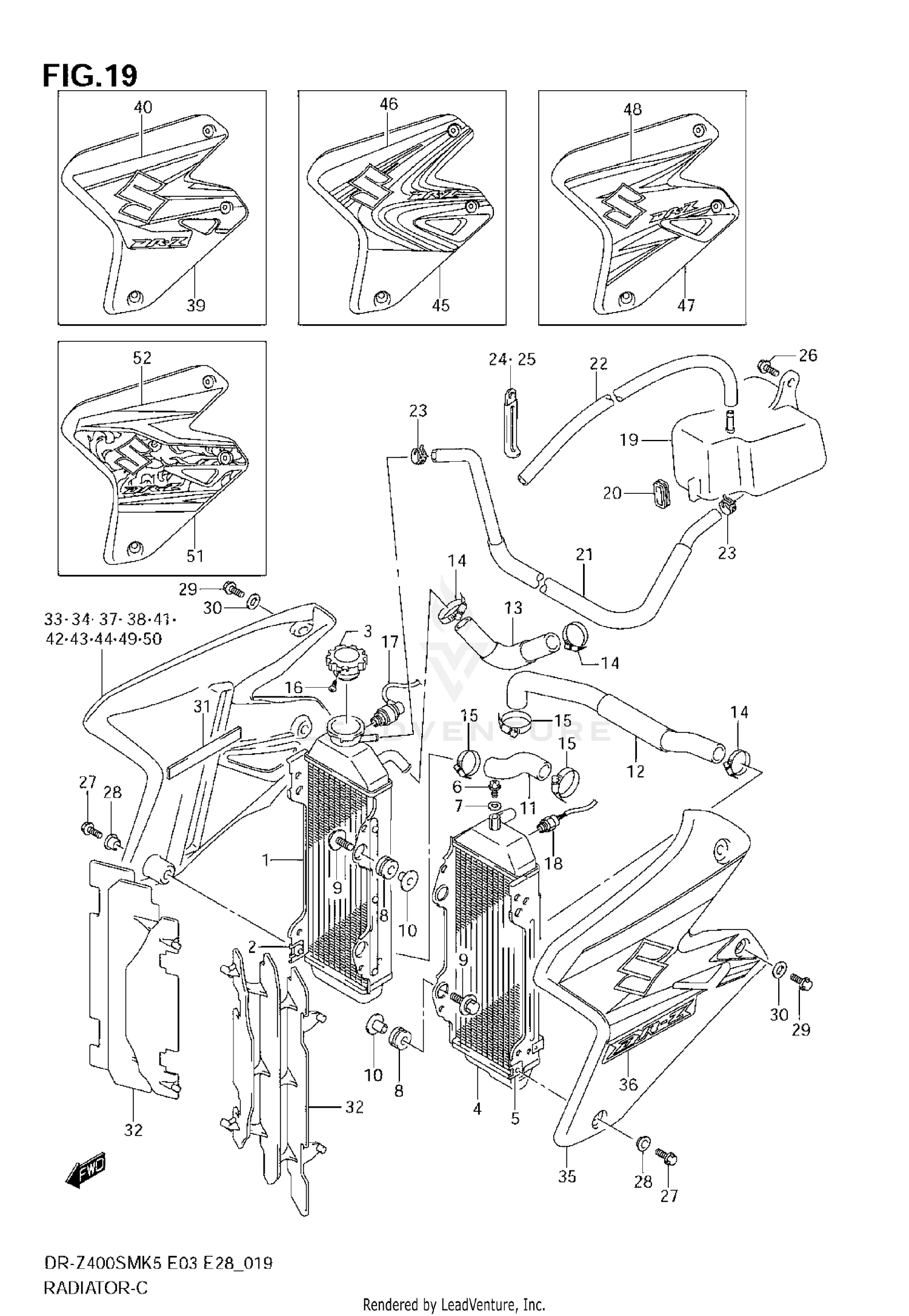

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR,WATER RH
17710-29F11
Superseded by 17710-29F40
|
$649.37 | ||
|
Available to order. Add to View Price |
|||
|
#1
RADIATOR,WATER RH
17710-29F40
|
$649.37 | ||
|
Unavailable |
|||
|
#2
.NUT
09148-06015
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,RADIATOR (1.1)
17730-19D11
|
$54.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
RADIATOR,WATER LH
17720-29F12
Superseded by 17720-29F40
|
$675.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
RADIATOR,WATER LH
17720-29F40
|
$675.00 | ||
|
Unavailable |
|||
|
#5
.NUT
09148-06015
|
$3.81 | ||
|
Unavailable |
|||
|
#6
UNION,AIR VENT
17568-50F00
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET (6.4X11.5X0.8)
09168-06026
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CUSHION,RADIATOR,LOWER
17787-19A00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X25)
09116-06147
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
09180-06243
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE,RDTR INLET
17851-29F10
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE,RADIATOR OUTLET
17852-29F30
|
$56.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE,RDTR JOINT
17853-29F10
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
09402-28513
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09402-32512
|
$13.97 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,RADIATOR CAP
17733-03D10
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY, WATER TEMP
34850-03D00
|
$134.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY, WATER TEMP
34850-29F00
|
$140.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH,FAN
17680-24A30
|
$139.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
TANK,RESERVOIR
17911-29F11
|
$64.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION,RESERVOIR TANK
17913-29F00
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,RESERVOIR TANK,INLET
17981-29F01
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, OVERFLOW
09352-50901-00B
|
$34.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
09401-08411
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP (L:45)
09404-08205
Superseded by 09404-08211
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP, RESERVOIR INLET HOSE
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#26
BOLT
01550-0612B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, RADIATOR SIDE
09103-06274
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
09169-06053
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TANK SIDE
09103-06275
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER (6.5X14X1.6)
09160-06125
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION,TOOL HOLDER
47451-38A01
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#32
LOUVER,RADIATOR
17831-37E11
|
$24.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, RADIATOR RH (BLACK)
17760-29F80-019
|
$253.43 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, RADIATOR RH (YELLOW)
17760-29F70-YU1
|
$205.04 | ||
|
Available to order. Add to View Price |
|||
|
#34
TAPE, RADIATOR COVER RH
68665-29F80-BYL
|
$185.46 | ||
|
Available to order. Add to View Price |
|||
|
#34
TAPE, RADIATOR COVER RH
68665-29F70-YHB
|
$137.95 | ||
|
Unavailable |
|||
|
#35
COVER, RADIATOR LH (BLACK)
17770-29F80-019
|
$181.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, RADIATOR LH (YELLOW)
17770-29F70-YU1
|
$240.80 | ||
|
Available to order. Add to View Price |
|||
|
#36
TAPE, RADIATOR COVER LH
68675-29F80-BYL
|
$185.46 | ||
|
Unavailable |
|||
|
#36
TAPE, RADIATOR COVER LH
68675-29F70-YHB
|
$129.24 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, RADIATOR RH (BLACK)
17760-29F90-019
|
$179.48 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, RADIATOR RH (YELLOW)
17760-29F90-YU1
|
$179.48 | ||
|
Available to order. Add to View Price |
|||
|
#38
TAPE, RADIATOR COVER RH
68665-29F90-CNN
|
$161.03 | ||
|
Unavailable |
|||
|
#38
TAPE, RADIATOR COVER RH
68665-29F90-CET
|
$187.82 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, RADIATOR LH (BLACK)
17770-29F90-019
|
$257.51 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, RADIATOR LH (YELLOW)
17770-29F90-YU1
|
$257.51 | ||
|
Available to order. Add to View Price |
|||
|
#40
TAPE, RADIATOR COVER LH
68675-29F90-CNN
|
$199.26 | ||
|
Available to order. Add to View Price |
|||
|
#40
TAPE, RADIATOR COVER LH
68675-29F90-CET
|
$173.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER, RADIATOR RH (BLACK)
17760-29FB0-019
|
$145.91 | ||
|
Unavailable |
|||
|
#41
COVER, RADIATOR RH (BLUE)
17760-29FB0-YLW
|
|||
|
Unavailable |
|||
|
#42
TAPE, RADIATOR COVER RH
68665-29FB0-DVU
|
$79.01 | ||
|
Unavailable |
|||
|
#42
TAPE, RADIATOR COVER RH
68665-29FB0-DVV
|
|||
|
Unavailable |
|||
|
#43
COVER, RADIATOR RH (YELLOW)
17760-29FA0-YU1
|
$237.45 | ||
|
Available to order. Add to View Price |
|||
|
#44
TAPE, RADIATOR COVER RH
68665-29FA0-DRA
|
$87.58 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER, RADIATOR LH (BLACK)
17770-29FB0-019
|
$204.25 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER, RADIATOR LH (BLUE)
17770-29FB0-YLW
|
|||
|
Unavailable |
|||
|
#46
TAPE, RADIATOR COVER LH
68675-29FB0-DVU
|
$108.47 | ||
|
Available to order. Add to View Price |
|||
|
#46
TAPE, RADIATOR COVER LH
68675-29FB0-DVV
|
|||
|
Unavailable |
|||
|
#47
COVER, RADIATOR LH (YELLOW)
17770-29FA0-YU1
|
$201.30 | ||
|
Available to order. Add to View Price |
|||
|
#48
TAPE, RADIATOR COVER LH
68675-29FA0-DRA
|
$87.58 | ||
|
Available to order. Add to View Price |
|||
|
#49
COVER, RADIATOR RH (WHITE)
17760-29FE0-30H
|
$253.12 | ||
|
Available to order. Add to View Price |
|||
|
#49
COVER, RADIATOR RH (BLACK)
17760-29FF0-019
|
$156.34 | ||
|
Unavailable |
|||
|
#50
TAPE, RADIATOR COVER RH
68665-29FE0-FCS
|
$68.48 | ||
|
Unavailable |
|||
|
#50
TAPE, RADIATOR COVER RH
68665-29FF0-FCN
|
$68.48 | ||
|
Unavailable |
|||
|
#51
COVER, RADIATOR LH (WHITE)
17770-29FE0-30H
|
$214.58 | ||
|
Available to order. Add to View Price |
|||
|
#51
COVER, RADIATOR LH (BLACK)
17770-29FF0-019
|
$214.58 | ||
|
Available to order. Add to View Price |
|||
|
#52
TAPE, RADIATOR COVER LH
68675-29FE0-FCS
|
$67.11 | ||
|
Unavailable |
|||
|
#52
TAPE, RADIATOR COVER LH
68675-29FF0-FCN
|
$67.11 | ||
|
Unavailable |
|||
