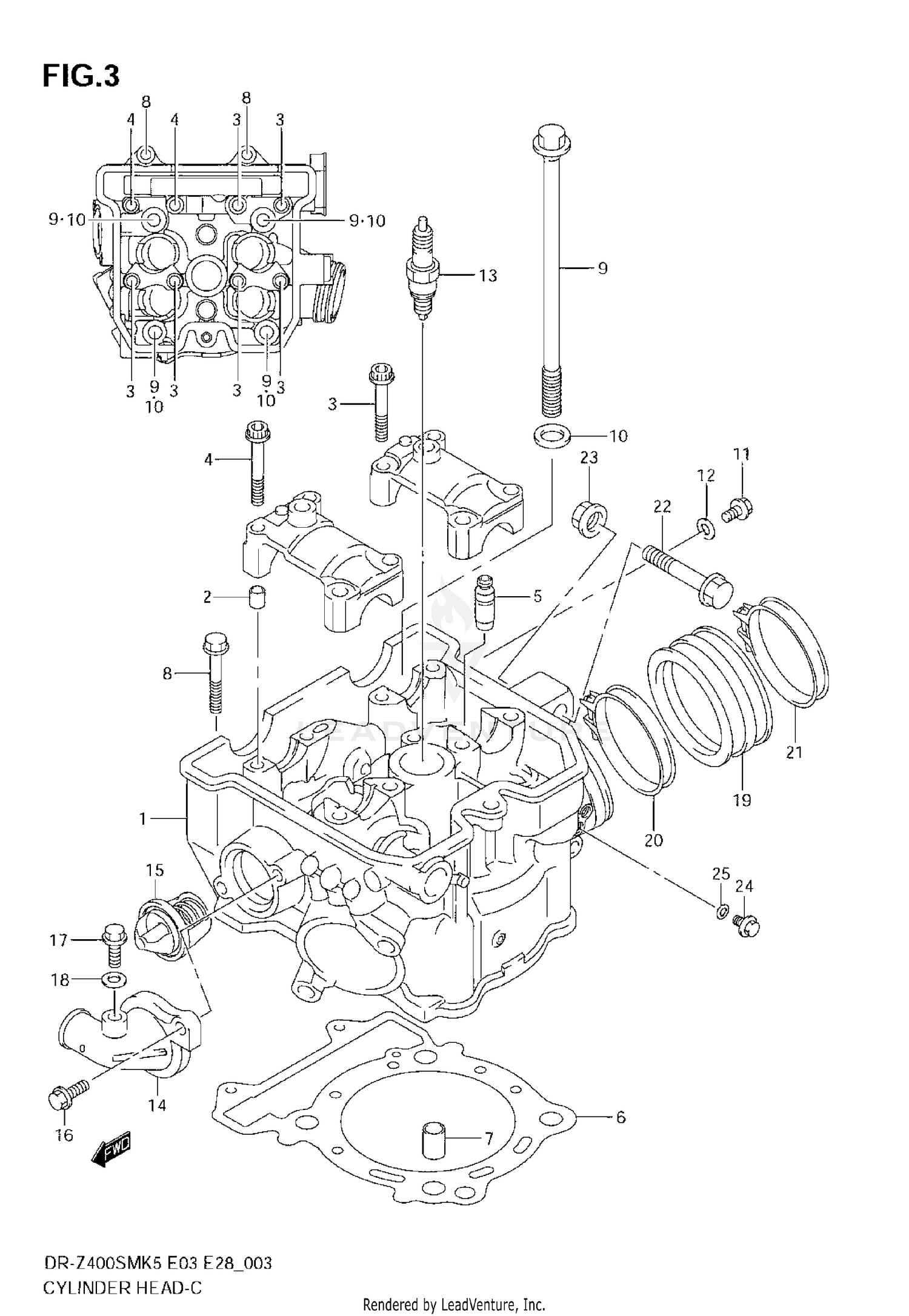

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-29F11
|
$1,196.32 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07120-0640B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
07120-0645B
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE,VALVE (OS:0.3)
11115-20E70
|
$42.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,CYLINDER HEAD
11141-29F01
|
$53.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN (L:18)
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT (6X39)
09103-06504
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (10X175)
09103-10276
|
$20.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (10.5X19X2)
09160-10082
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, OIL GALLERY
01550-0610B
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPARK PLUG (NGK,CR8E)
09482-00456
|
$8.32 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (NGK,CR7E)
09482-00516
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (CR9E)
09482-00458
|
$7.99 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (NGK,CR10E)
09482-00460
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DENSO,U22ESR-N)
09482-00515
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DENSO,U27ESR-N)
09482-00459
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DENSO,U31ESR-N)
09482-00461
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, THERMOSTAT
17661-29F10
|
$51.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
.THERMOSTAT,WATER
17670-33400
Superseded by 17670-33401
|
$45.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0616B
|
$3.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
UNION,AIR VENT
17568-50F00
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET (6.4X11.5X0.8)
09168-06026
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIPE INTAKE
13111-29F10
Superseded by 13111-29F11
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
.CLAMP
09402-58208
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
.CLAMP
09402-52208
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (10X50)
09103-10235
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT
09159-10115
|
$4.46 | ||
|
Unavailable |
|||
|
#24
BOLT (8X9.5)
09103-08335
Superseded by 09103-08421
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
