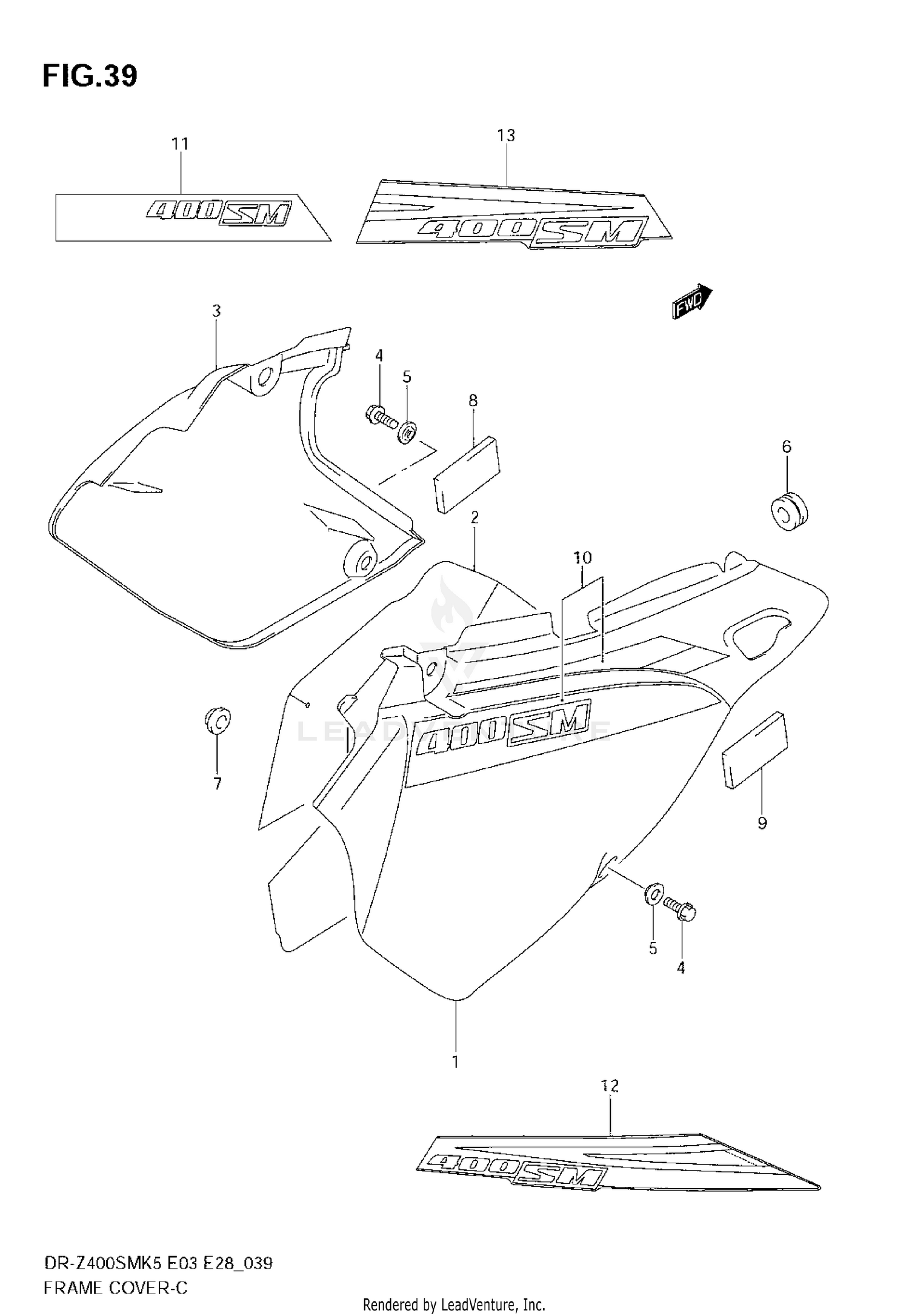

Frame Cover (model K5/k6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FRAME RH(BLACK)
47111-29F10-019
Superseded by 47111-29FC0-019
|
$121.19 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER,FRAME RH(WHITE)
47111-29F10-30H
Superseded by 47111-29FC0-30H
|
$64.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIELD,FRAME COVER RH
47166-29F00
|
$93.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,FRAME LH (BLACK)
47211-29F10-019
Superseded by 47211-29FA0-019
|
$90.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,FRAME LH(WHITE)
47211-29F10-30H
Superseded by 47211-29FA0-30H
|
$64.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,FRAME LH(BLACK)
47211-29F30-019
Superseded by 47211-29FC0-019
|
$93.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,FRAME LH(WHITE)
47211-29F30-30H
Superseded by 47211-29FC0-30H
|
$93.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X12)
09103-06273
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
09169-06028
Superseded by 09169-06041
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CUSHION
09320-06504
|
$6.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CUSHION
09321-10018
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,FRAME COVER LH
47161-29F00
|
$8.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
71762-65G10
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
TAPE SET, RH
68130-29F20-BYK
|
$25.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
TAPE SET, RH
68130-29F20-CAH
|
$21.00 | ||
|
Unavailable |
|||
|
#11
TAPE SET, LH
68140-29F00-BYK
|
$21.00 | ||
|
Unavailable |
|||
|
#11
TAPE SET, LH
68140-29F00-CAH
|
$20.58 | ||
|
Unavailable |
|||
|
#12
TAPE, RH
68135-29F00-CNS
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
TAPE, RH
68135-29F00-CNP
|
$24.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
TAPE, LH
68145-29F00-CNS
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
TAPE, LH
68145-29F00-CNP
|
$17.83 | ||
|
Available to order. Add to View Price |
|||
