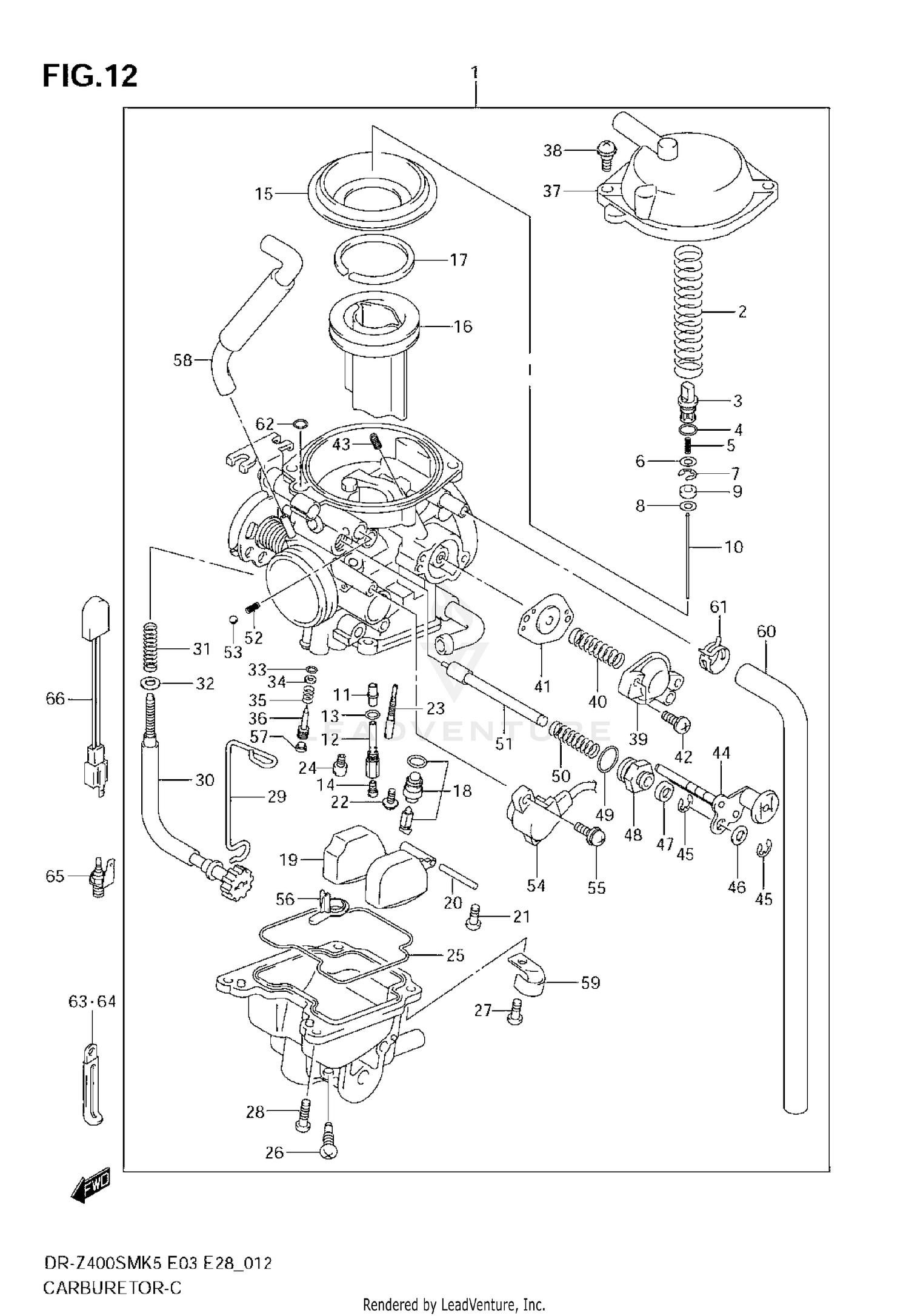

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-29FB2
Superseded by 13200-29FB4
|
$848.60 | ||
|
Available to order. Add to View Price |
|||
|
#1
CARBURETOR ASSY
13200-29FB3
Superseded by 13200-29FB4
|
$848.60 | ||
|
Unavailable |
|||
|
#1
CARBURETOR ASSY
13200-29FB4
|
$848.60 | ||
|
Unavailable |
|||
|
#1
CARBURETOR ASSY
13200-29FC2
Superseded by 13200-29FC3
|
$897.88 | ||
|
Available to order. Add to View Price |
|||
|
#1
CARBURETOR ASSY
13200-29FC3
|
$897.88 | ||
|
Unavailable |
|||
|
#2
SPRING
13573-07F00
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER
13418-33E00
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING (D:1.9,ID:4.8)
09280-05004
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
13481-04F00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
13382-19E00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
.E RING,MULTIPLE JET NOZZLE
13394-17E60
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING
13387-13F00
|
$10.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
13291-29FA0
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE, JET (5DH37-1)
13383-29FB0
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET, NEEDLE (P-0M)
09494-00939
|
$56.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
.HOLDER,JET
13385-29FA0
|
$38.54 | ||
|
Available to order. Add to View Price |
|||
|
#13
.O RING
13246-43010
Superseded by 13246-43011
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
JET, MAIN (142.5)
09491-28012
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
.DIAPHRAGM
13507-17C01
Superseded by 13507-17C02
|
$38.21 | ||
|
Available to order. Add to View Price |
|||
|
#16
.VALVE,PISTON
13501-29FA0
|
$93.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING
13504-14E00
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
.VALVE ASSY NEEDLE
13370-29FA0
Superseded by 13370-29FA1
|
$71.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLOAT ASSY
13250-04F00
|
$44.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
.PIN,FLOAT
13254-01010
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
02112-0408B
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
13602-05A10
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
.JET,PILOT (22.5)
09492-22014
|
$17.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
JET, MAIN AIR (62.5)
09491-62006
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#25
O RING
13258-04F00
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$6.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW
02112-04107
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
02112-0412A
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
13671-29FA0
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
.SCREW,ADJUST
13267-29FA0
|
$70.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
.SPRING,THROTTLE SCREW
13268-37420
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER
13615-43010
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#33
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
.WASHER (14X17)
13291-29900
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#35
.SPRING,THROTTLE SCREW
13268-48700
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#36
ADJUSTER (3,1/2)
13279-33E00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
.COVER ASSY,DIAPHRAGM
13502-29FA0
|
$56.85 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW
13247-33E00
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER ASSY
13502-10F00
|
$44.81 | ||
|
Available to order. Add to View Price |
|||
|
#39
.COVER,DIAPHRAGM
13502-08F00
|
$57.93 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING
13481-41F20
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#41
.DIAPHRAGM ASSY
13480-10F00
Superseded by 13480-10F01
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW
13601-04148
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
JET, PILOT AIR (135)
09492-27010
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLATE ASSY
13420-29FA0
|
$82.19 | ||
|
Available to order. Add to View Price |
|||
|
#45
.E RING
13415-38300
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER
13427-38300
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#47
.CAP,STARTER VALVE
13682-31210
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#48
.HOLDER,GUIDE
13418-44080
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#49
.O RING (16)
13278-47090
Superseded by 13278-47091
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#50
.SPRING,STARTER VALVE
13417-43010
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#51
PLUNGER ASSY
13411-29FA0
|
$35.24 | ||
|
Available to order. Add to View Price |
|||
|
#52
SPRING
13434-43010
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#53
BALL
13596-93010
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#54
.SENSOR ASSY
13580-21F00
Superseded by 13580-21F01
|
$111.42 | ||
|
Available to order. Add to View Price |
|||
|
#55
SCREW
13602-19B50
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#56
RING
13387-29FA1
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#57
PLUG
13281-05A00
|
$5.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
HOSE ASSY, BOOST (4X8)
13683-29FB0
|
$30.83 | ||
|
Available to order. Add to View Price |
|||
|
#59
.PLATE
13671-14D00
Superseded by 13671-14D01
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#60
.HOSE AIR VENT (6.5X10.5)
13684-29FB0
Superseded by 13684-29FB1
|
$34.82 | ||
|
Unavailable |
|||
|
#61
CLIP
13671-19F00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#62
.O-RING
13295-33010
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#63
CLAMP
09404-06432
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#63
CLAMP, L:45
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#64
CLAMP, L:120
09404-08420
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#65
HEATER ASSY,CARBURETOR (15W)
13650-25E01
|
$50.21 | ||
|
Available to order. Add to View Price |
|||
|
#66
THERMO SWITCH COMP,CARB HEATE
13655-16F00
|
$74.50 | ||
|
Available to order. Add to View Price |
|||
