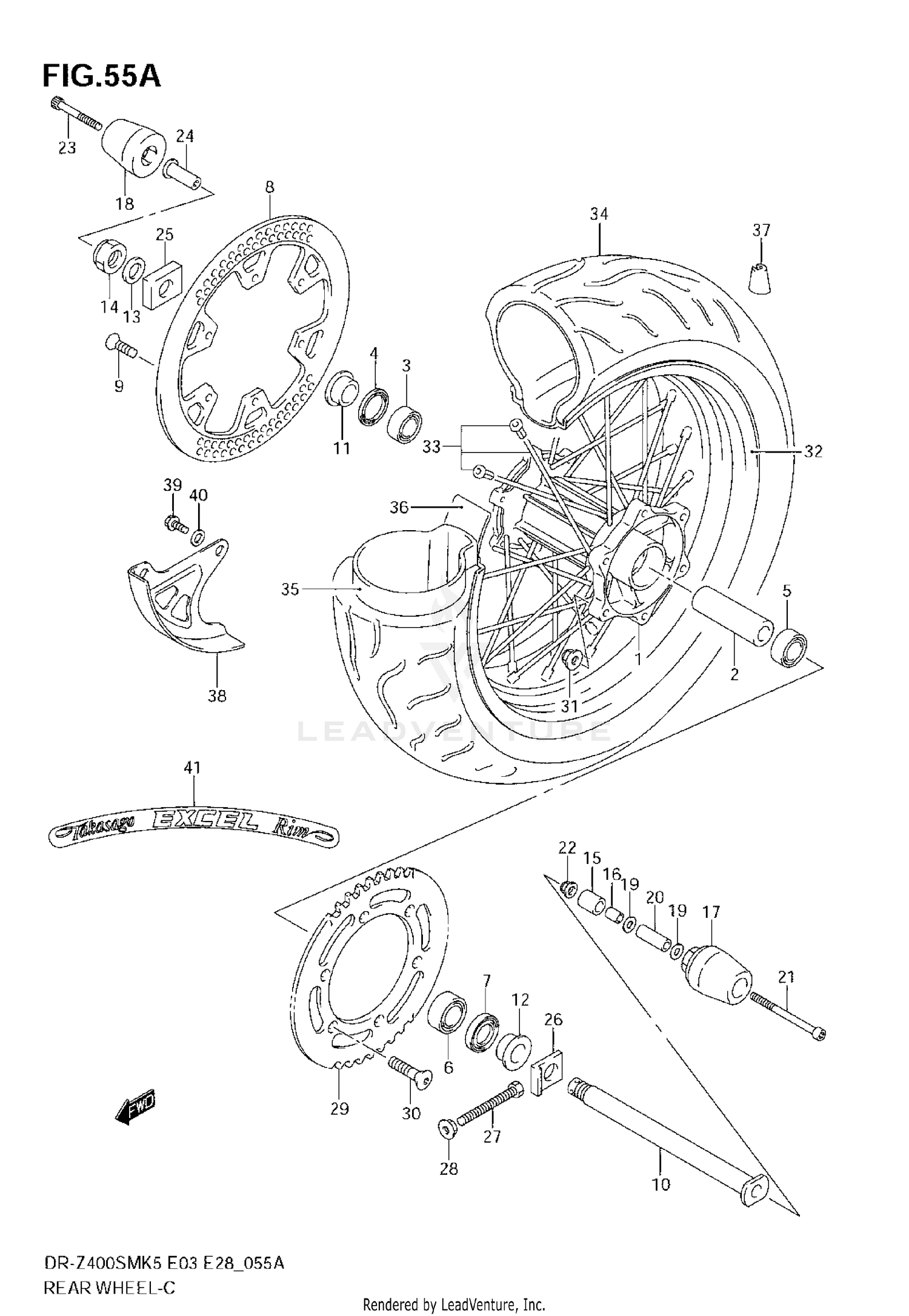

Rear Wheel (model K7/k8) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,REAR WHEEL
64111-29F10
|
$525.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER,REAR HUB BEARING
64731-29F00
|
$35.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, RH
08133-60047
|
$33.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SEAL (29X42X6)
64841-28E00
Superseded by 64841-28E01
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, LH
08133-60047
|
$33.02 | ||
|
Unavailable |
|||
|
#6
BEARING
08123-62047
Superseded by 08123-6204B
|
$22.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (29X47X6)
09283-29006
|
$14.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
DISC,REAR BRAKE
69211-29F00
|
$354.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
09120-06014
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE,REAR
64711-29F40
|
$140.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER,REAR AXLE
64751-28E20
|
$35.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER,REAR AXLE
64751-28E20
|
$35.25 | ||
|
Unavailable |
|||
|
#13
WASHER
09160-19022
|
$6.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT
08319-2118A
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#15
EXPANDER,FR AXLE SLIDER RH
54744-29F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER, EXPANDER
09180-05048
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#17
SLIDER,RR AXLE LH
64755-29F00
|
$35.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
SLIDER,FR AXLE LH
54755-29F00
|
$28.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, AXLE SLIDER
09160-05029
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, AXLE SLIDER
09180-05060
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, AXLE SLIDER NO.1
09106-05021
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, AXLE SLIDER NO.1
08316-2005B
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, AXLE SLIDER NO.2
07130-0540A
|
$3.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, AXLE SLIDER NO.2
09159-05050
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#25
ADJUSTER,CHAIN RH
61445-29F00
|
$45.66 | ||
|
Available to order. Add to View Price |
|||
|
#26
ADJUSTER,CHAIN LH
61446-29F00
|
$44.81 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
09100-08287
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
09159-08034
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPROCKET,REAR (NT:41)
64511-14E00
|
$81.47 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW (8X30.5)
09120-08010
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#32
RIM,RR WHEEL (17M/C MT4.50 AL
65311-29F30
|
$746.40 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPOKE SET,REAR WHEEL
65320-29F30
|
$148.69 | ||
|
Available to order. Add to View Price |
|||
|
#34
TIRE REAR
65110-29FA0
Superseded by 65110-29FA1
|
$378.04 | ||
|
Unavailable |
|||
|
#35
TUBE ASSY,WHEEL INNER
65200-29FA0
|
$63.90 | ||
|
Available to order. Add to View Price |
|||
|
#36
PROTECTOR,WHEEL INNER TUBE
65261-29FA0
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#37
BALANCER,WHEEL (15G)
55411-26G00
|
$8.74 | ||
|
Available to order. Add to View Price |
|||
|
#37
BALANCER,WHEEL (30G)
55413-41F00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER, REAR DISC
69231-37F11
Superseded by 69231-37F12
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
09103-06256
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER
08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
EMBLEM,EXCEL(8
68390-29F00-CVZ
Superseded by 68390-29F01-CVZ
|
$33.36 | ||
|
Available to order. Add to View Price |
|||
