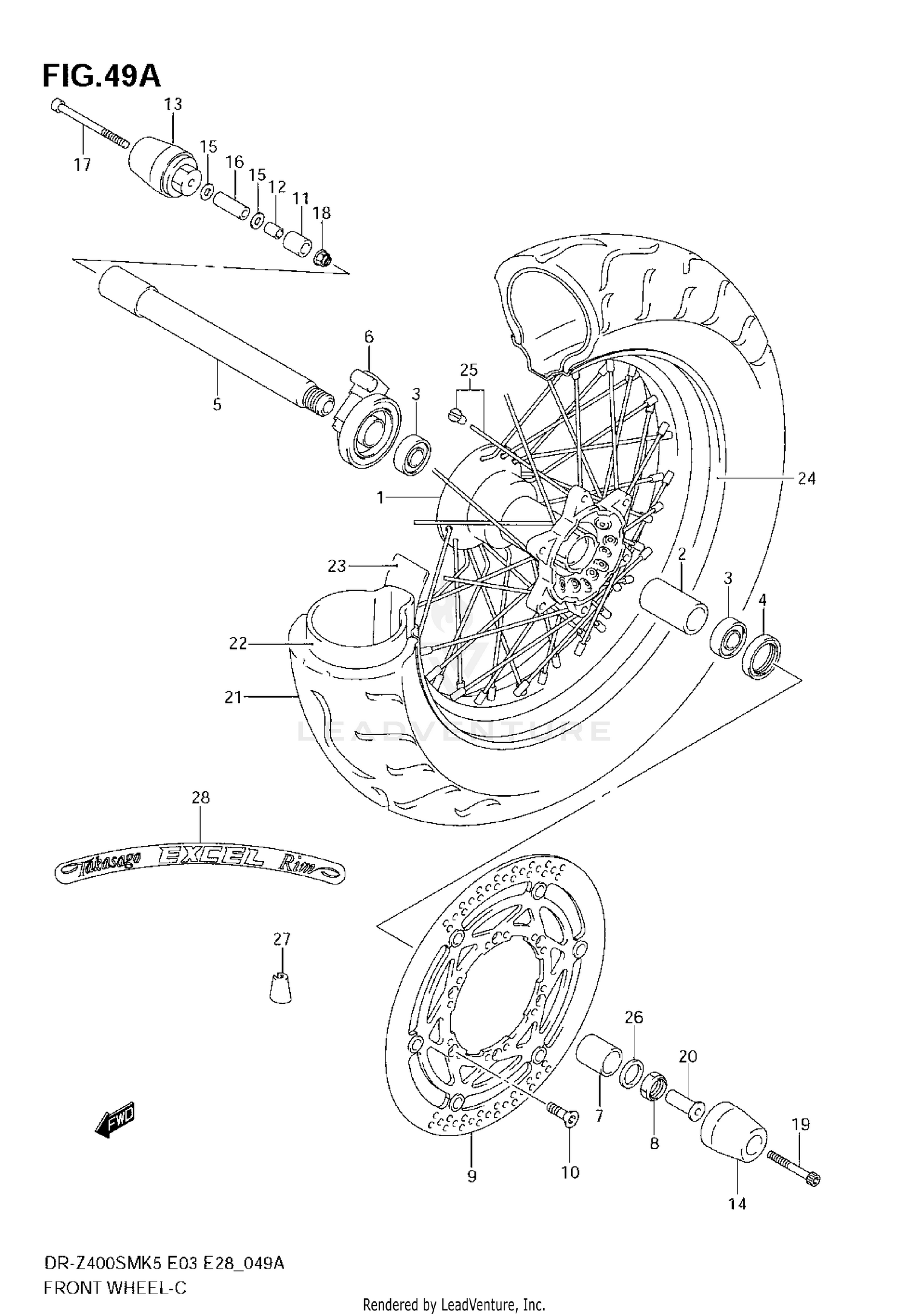

Front Wheel (model K7/k8) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,FRONT WHEEL
54111-29F10
|
$355.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER,FRONT HUB BEARING (20.
54731-36E10
|
$29.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
08130-69047
Superseded by 08130-6904B
|
$47.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (25X37X6)
09283-25083
|
$10.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE,FRONT
54711-29F10
|
$118.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOX ASSY SPEEDOMETER GEAR
54600-29F10
Superseded by 54600-29F11
|
$97.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER,FRONT AXLE LH(L:31)
54751-36E10
|
$23.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
09159-18018
|
$21.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
DISC,FRONT BRAKE
59220-29F00
|
$428.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
09120-06014
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#11
EXPANDER,FR AXLE SLIDER RH
54744-29F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER, EXPANDER
09180-05048
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLIDER,FR AXLE RH
54745-29F00
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
SLIDER,FR AXLE LH
54755-29F00
|
$28.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, AXLE SLIDER
09160-05029
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER, AXLE SLIDER
09180-05060
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, AXLE SLIDER NO.1
09106-05021
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08316-20053
Superseded by 08316-2005A
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, AXLE SLIDER NO.2
07130-0540A
|
$3.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, AXLE SLIDER NO.2
09159-05050
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#21
TIRE FRONT
55110-29FA0
Superseded by 55110-29FA1
|
$292.67 | ||
|
Unavailable |
|||
|
#22
TUBE ASSY,WHEEL INNER
55200-29FA0
|
$66.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR,WHEEL INNER TUBE
55261-29FA0
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#24
RIM,FR WHEEL (17XMT3.50)
55311-29F10
|
$513.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPOKE SET,FRONT WHEEL
55320-29F10
|
$136.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
09160-18034
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALANCER,WHEEL (15G)
55411-26G00
|
$8.74 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALANCER,WHEEL (30G)
55413-41F00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
EMBLEM,EXCEL(8
68390-29F00-CVZ
Superseded by 68390-29F01-CVZ
|
$33.36 | ||
|
Available to order. Add to View Price |
|||
