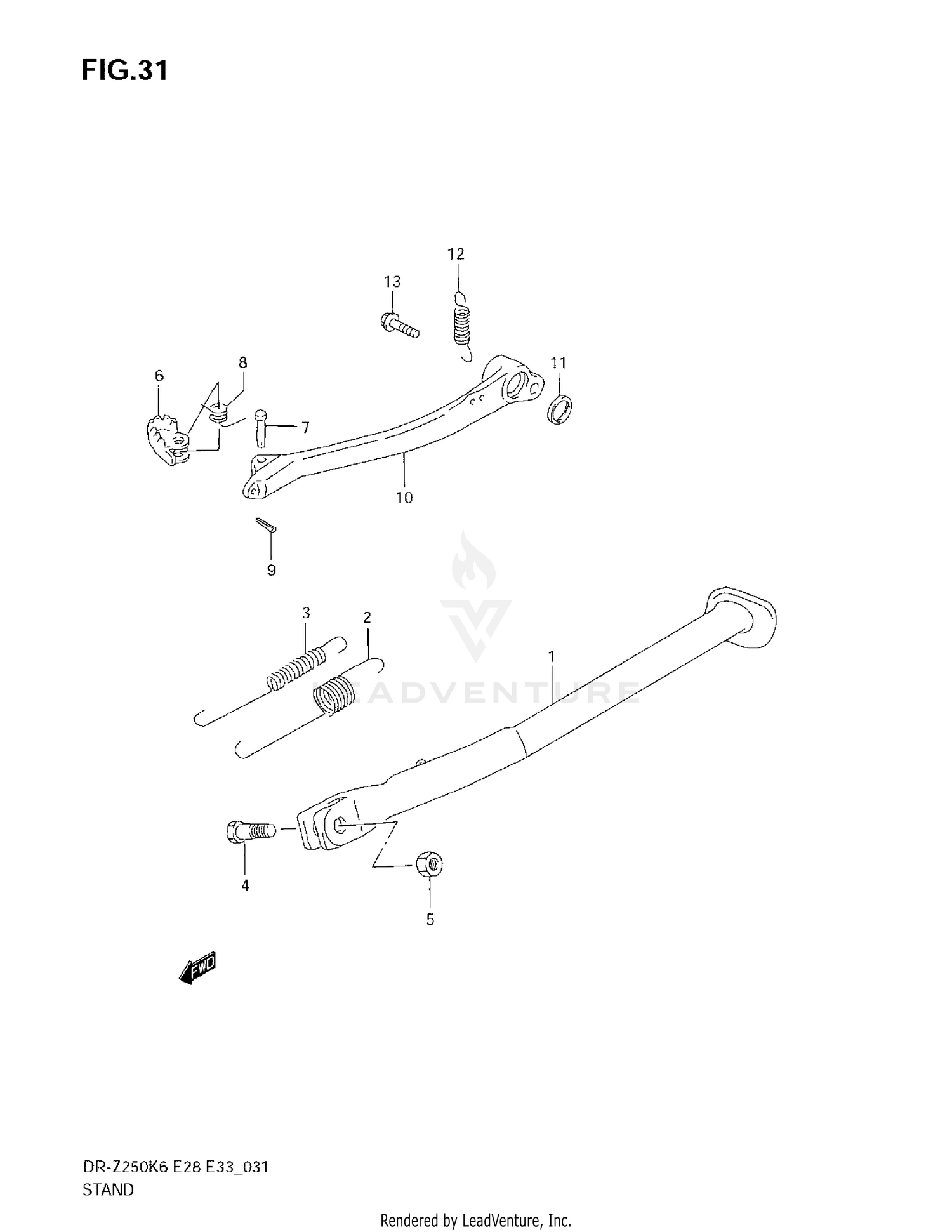

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, PROP
42310-13E20
Superseded by 42310-13E00
|
$202.44 | ||
|
Available to order. Add to View Price |
|||
|
#1
STAND, PROP
42310-13E00
|
$202.44 | ||
|
Unavailable |
|||
|
#2
SPRING, OUTER
09443-19010
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, INNER
09443-12036
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
09111-10047
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09159-10097
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
PEDAL,BRAKE
43110-43D00
|
$16.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
09200-06062
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
09444-11006
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM, BRAKE PEDAL
43112-13E02
|
$89.46 | ||
|
Unavailable |
|||
|
#11
.OIL SEAL (15X21X3)
09284-15006
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09443-11030
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (8X14)
09106-08098
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
