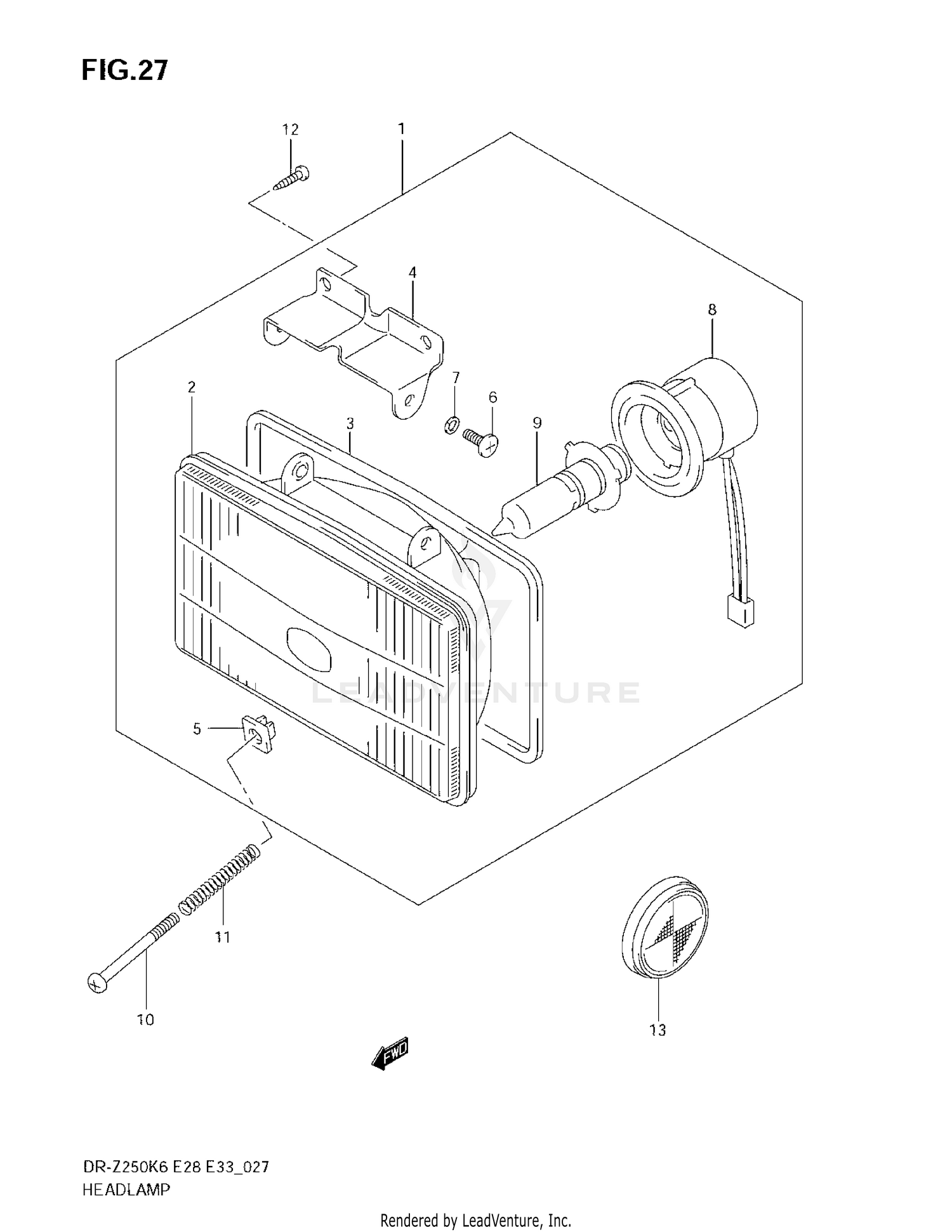

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-03D03
Superseded by 35100-03D04
|
$217.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNIT, LAMP
35121-03D02
|
$59.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, HEADLAMP
35125-03D00
|
$9.60 | ||
|
Unavailable |
|||
|
#4
BRACKET, LAMP
35230-05D00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
.NUT,ADJUSTING
35135-12E20
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
35136-16700
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER
08321-01057
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
CORD ASSY
35171-03D03
Superseded by 35171-03D10
|
$43.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V 35/36.5W)
09471-12105
|
$62.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, HEADLAMP ADJUST
09125-04034
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, HEADLAMP ADJUST
09440-07041
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
03511-04103
Superseded by 03511-0410A
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
REFLEX REFLECTOR, FR SIDE
35950-14A00
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
