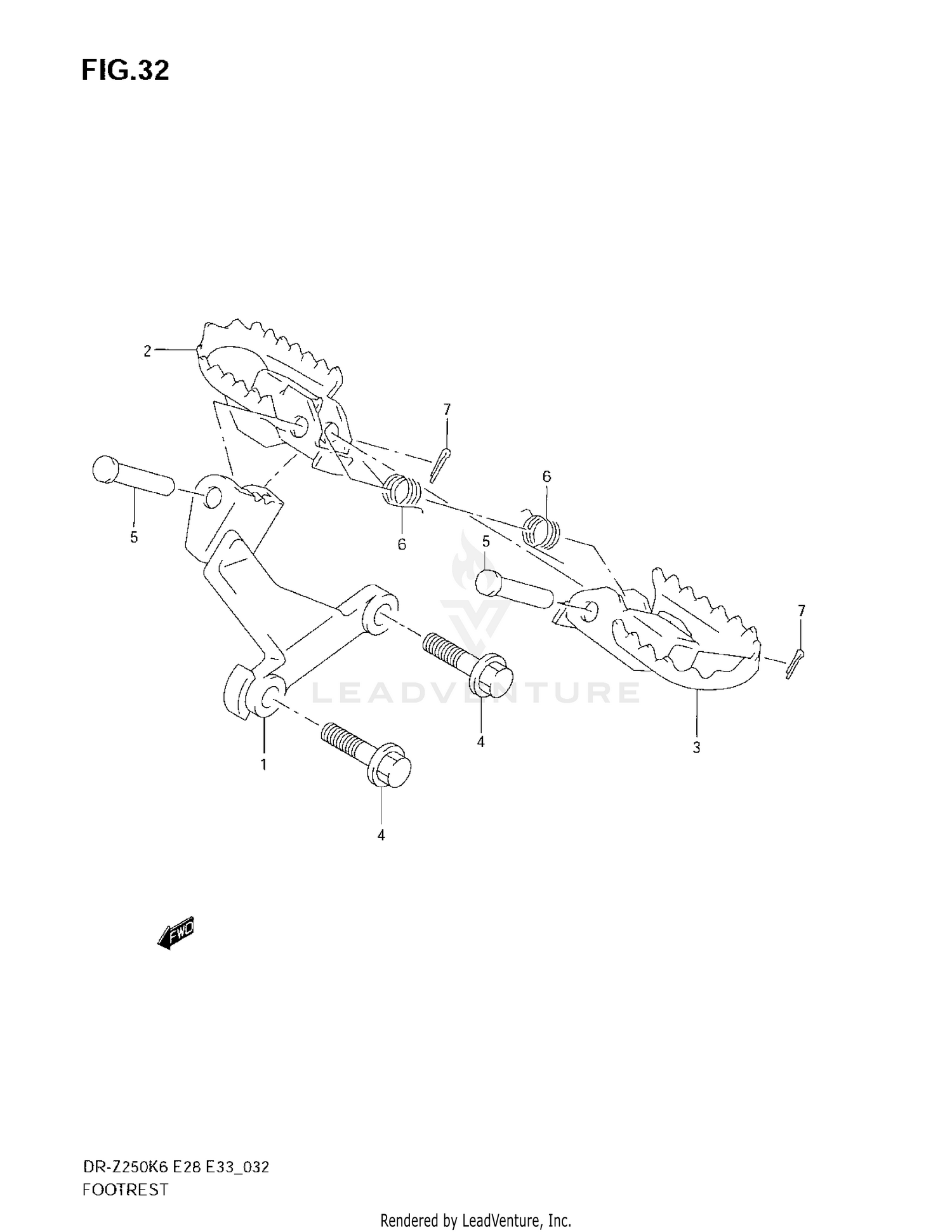

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FOOTREST RH (BLACK)
43510-14D12-019
|
$107.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
FOOTREST, FRONT RH (BLACK)
43550-14D30
Superseded by 43550-03B00-019
|
$44.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
FOOTREST, FRONT LH (BLACK)
43560-14D30
Superseded by 43560-03B00-019
|
$45.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
09103-10245
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
09200-10013
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
09448-15004
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
