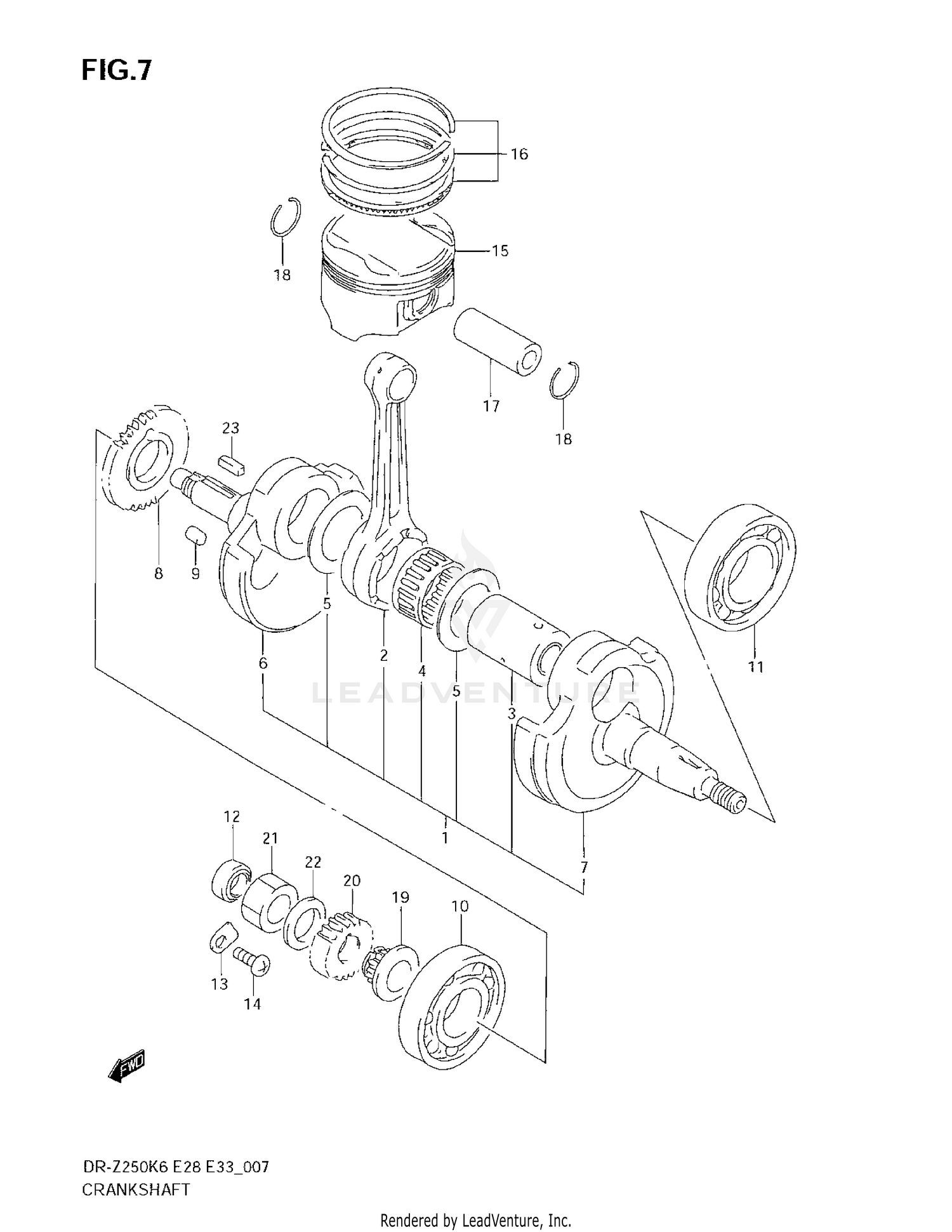

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12200-13E01
|
$867.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTING ROD
12161-13E00
|
$147.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN, CRANK
12210-14D03
|
$93.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (34X43X20)
09263-34007
|
$86.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (34X52X1)
09160-34003
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT, RH
12221-13E00
|
$192.77 | ||
|
Unavailable |
|||
|
#7
CRANKSHAFT, LH
12261-13E00-0A0
|
$188.40 | ||
|
Unavailable |
|||
|
#8
GEAR, CRANK BALANCER DRIVE (NT:34)
12661-13E00
|
$140.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
09261-08006
|
$2.05 | ||
|
Unavailable |
|||
|
#10
BEARING (28X68X18)
09262-28014
|
$71.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (28X68X18)
09262-28031-0B0
|
$58.34 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (14X24X6)
09282-14003
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
RETAINER,BEARING
24742-18A00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02112-06123
Superseded by 02112-0612A
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PISTON
12111-13E00-0F0
|
$109.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING SET, PISTON
12140-13E00
|
$80.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, PISTON
12151-17C00
|
$19.92 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING,SNAP
09381-19001
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPROCKET, CAM CHAIN DRIVE
12731-13E00
|
$58.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, PRIMARY DRIVE (NT:21)
21111-13E01
|
$43.64 | ||
|
Unavailable |
|||
|
#21
NUT (M18)
09140-18004
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
LOCK WASHER (ID:18.3)
09164-18007
Superseded by 09164-18001
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY
09421-05009
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
