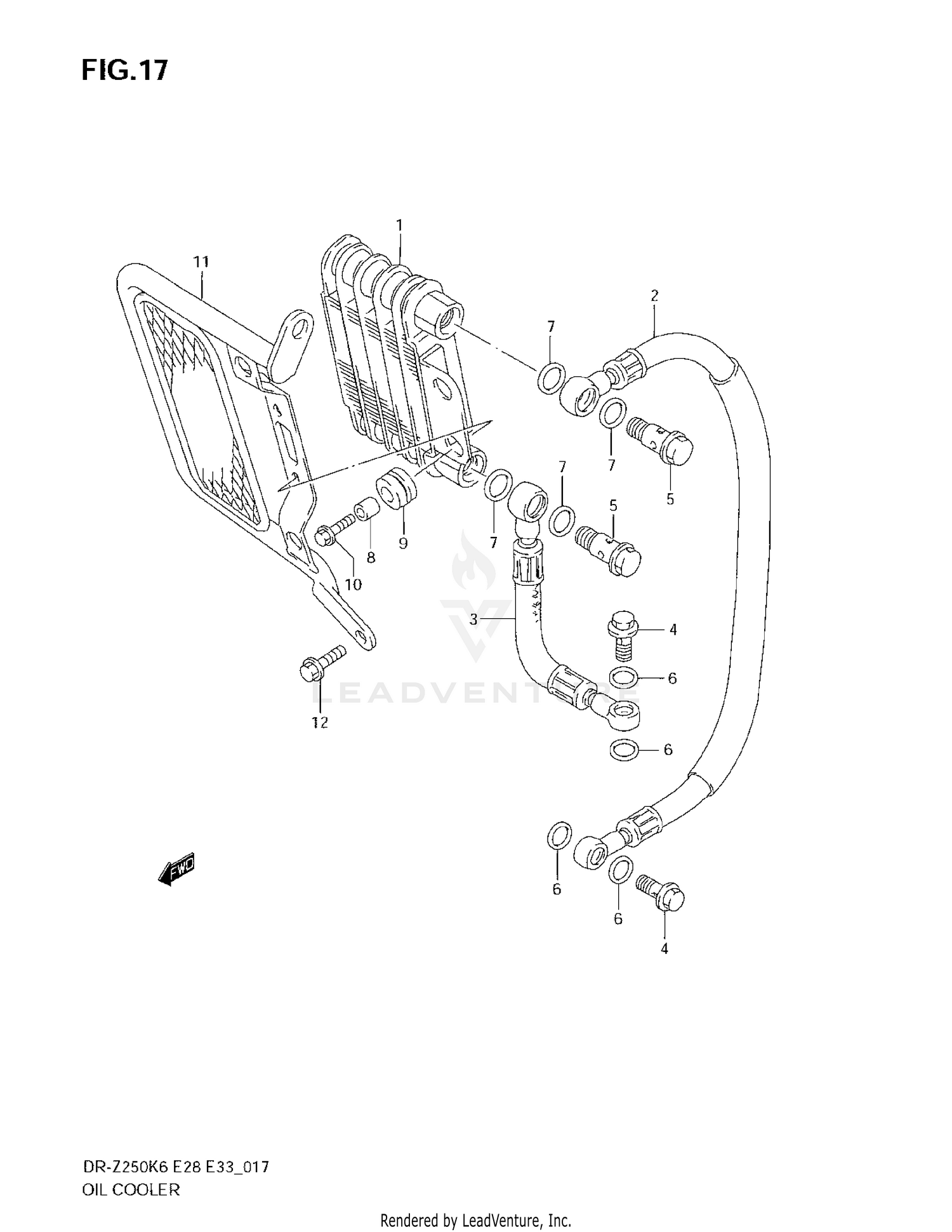

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY, OIL
16600-13E00
|
$613.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, OIL COOLER UPPER
16460-13E00
|
$147.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, OIL COOLER LOWER
16470-13E00
|
$87.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
UNION BOLT
09360-10032
Superseded by 09360-10055
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
UNION BOLT
09360-10055
|
$5.08 | ||
|
Unavailable |
|||
|
#5
UNION BOLT
09360-12012
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET (10.1X16X1)
09168-10007
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET (14X20X1.5)
09168-14011
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (6.5X10X10)
09180-06310
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION (10X20X10)
09320-10015
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X20)
09116-06167
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, OIL COOLER
16640-13E01
|
$133.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (8X20)
01550-08203
Superseded by 01550-0820A
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
