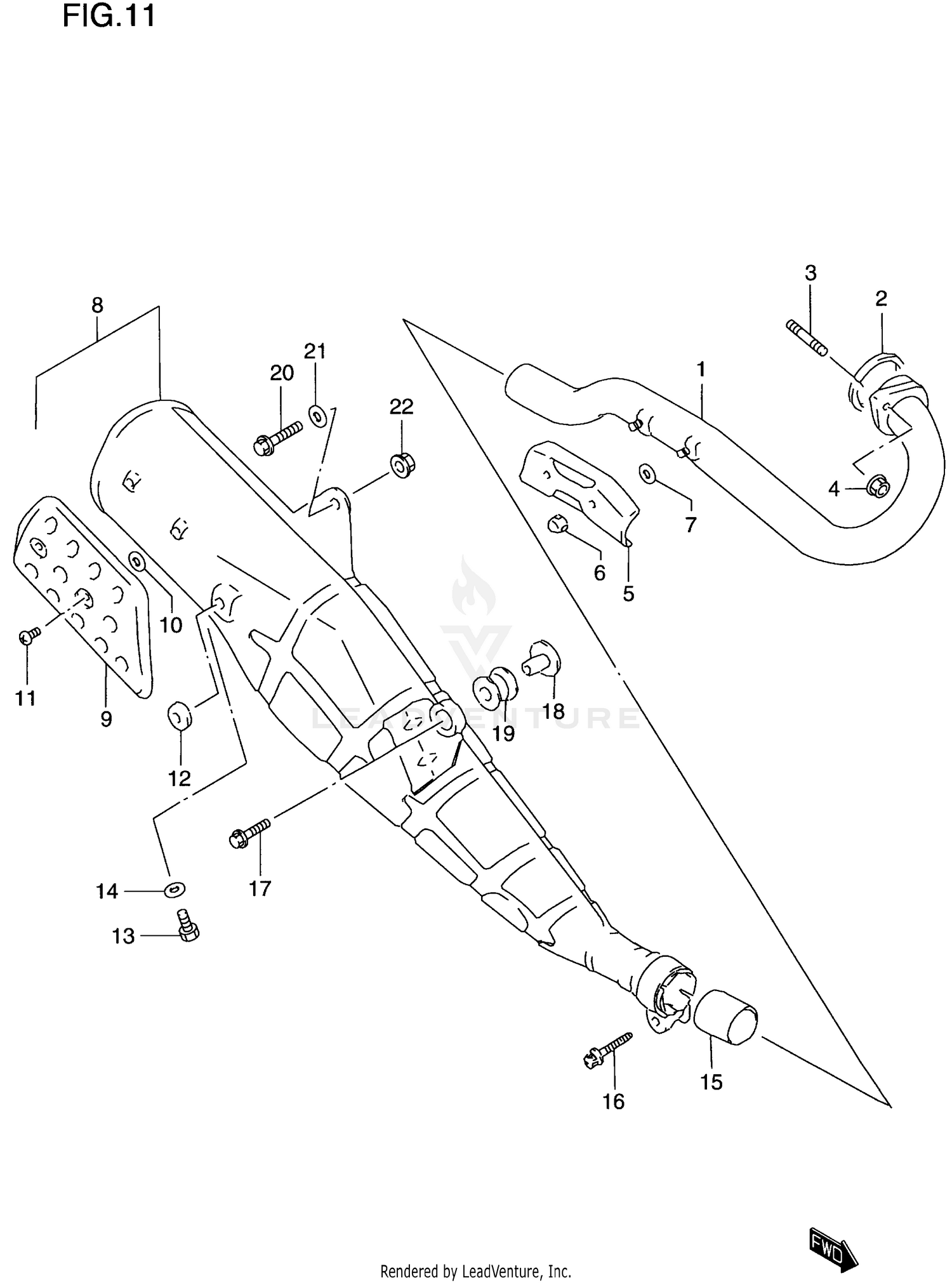

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST
14150-42A20
Superseded by 14150-42A22
|
$354.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,EXHAUST PIPE
14181-42A00
|
$13.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,STUD
01421-08258
Superseded by 01421-0825A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08319-31087
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER,EXHAUST PIPE
14186-42A20
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
09159-06035
Superseded by 09159-06038
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET (6X16X1.4)
09168-06122
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
MUFFLER ASSY (BLACK,MAROON,SI
14301-42A60-H01
Superseded by 14301-42A61-H01
|
$526.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
.COVER,MUFFLER
14781-42A20
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET (5.8X13X1.4)
09168-06120
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (6X10)
09139-06076
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09321-10007
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, DRAIN
09247-12103
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
09168-12002
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
GASKET,2ND MUFFLER
14773-14202
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
07120-08353
Superseded by 07120-0835B
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (8X35)
09118-08080
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (8.6X12X17.5)
09180-08151
|
$6.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CUSHION
09320-12033
|
$39.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
.BOLT (8X35)
09103-08287
Superseded by 09103-08357
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER,LOCK
08322-01083
Superseded by 08322-0108A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08361-25083
Superseded by 08361-2508A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
