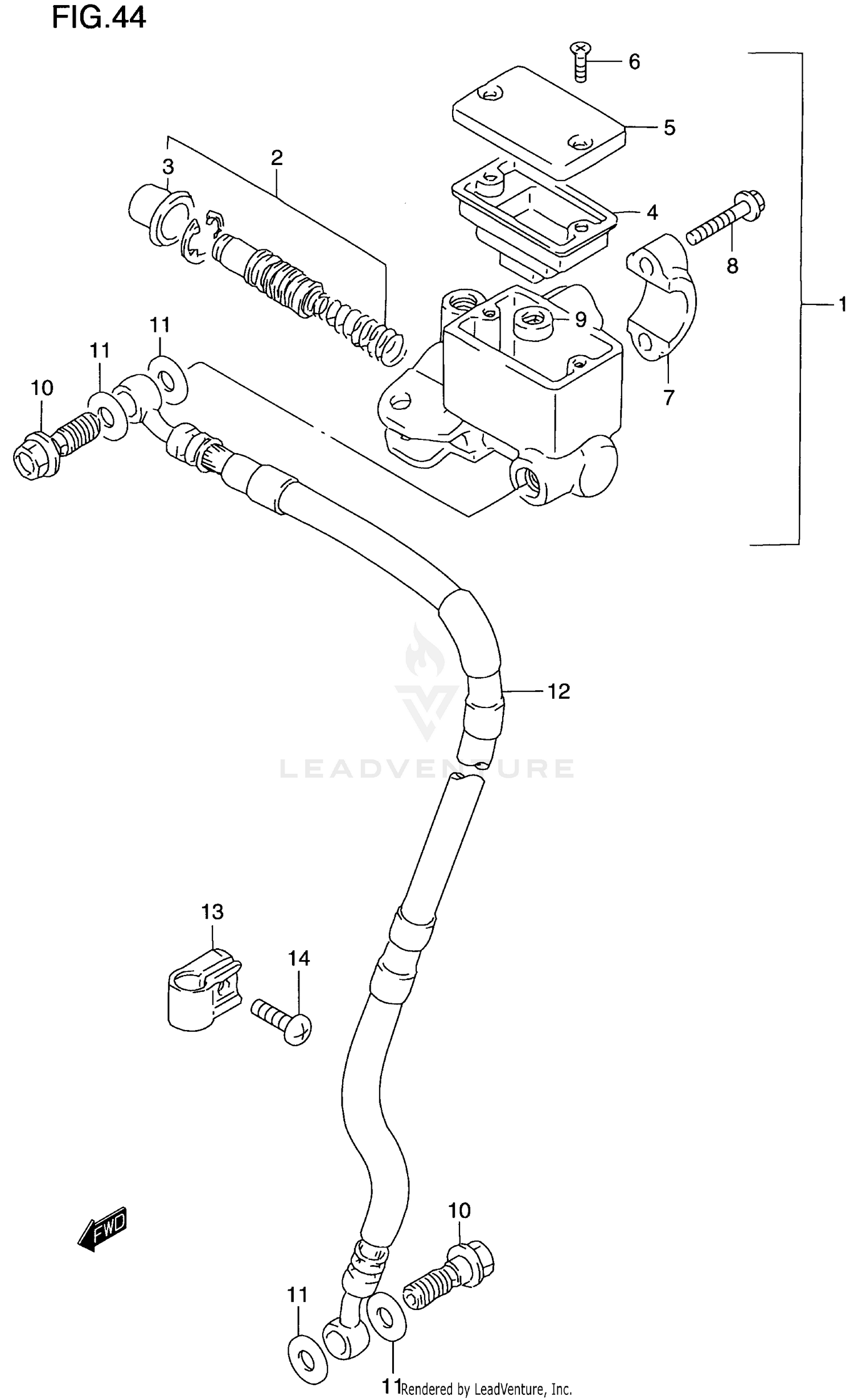

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-03D00
Superseded by 59600-03D01
|
$315.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON/CUP SET
69600-38810
|
$63.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
59666-44300
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRM
59667-44B00
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
59669-03D00
|
$34.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW
02122-04123
Superseded by 02122-0412A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER
59671-03D00
|
$28.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
59675-27C00
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEPARATOR
59748-14500
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
UNION (10X1.00X22)
09360-10039
Superseded by 09360-10061
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (10X15X1.5)
09161-10009
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, FRONT BRAKE
59480-44AA0
Superseded by 59480-44AA1
|
$130.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP,BRAKE HOSE
58621-07A10
Superseded by 58621-07A20
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
