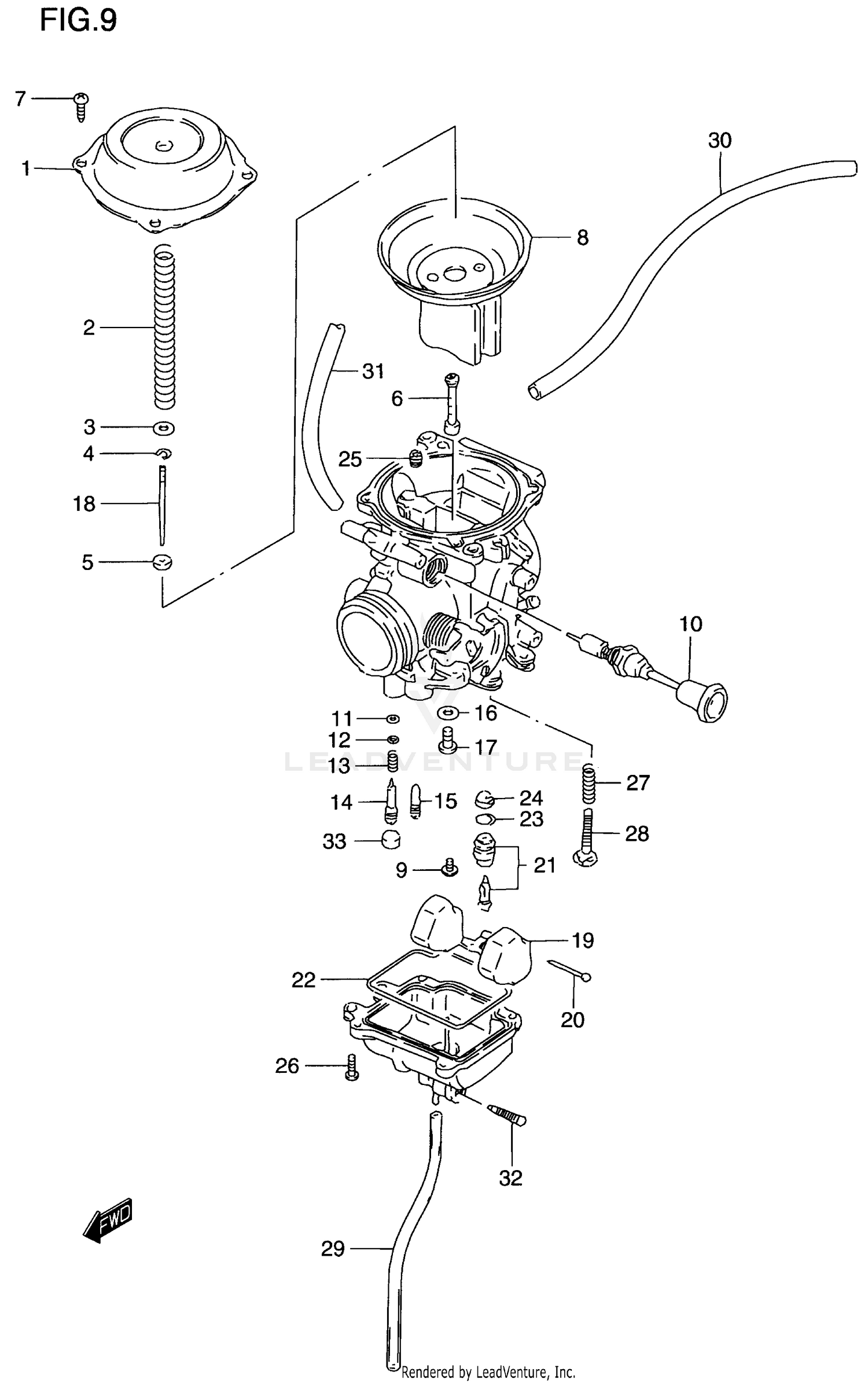

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CARBURETOR ASSY
13200-42AC0
Superseded by 13200-42AC2
|
$577.80 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSY
13200-42AF0
|
$421.09 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSY
13200-42AC0
Superseded by 13200-42AC2
|
$577.80 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSY
13200-42AE0
Superseded by 13200-42AE2
|
$521.75 | ||
|
Available to order. Add to View Price |
|||
|
#1
.COVER,DIAPHRAGM
13502-42A00
|
$41.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING
13417-42A00
|
$8.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
RING
13382-42A00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, NEEDLE
13394-10010
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RING
13387-47010
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
.JET,NEEDLE (P-5M)
09494-00881
|
$56.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, NEEDLE (P-5)
09494-00514
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02112-04083
Superseded by 02112-0408A
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM ASSY
13500-42A00
Superseded by 13500-42A01
|
$182.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
13602-43410
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUNGER ASSY
13411-42A20
|
$41.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
.WASHER (14X17)
13291-29900
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SPRING
13268-47070
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PILOT (2 1/2)
13279-47070
|
$16.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PILOT (1 1/2)
13279-47070
|
$16.51 | ||
|
Unavailable |
|||
|
#15
.JET,PILOT (#35)
09492-35008
|
$11.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
JET, PILOT (40)
09492-40014
|
$11.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, NEEDLE JET
13332-44080
Superseded by 13382-03110
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
13382-03110
|
$3.29 | ||
|
Unavailable |
|||
|
#17
.JET,MAIN (#125)
09491-25010
|
$11.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, MAIN (122.5)
09491-24013
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
.NEEDLE,JET (5D77-1)
13383-42AC0
|
$20.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE, JET (5D26-3)
13383-42A00
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLOAT
13250-42A00
|
$42.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, FLOAT
13254-92311
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#21
.NEEDLE VALVE
13370-44500
|
$62.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
.O RING,FLOAT CHAMBER
13251-42A00
|
$11.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
.O RING,NEEDLE VALVE SEAT
13374-44080
Superseded by 13374-35C00
|
$7.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
FILTER
13376-84110
Superseded by 13376-19F00
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
.JET,AIR (#135)
09493-27001
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
02112-04123
Superseded by 02112-0412A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
.SPRING,THROTTLE SCREW
13268-37420
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
ADJUSTER
13267-37100
Superseded by 13267-25D00
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
|
#28
ADJUSTER
13267-25D00
|
$15.34 | ||
|
Unavailable |
|||
|
#29
.HOSE
13684-40A00
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE(4.5X8.5X60
09354-45853-600
Superseded by 09355-45001-600
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE(4.5X8.5X60
09355-45855-600
Superseded by 09355-45001-600
|
$11.54 | ||
|
Unavailable |
|||
|
#32
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$6.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
PLUG
13281-05A00
|
$5.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
