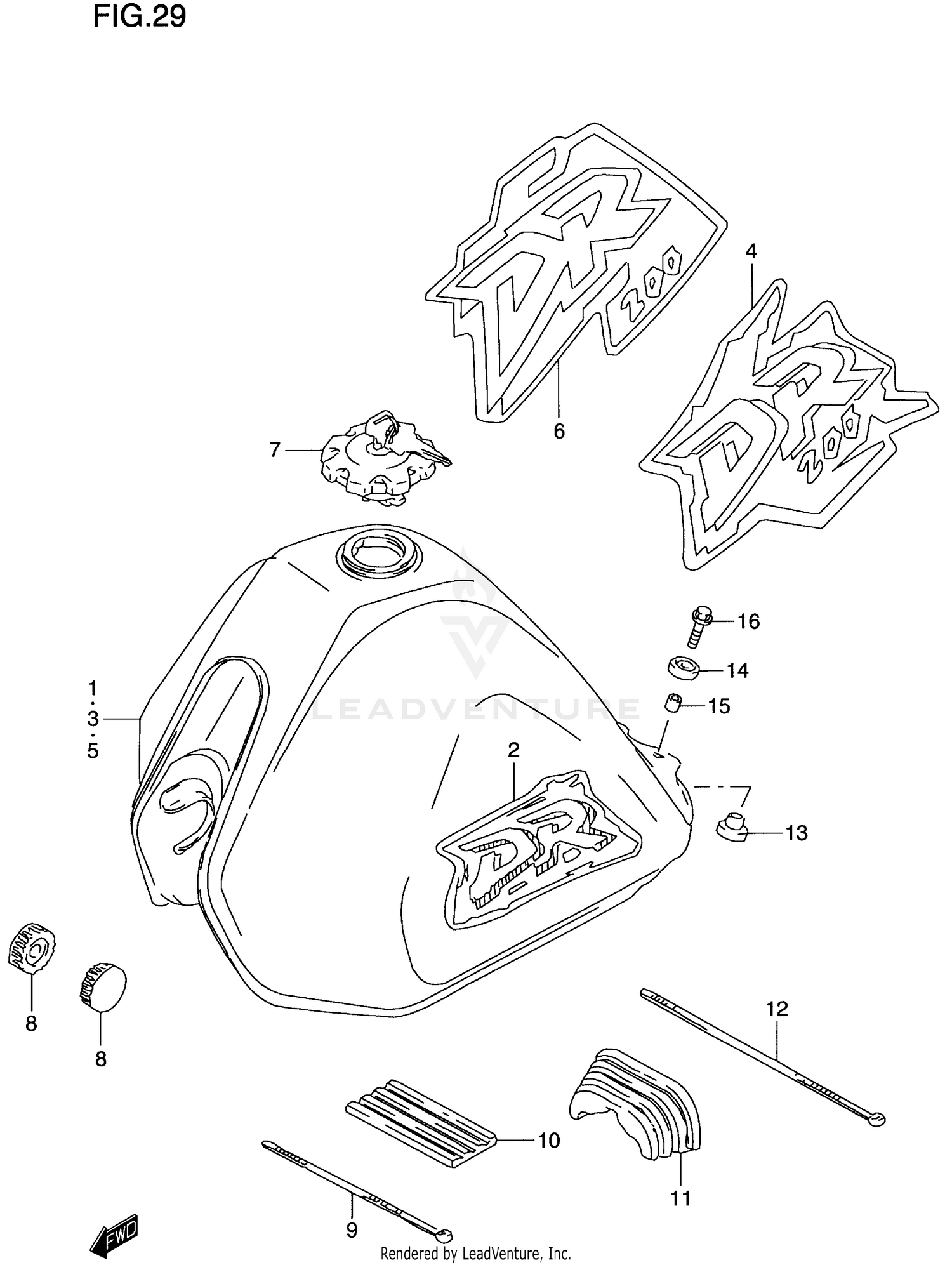

Fuel Tank (model T/v/w) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL
44100-44AL0-30H
Superseded by 44100-44AL1-30H
|
$1,062.22 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (WHITE)
44100-44AN0-30H
|
$434.39 | ||
|
Unavailable |
|||
|
#2
EMBLEM SET, FUEL TANK
68120-44A00-Z65
|
$115.85 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
49100-44A00-30H
Superseded by 49100-44A01-30H
|
$530.48 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
49100-44A10-30H
Superseded by 49100-44A11-30H
|
$482.57 | ||
|
Unavailable |
|||
|
#4
TAPE SET, FUEL TANK
68110-44AC0-Y2E
|
$102.24 | ||
|
Unavailable |
|||
|
#5
TANK ASSY,FUEL
49100-44A80-30H
Superseded by 49100-44A81-30H
|
$812.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
NO DESCRIPTION AVAILABLE
49100-44A90-30H
Superseded by 49100-44A91-30H
|
$503.10 | ||
|
Unavailable |
|||
|
#6
TAPE SET, FUEL TANK
68110-44AJ0-Y5P
|
$96.88 | ||
|
Unavailable |
|||
|
#7
CAP SET,FUEL TA
44200-12851
Superseded by 44200-12852
|
$169.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP SET,FUEL TA
44200-05820
Superseded by 44200-05822
|
$87.98 | ||
|
Unavailable |
|||
|
#8
CUSHION
09329-10016
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
09407-25402
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,FUEL TANK UPR FR
44541-14500
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION,FUEL TANK,REAR
44542-14A00
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
09407-30402
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION (9X24X18)
09320-10020
Superseded by 09320-10071
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-14013
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER (6.5X9X18)
09180-06271
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT
01570-06303
Superseded by 01570-0630A
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
