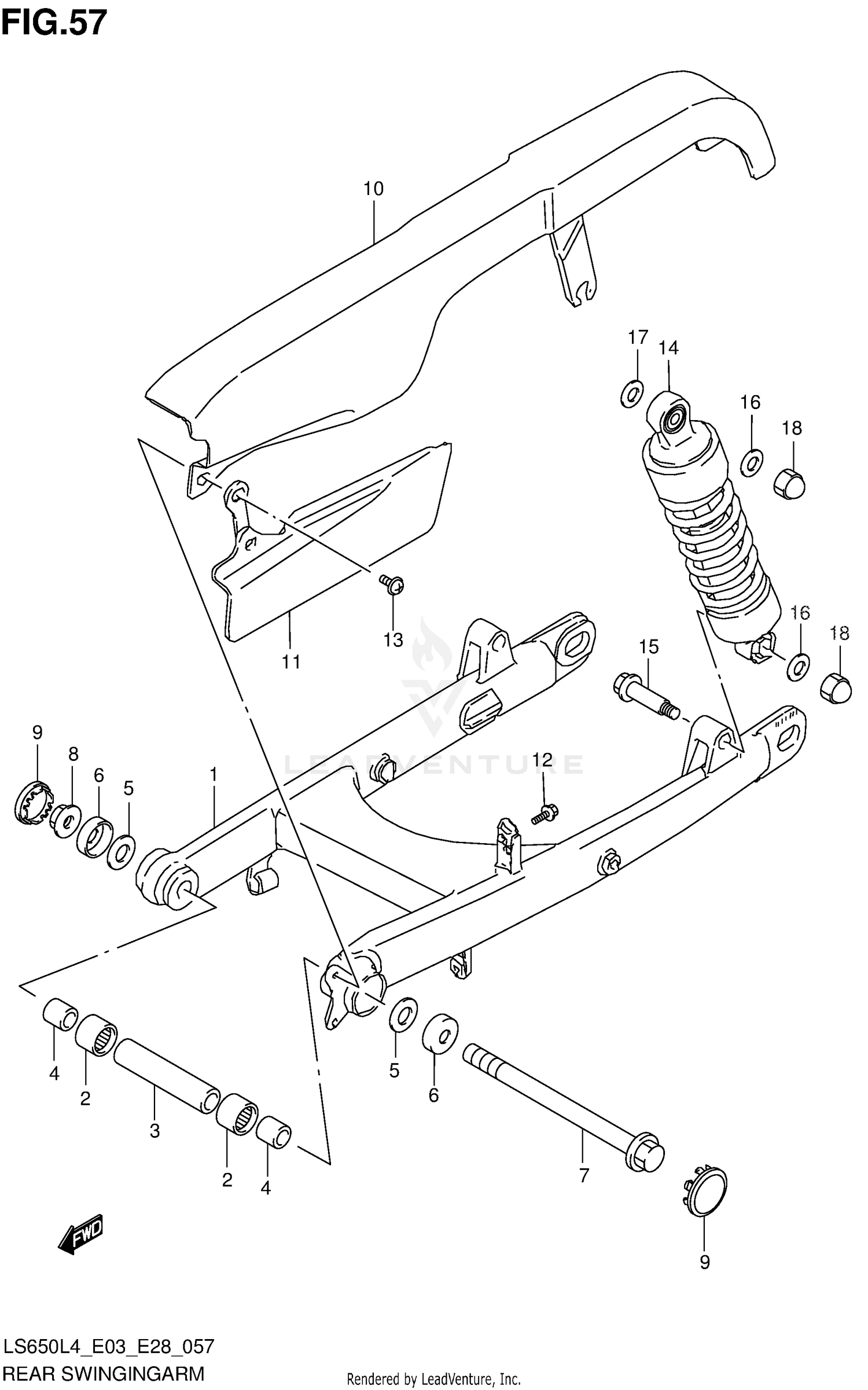

Rear Swingingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM, REAR (BLACK)
61100-24B03-019
|
$533.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (22X29X30)
09263-22017
|
$27.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, REAR SWINGING ARM PIVOT CENTER
61282-24B01
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, REAR SWINGING ARM PIVOT
61251-24B00
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
THRUST WASHER
08211-14341
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST SEAL, REAR SWINGING ARM PIVOT
61262-45002
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, REAR SWINGING ARM PIVOT
61211-24B00
|
$33.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08319-3114A
|
$11.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, REAR SWINGING ARM PIVOT
61222-38A01
|
$14.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
BELT CASE, UPPER
61310-24B02
|
$288.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BELT CASE, LOWER
61320-24B02
|
$49.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0612B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02112-7612B
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHOCK ABSORBER ASSY, REAR
62100-24B00
|
$382.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, REAR SHOCK ABSORBER LOWER
62313-24B00
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (10.5X28X2.3)
09160-10035
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (14.5X29X2.3)
09160-14009
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08313-10107
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
