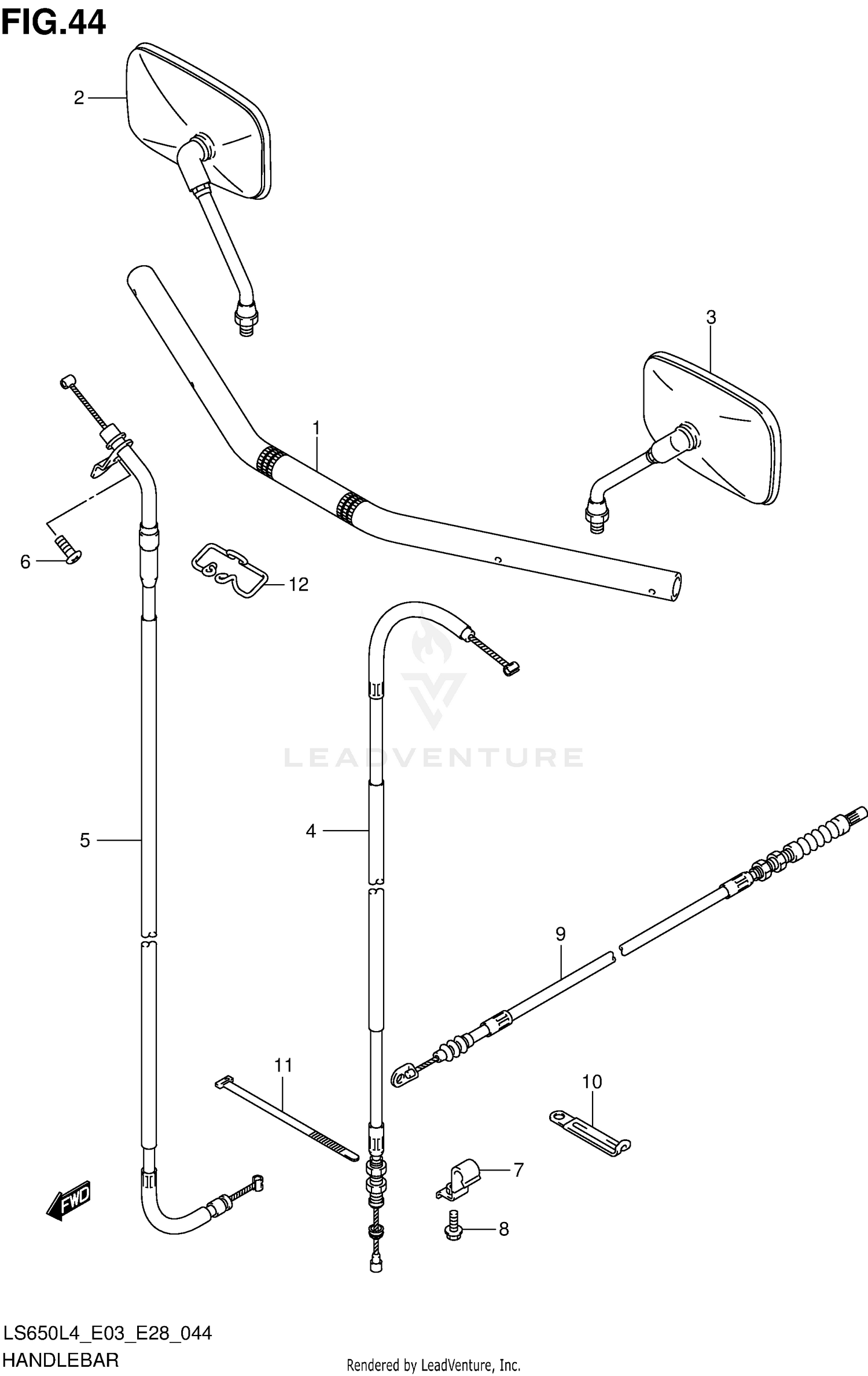

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
56110-24C00
|
$259.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
MIRROR ASSY, REAR VIEW RH
56500-45C41
|
$146.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
MIRROR ASSY, REAR VIEW LH
56600-45C41
|
$146.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE ASSY, CLUTCH
58200-24C00
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE ASSY, THROTTLE
58300-24C00
|
$42.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW (5X10)
09139-05033
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, STOP LAMP SWITCH CABLE
58620-24B00
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-0616A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, STOP LAMP SWITCH
58830-24B01
|
$36.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
.CLAMP (L:65)
09404-08418
Superseded by 09404-08421
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GUIDE, CABLE
58621-24C00
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
