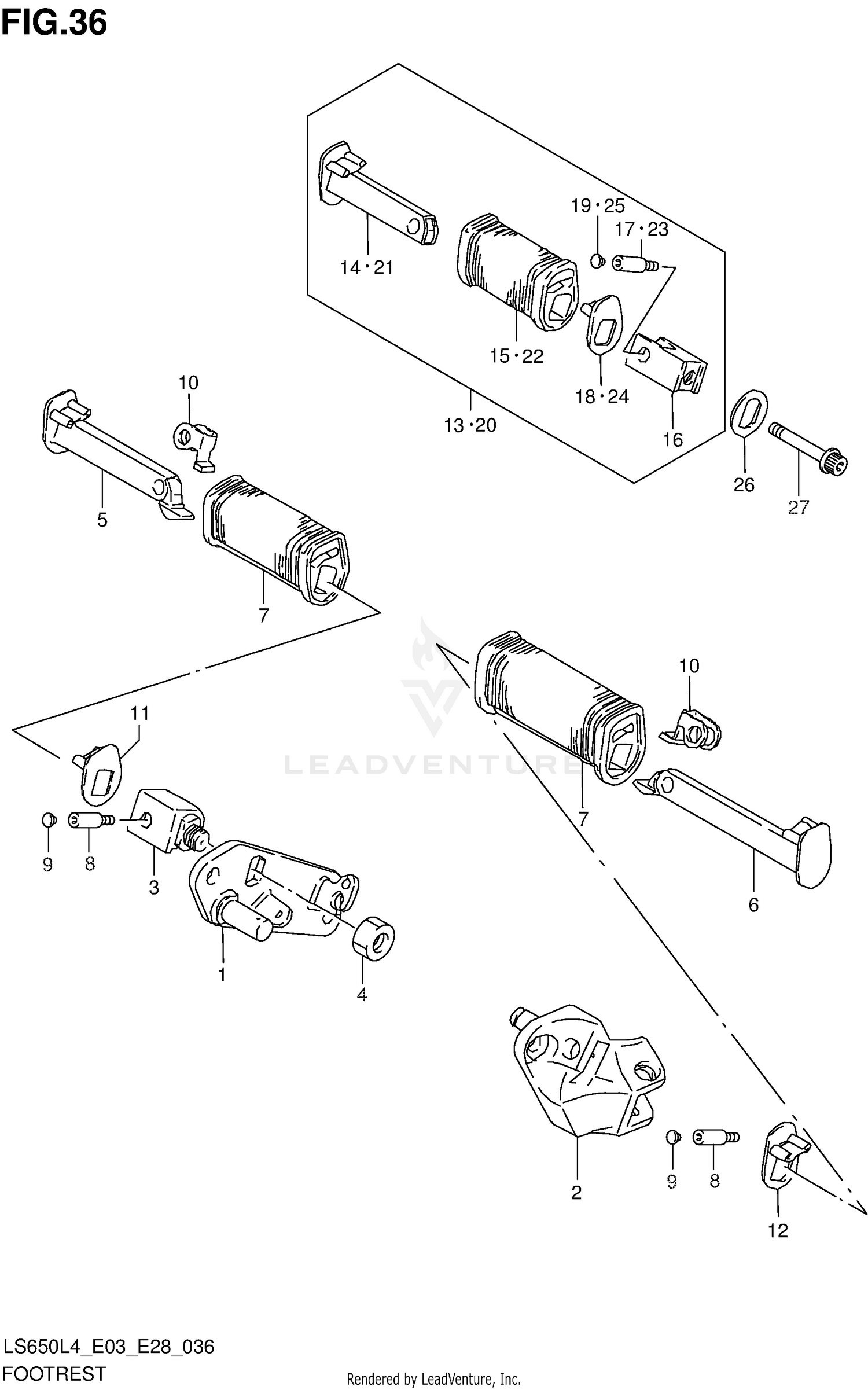

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43510-24B00
|
$191.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43520-24B22
|
$326.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, FRONT FOOTREST RH
43517-24B01
|
$115.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09140-16029
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAR, FRONT FOOTREST RH
43530-24B02
|
$72.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, FRONT FOOTREST LH
43540-24B02
|
$70.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, FRONT FOOTREST
43551-38A00
|
$19.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X8)
09106-06100
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, FRONT FOOTREST RUBBER BOLT
43576-24B00
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, FRONT FOOTREST
43570-24B01
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, FRONT FOOTREST RH
43470-24B00
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, FRONT FOOTREST LH
43480-24B00
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#13
FOOTREST ASSY, PILLION RH
43600-24B00
|
$136.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAR, PILLION FOOTREST RH
43610-24B01
|
$39.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, PILLION FOOTREST
43651-24B00
|
$23.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, PILLION FOOTREST
43621-24B10
|
$66.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X8)
09106-06100
|
$6.81 | ||
|
Unavailable |
|||
|
#18
WASHER, PILLION FOOTREST RH
43570-38A00
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, PILLION FOOTREST BOLT
43576-24B00
|
$3.88 | ||
|
Unavailable |
|||
|
#20
FOOTREST ASSY, PILLION LH
43700-24B00
|
$119.68 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAR, PILLION FOOTREST LH
43710-24B01
|
$38.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER, PILLION FOOTREST
43651-24B00
|
$23.51 | ||
|
Unavailable |
|||
|
#23
BOLT (6X8)
09106-06100
|
$6.81 | ||
|
Unavailable |
|||
|
#24
WASHER, PILLION FOOTREST LH
43580-38A00
|
$6.14 | ||
|
Unavailable |
|||
|
#25
CAP, PILLION FOOTREST BOLT
43576-24B00
|
$3.88 | ||
|
Unavailable |
|||
|
#26
WASHER, PILLION FOOTREST HOLDER
43622-24B00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT (10X45)
09106-10086
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
