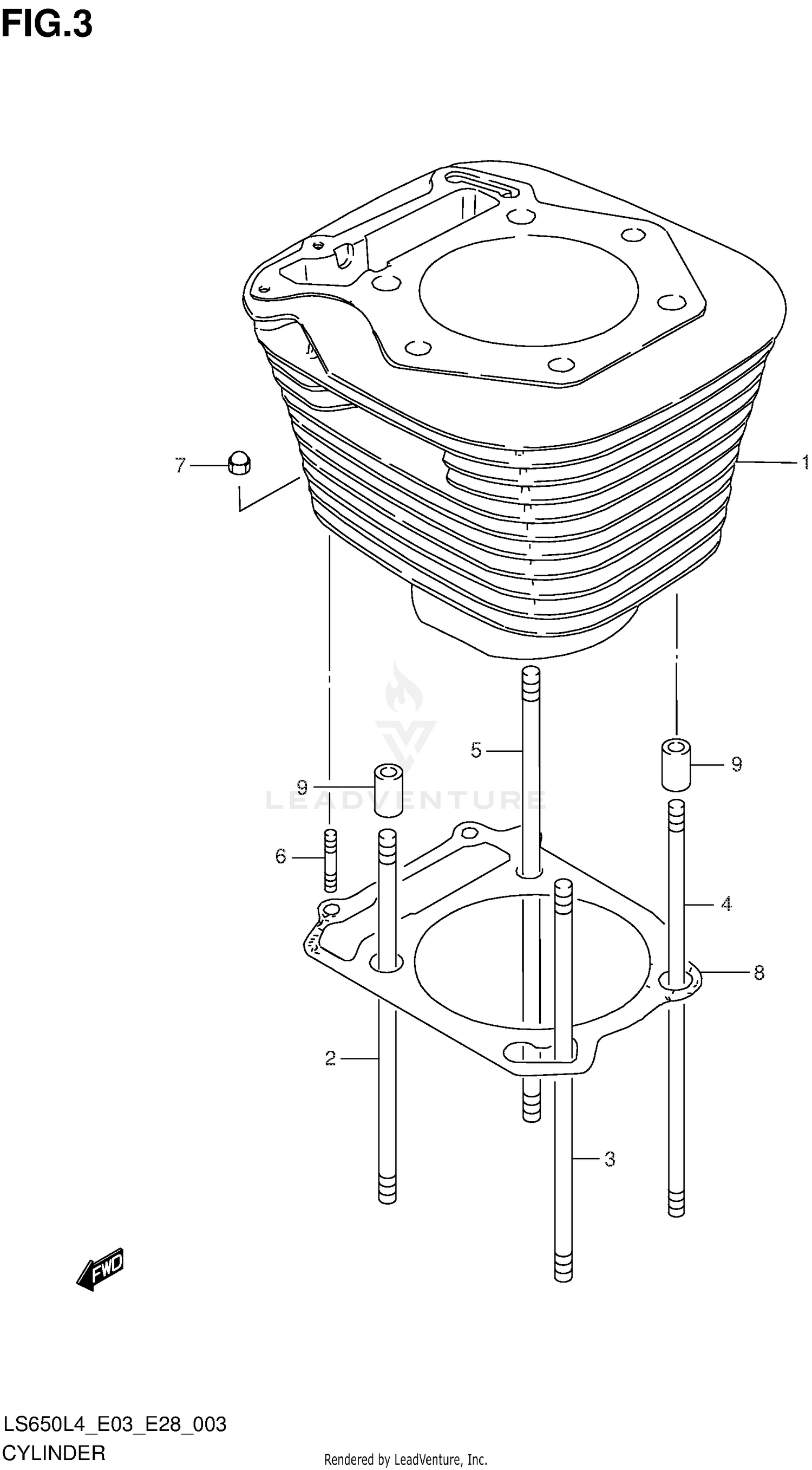

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
11210-24B07-0F0
|
$899.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
STUD BOLT
09108-09001
|
$11.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
STUD BOLT
09108-09002
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
STUD BOLT
09108-09003
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
STUD BOLT
09108-09004
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,STUD
01421-0620A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
.NUT
08313-20067
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, CYLINDER
11241-24B01-H17
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
