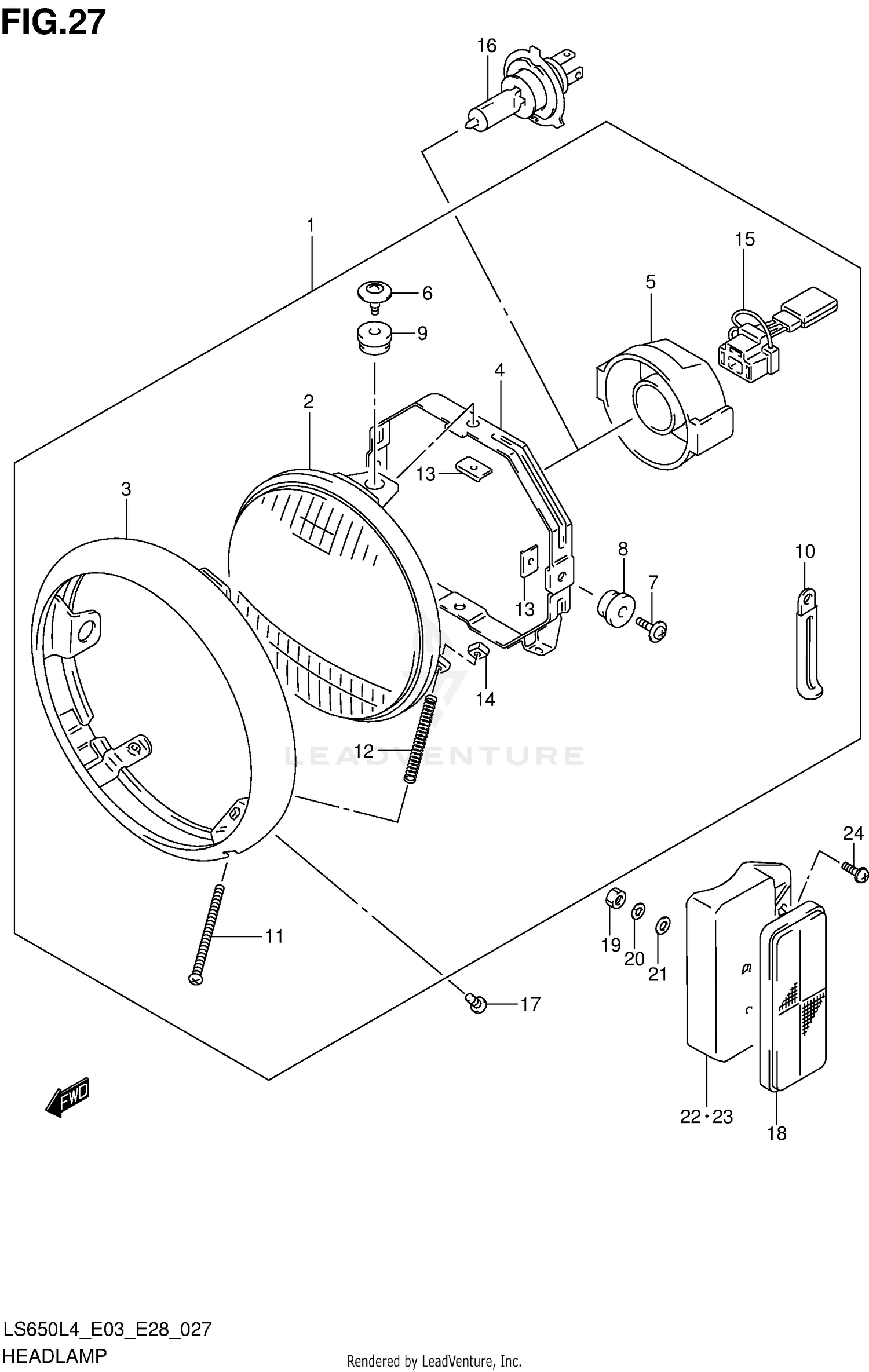

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-38A61-999
Superseded by 35100-38A62-999
|
$296.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNIT, LAMP
35121-38A60
|
$165.01 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM
35111-38A60
|
$52.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, MOUNTING
35130-38A00
|
$34.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER
35173-13E10
|
$26.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
35136-38A60
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SCREW,MOUNTING
35136-38A00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
35139-45230
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
..CUSHION
35139-38A60
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
09404-06432
Superseded by 09404-06039
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, ADJUSTING
35151-38A00
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
35154-31300
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
35155-38A60
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
.NUT
35152-45600
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
SOCKET
36853-38A00
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB (12V60/55W,H4)
09471-12060
|
$30.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW
02142-05127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
REFLEX REFLECTOR ASSY, FRONT SIDE
35950-43431
|
$19.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
.NUT
08310-0005B
Superseded by 08310-0005A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK WASHER
08321-0105B
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (5.5X16X1.2)
09160-05037
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, FRONT SIDE REAR RH
35956-24B00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, FRONT SIDE REAR LH
35957-24B00
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW (5X12)
09136-05026
|
$1.47 | ||
|
Unavailable |
|||
