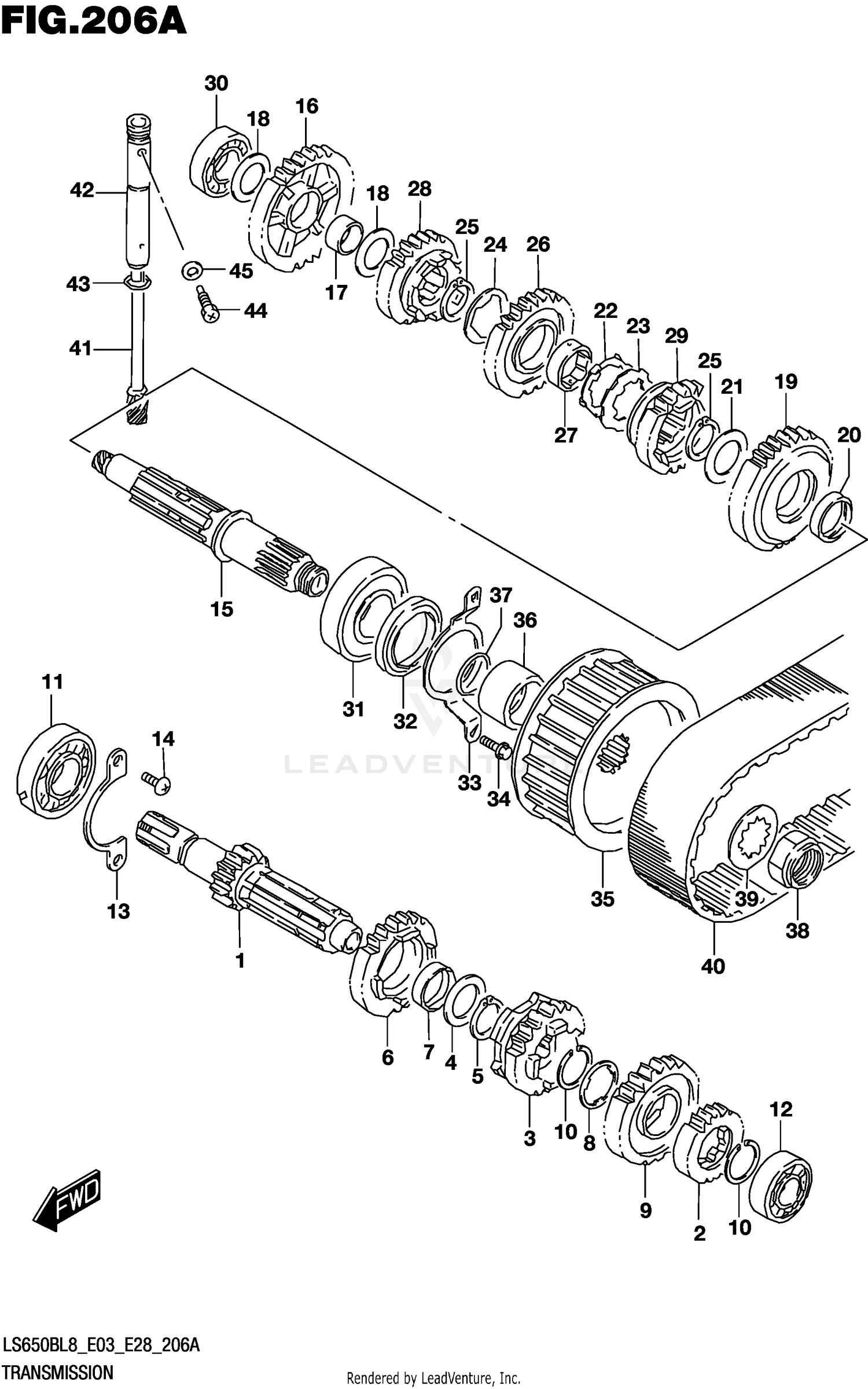

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:15)
24121-24B12
|
$238.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR
24221-24B21
|
$69.86 | ||
|
Unavailable |
|||
|
#3
GEAR
24231-24B30
|
$157.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
08211-25351
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING,SNAP
09380-25003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR
24241-24B20
|
$75.91 | ||
|
Unavailable |
|||
|
#7
BUSH, SUB T/M DRIVEN GR
24252-19F00
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,LOCK (25.1X31X1.0)
09167-25012
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR
24251-24B13
|
$119.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
09380-25010
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (22X56X16)
09262-22028
|
$97.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING (17X40X12)
09262-17027
|
$37.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
RETAINER
24741-24B00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02112-0612A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
DRIVE SHAFT
24130-24B12
|
$216.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR
24311-24B11
|
$100.11 | ||
|
Unavailable |
|||
|
#17
BUSH (20X24X13)
09300-20032
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIM (20X30X1)
09181-20195
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR
24321-24B20
|
$84.70 | ||
|
Unavailable |
|||
|
#20
BUSH (25X29X8)
09300-25020
|
$18.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
08211-25351
|
$4.05 | ||
|
Unavailable |
|||
|
#22
WASHER (25.1X37X2.5)
09169-25001
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,LOCK (25.1X41X1.5)
09167-25013
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
LOCK WASHER
09167-25016
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING,SNAP
09380-25003
|
$3.89 | ||
|
Unavailable |
|||
|
#26
GEAR
24331-24B20
|
$75.85 | ||
|
Unavailable |
|||
|
#27
BUSH
24332-24510
|
$21.08 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR
24341-24B20
|
$80.94 | ||
|
Unavailable |
|||
|
#29
GEAR
24351-24B13
|
$89.00 | ||
|
Unavailable |
|||
|
#30
BEARING (20X42X12)
09262-20106
|
$31.90 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING (25X62X17)
09262-25125
|
$75.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL (36X50X6)
09283-36003
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#33
RETAINER
24751-24B00
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
01547-0612A
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PULLEY
27510-24B01
|
$160.02 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPACER
27531-24B00
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#37
O RING (D:2.4,ID:23.7)
09280-24010
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#39
LOCK WASHER
09167-25027
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#40
BELT
27611-24B00-133
|
$383.78 | ||
|
Available to order. Add to View Price |
|||
|
#41
GEAR
26131-24B00
|
$35.42 | ||
|
Available to order. Add to View Price |
|||
|
#42
SLEEVE
26481-24B01
|
$47.27 | ||
|
Available to order. Add to View Price |
|||
|
#43
O RING (D:1.3
09280-10001
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT (6X10)
09135-06501
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#45
GASKET (6.2X11X1.2)
09168-06004
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
