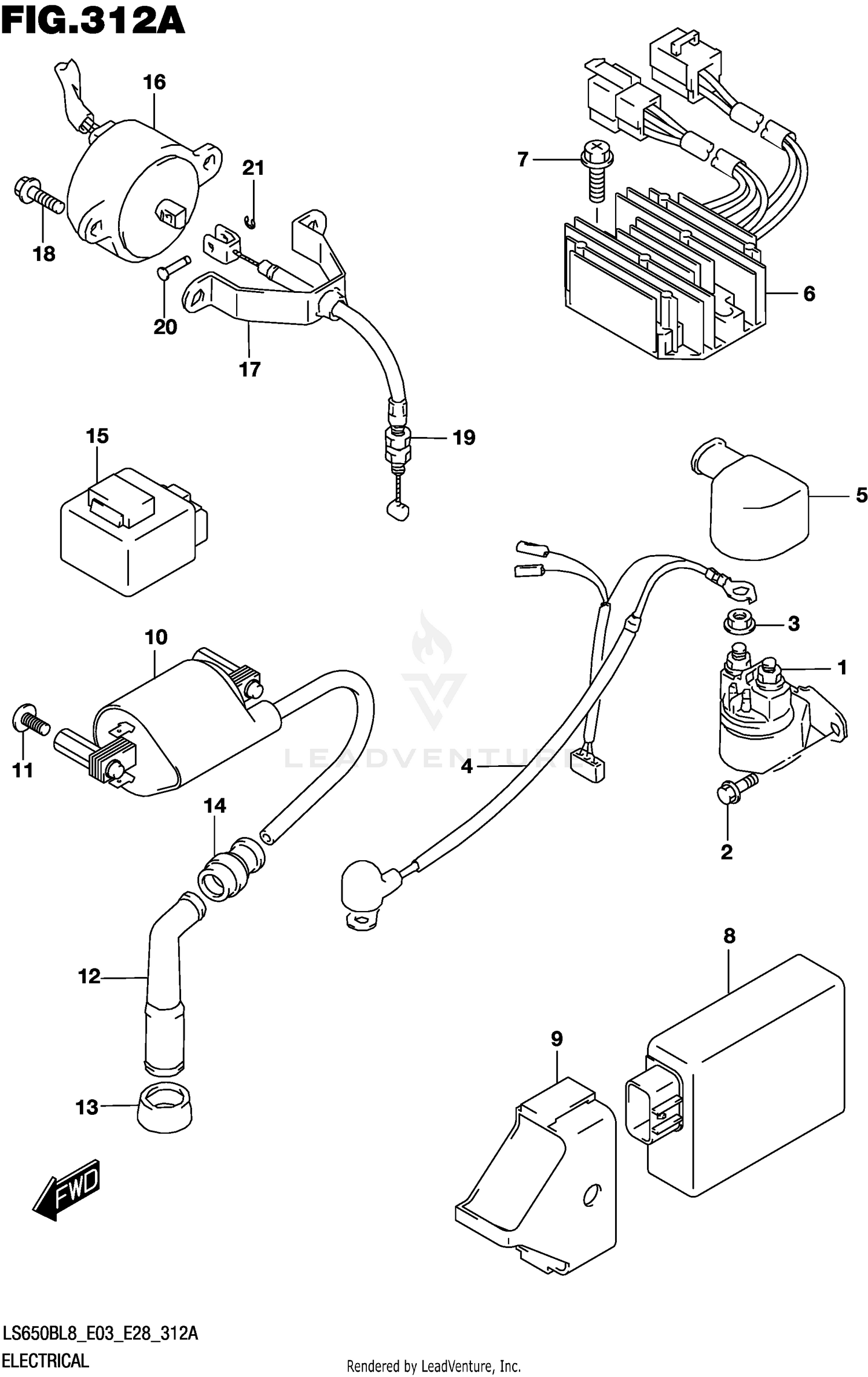

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY
31800-49100
|
$120.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01550-0610A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
08361-3506A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE
33850-24B10
|
$54.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
33624-49401
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER ASSY
32800-24B11
|
$307.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02162-0620C
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
IGNITER ASSY
32900-24B30
|
$944.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
32980-24B00
|
$12.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
COIL ASSY
33410-24B00
|
$174.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SCREW
02142-0512A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP
33510-45010
|
$31.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, SPARK PLUG
33541-48H01
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, HIGH TENSION CORD
33542-48H01
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONTROL UNIT
32910-24B10
|
$151.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
SOLENOID ASSY
33970-24B00
|
$363.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET
33971-24B00
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01550-0616A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE ASSY
58900-24B01
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN (4X12.5)
09209-04020
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
E RING
08332-1103A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
