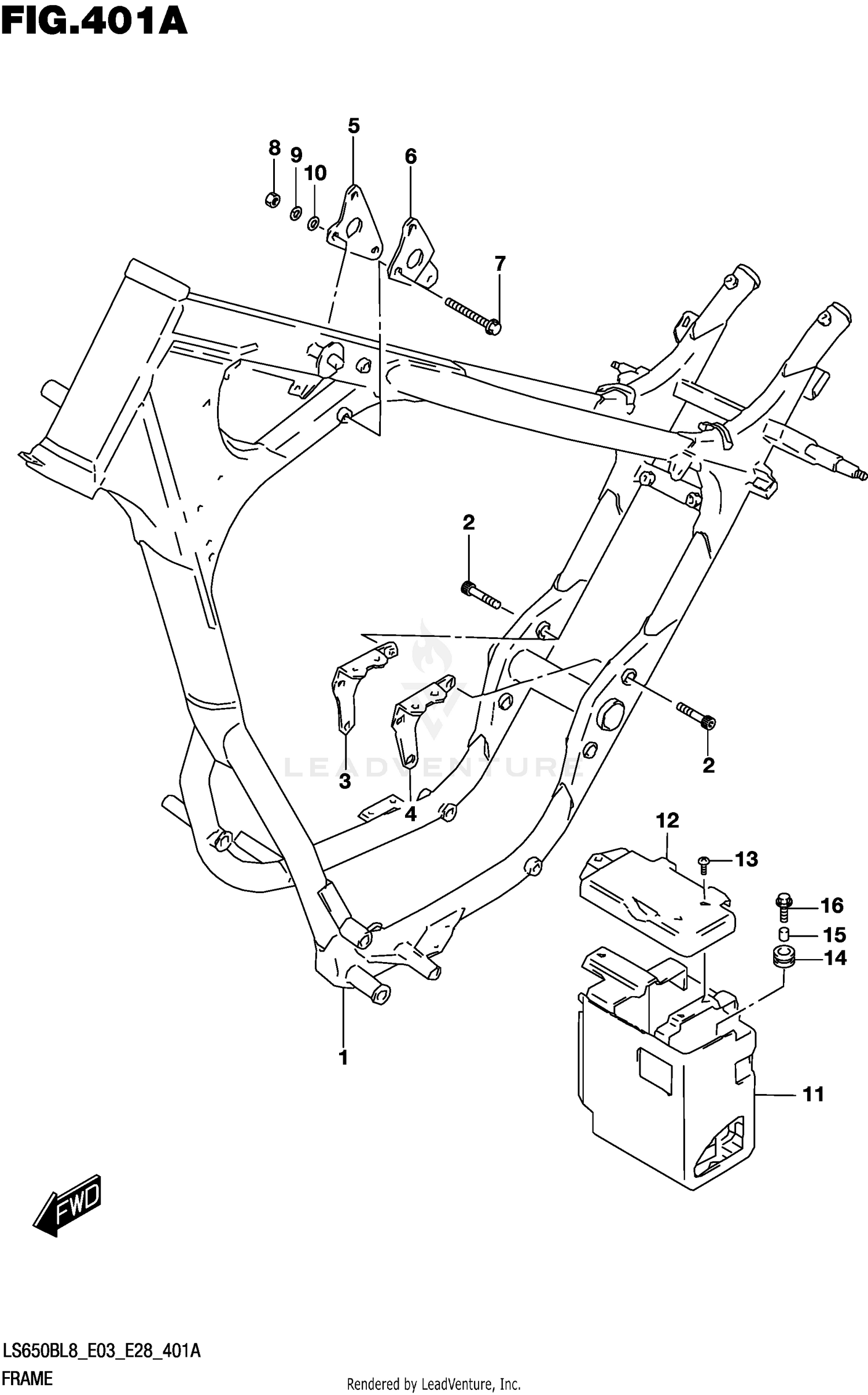

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-24B11-019
|
$1,603.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (8X40)
09106-08074
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE
41970-24B00-019
|
$11.59 | ||
|
Unavailable |
|||
|
#3
PLATE
41970-24B00-019
|
$11.59 | ||
|
Unavailable |
|||
|
#4
PLATE
41980-24B00-019
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE
41980-24B00-019
|
$18.07 | ||
|
Unavailable |
|||
|
#5
PLATE
41991-24B00-019
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE
41991-24B00-019
|
$10.45 | ||
|
Unavailable |
|||
|
#6
PLATE
41992-24B00-019
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE
41992-24B00-019
|
$10.45 | ||
|
Unavailable |
|||
|
#7
BOLT (8X72)
09103-08279
|
$3.89 | ||
|
Unavailable |
|||
|
#8
NUT
08319-2108A
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK WASHER
08321-0108B
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
08322-0108B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER
41540-24B10
|
|||
|
Unavailable |
|||
|
#12
COVER
41576-24B10
|
$37.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02142-04107
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CUSHION (8.5X20X8)
09320-08021
Superseded by 09320-08510
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER (6.5X9X7.2)
09180-06260
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X20)
09116-06010
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
