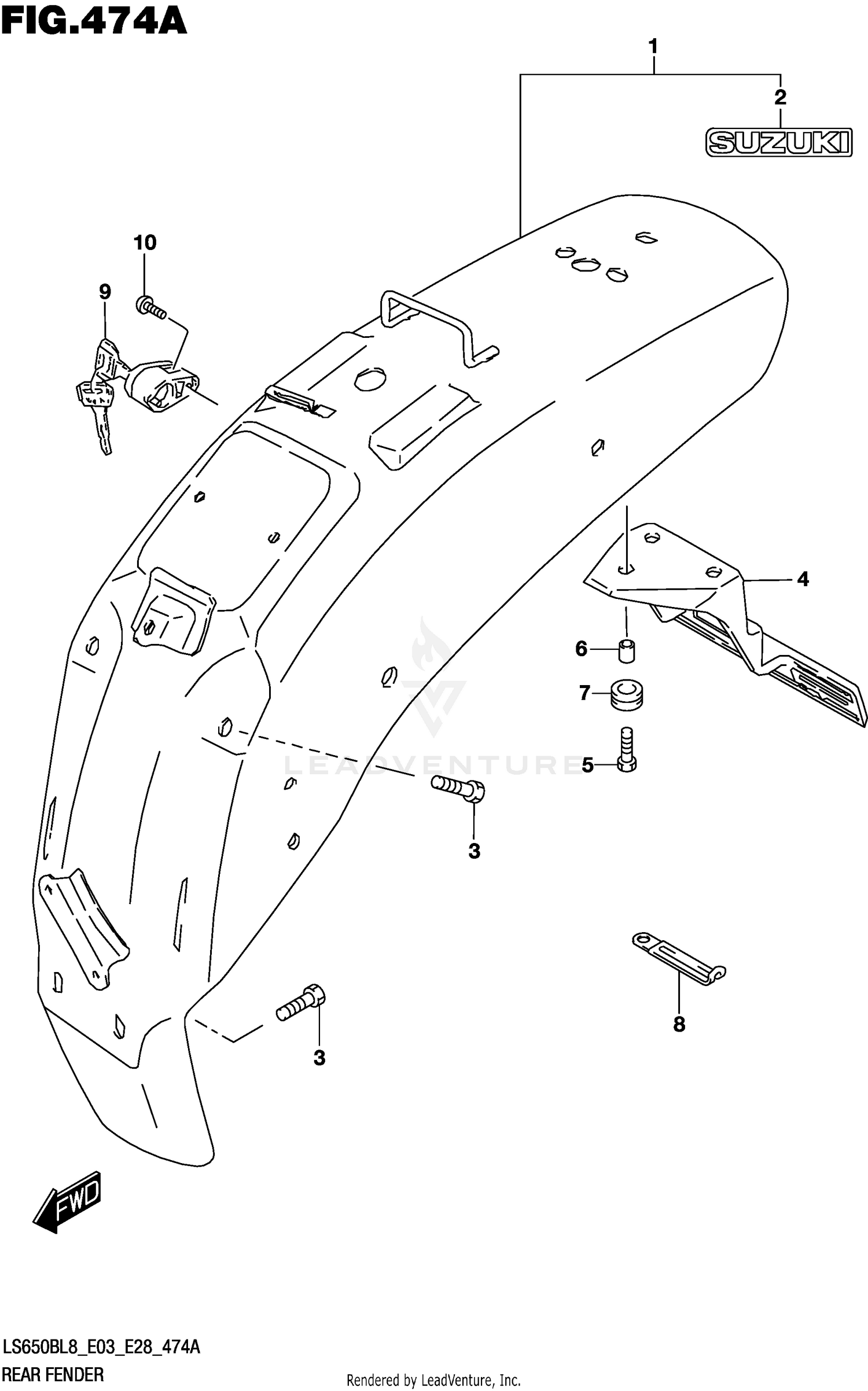

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER ASSY,REA
63100-24C00-YKV
Superseded by 63100-24C02-YKV
|
$377.23 | ||
|
Unavailable |
|||
|
#2
.EMBLEM
68271-34A00-CRU
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X25)
09103-08419
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET
35916-24B21
|
$72.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X20)
09116-06010
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER (6.5X9X9)
09180-06263
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-09016
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#9
LOCK SET
95700-38821
|
$72.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-0510A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
