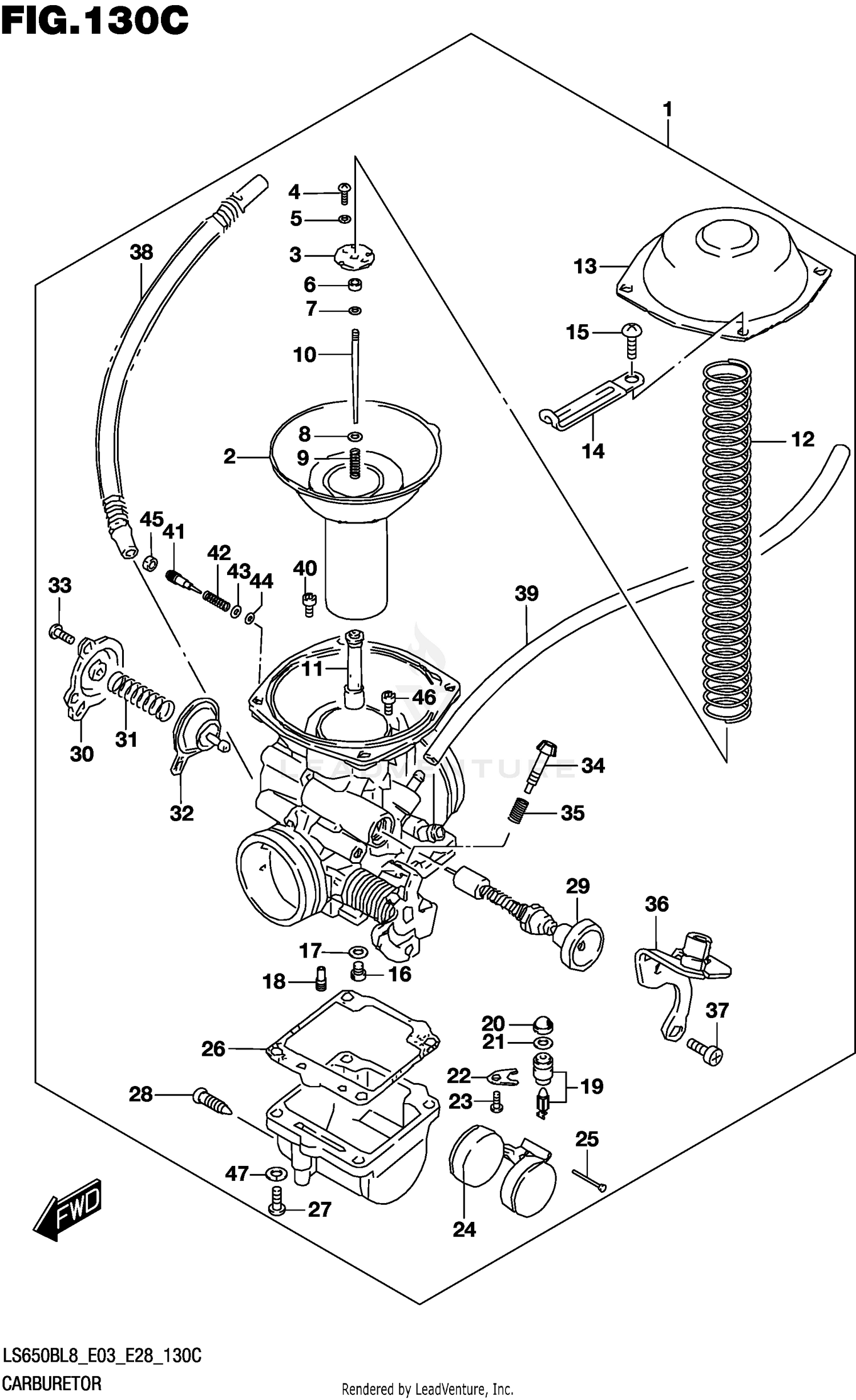

Carburetor (ls650bl8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-24C51
Superseded by 13200-24C52
|
$1,113.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIAPHRAGM ASSY
13500-24B40
Superseded by 13500-24B41
|
$247.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PLATE
13389-37400
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SCREW
02112-0306B
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
.LOCK WASHER
08321-2103B
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
.RING
13387-44030
|
$7.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
.CLIP,NEEDLE
13394-31210
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
.WASHER
13382-44030
|
$4.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.SPRING
13388-44030
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
.NEEDLE
13383-24C40
|
$19.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
.JET
09494-00861
|
$54.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SPRING
13503-24B00
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
.COVER
13502-37400
|
$35.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-0510A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
.JET
09491-29013
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
.WASHER
13382-03110
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
.JET
09492-52010
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
.VALVE ASSY
13370-24C80
|
$93.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
.FILTER
13376-19F00
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
.O RING,NEEDLE VALVE SEAT
13374-35C00
|
$7.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
.PLATE
13373-99E10
|
|||
|
Unavailable |
|||
|
#23
.SCREW
02112-0406B
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
.FLOAT
13250-37400
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
.PIN,FLOAT
13254-92311
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#26
.GASKET
13251-37101
|
$13.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
02112-0516A
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$6.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
.PLUNGER ASSY
13411-24C00
|
$61.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
.COVER
13484-38A10
|
$24.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
.SPRING
13481-24B00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#32
DIAPHRAGM ASSY
13480-05A10
Superseded by 13480-05A11
|
$65.77 | ||
|
Available to order. Add to View Price |
|||
|
#33
.SCREW
02112-0410A
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#34
.ADJUSTER
13267-25D00
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
|
#35
.SPRING
13271-93011
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#36
.BRACKET ASSY
13621-24B01
|
$54.11 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
02112-0510A
|
$1.73 | ||
|
Unavailable |
|||
|
#38
HOSE ASSY
13318-24C00
Superseded by 13318-24C01
|
$23.59 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#40
.JET
09491-46005
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#41
.SCREW
13269-37400
|
$14.43 | ||
|
Available to order. Add to View Price |
|||
|
#42
.SPRING
13268-47070
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#43
.WASHER (14X17)
13291-29900
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#44
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
.PLUG
13281-05A00
|
$5.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
.JET (45)
09491-45002
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#47
.LOCK WASHER
08321-0105A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
