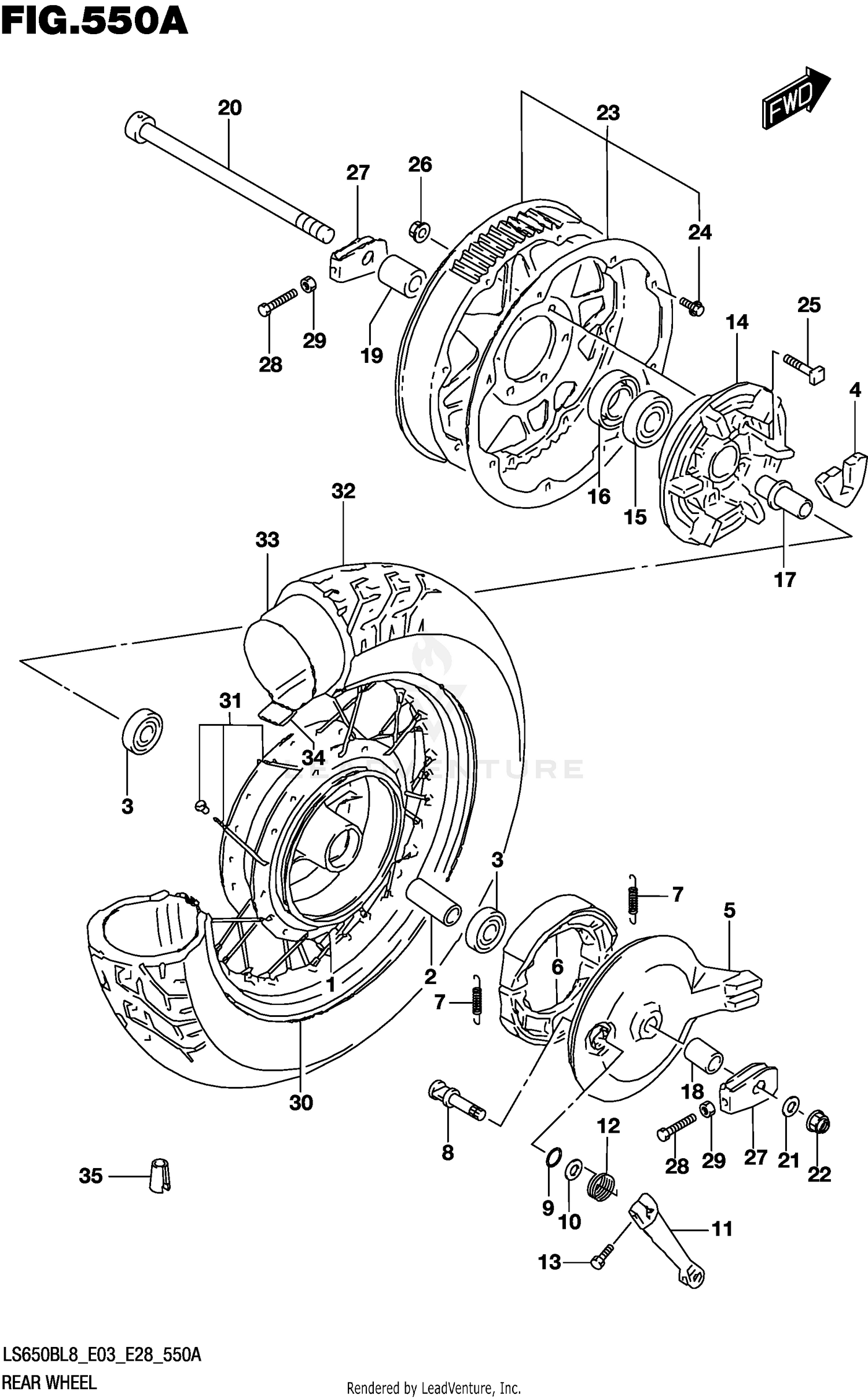

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB
64110-24B20
|
|||
|
Unavailable |
|||
|
#2
SPACER (17.5X25X70)
09180-17069
|
$25.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
08143-63037
|
$27.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
ABSORBER
64651-31001
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
PANEL
64210-24B20
|
|||
|
Unavailable |
|||
|
#6
SHOE
64400-44810
|
$55.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING,BRAKE SHOE
55420-30000
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAM
54440-08004
|
$29.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING (D:1.9,ID:14.5)
09280-15003
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (15.5X24X1.6)
09160-15048
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER
64451-24B00
|
$62.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09448-33006
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01570-0625B
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
DRUM
64611-24B00
|
|||
|
Unavailable |
|||
|
#15
BEARING (25X62X17)
09262-25073
|
$31.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (33X62X7)
09285-33001
|
$16.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
RETAINER
64733-31300
|
$25.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (17X28X22.3)
09180-17082
|
$10.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER (17X33X35.3)
09180-17083
|
$18.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
AXLE
64711-24B02
|
$69.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (17X30X3.2)
09160-17050
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
09159-16002
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPROCKET
64510-24B10
|
$654.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01550-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (10X40)
09105-10005
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08319-3110B
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#27
ADJUSTER
61410-24B01
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT (8X43)
09104-08027
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
08310-00087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
RIM
65311-24B10
|
$264.12 | ||
|
Available to order. Add to View Price |
|||
|
#30
RIM
65311-24B10
|
$264.12 | ||
|
Unavailable |
|||
|
#31
SPOKE SET
65320-24B00
|
$112.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
TIRE,RR,(140/80
65100-24B02
Superseded by 65100-24B03
|
$268.64 | ||
|
Available to order. Add to View Price |
|||
|
#32
TIRE,RR,(140/80
65100-24B02
Superseded by 65100-24B03
|
$268.64 | ||
|
Unavailable |
|||
|
#33
TUBE ASSY,WHEEL
65200-26F10
Superseded by 65200-26F11
|
$56.88 | ||
|
Unavailable |
|||
|
#34
PROTECTOR
65261-26F10
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#35-1
BALANCER,WHEEL (15G)
55411-26G00
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#35-2
BALANCER,WHEEL (30G)
55413-41F00
|
$9.52 | ||
|
Available to order. Add to View Price |
|||
