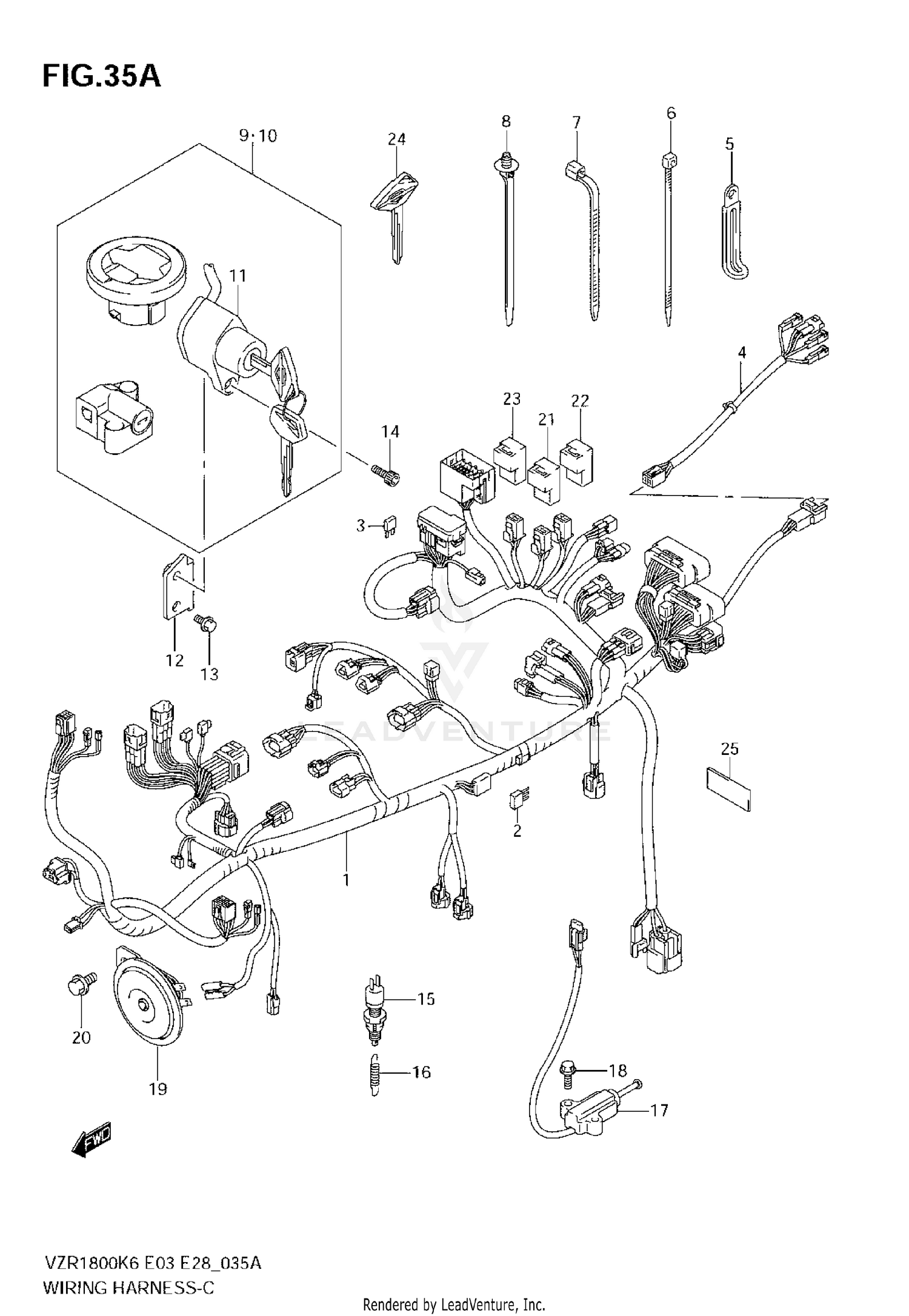

Wiring Harness (vzr1800nk8/nk9) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-48G80
|
$812.25 | ||
|
Unavailable |
|||
|
#2
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (10A)
09481-10501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (15A)
09481-15501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE,RR COMB
36858-48G00
Superseded by 36858-48G01
|
$78.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, WIRING HARNESS (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#6
CLAMP, WIRING HARNESS (L:145)
09407-14407
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WIRING HARNESS (L:95)
09407-11401
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WIRING HARNESS (L:125)
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLAMP, WIRING HARNESS (L:165)
09407-18402
|
$2.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLAMP, WIRING HARNESS (L:190)
09407-19401
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WIRING HARNESS (L:235)
09407-25401
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:154)
09407-17403
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK SET
37000-48860
Superseded by 37000-48863
|
$468.89 | ||
|
Unavailable |
|||
|
#10
LOCK SET
37000-48870
|
$394.50 | ||
|
Unavailable |
|||
|
#11
SWITCH ASSY, IGNITION
37110-48G30
|
$219.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, IGNITION SWITCH
37119-48G00
|
$9.66 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, IGNITION SWITCH BRACKET
01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SWITCH ASSY, STOP LAMP
37740-24A00
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, STOP LAMP SWITCH
09443-06077
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY,SIDE STAND
37840-25D00
Superseded by 37840-25D02
|
$65.20 | ||
|
Unavailable |
|||
|
#18
SCREW, SIDE STAND SWITCH
01550-0625A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
HORN ASSY
38500-48G00
Superseded by 38500-48G01
|
$94.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (8X12)
01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
RELAY ASSY, FUEL PUMP
38740-24X50
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
RELAY ASSY, FAN MOTOR
38740-24X50
|
$55.84 | ||
|
Unavailable |
|||
|
#23
RELAY ASSY, HEADLAMP
38740-24A00
|
$68.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
KEY, BLANK BOULEVARD
37146-10F00
|
$53.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
PROTECTOR (20X45X1.0)
33652-48G00
|
$1.84 | ||
|
Unavailable |
|||
