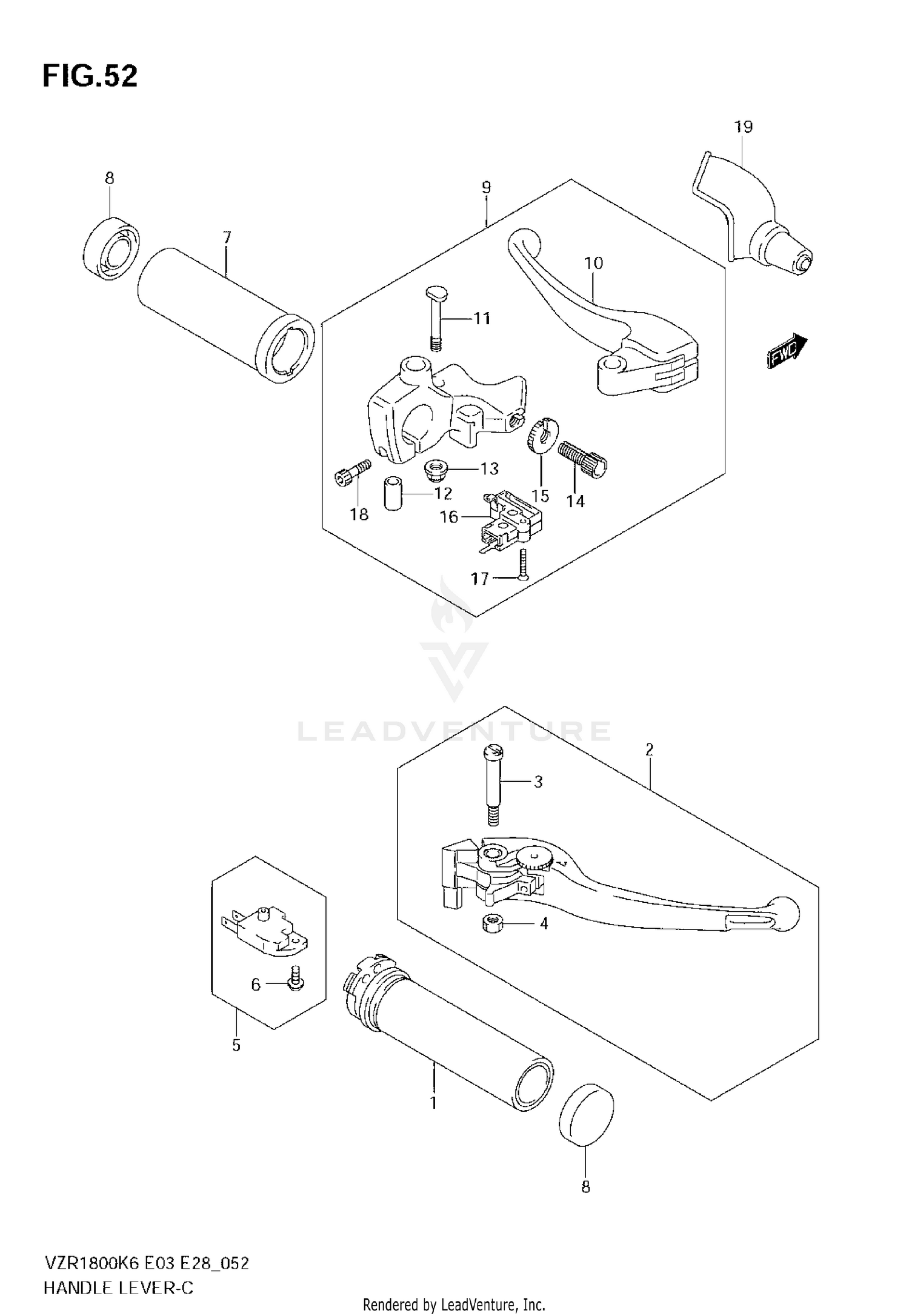

Handle Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP COMP,THROT
57110-26D00
Superseded by 57110-26D01
|
$72.37 | ||
|
Available to order. Add to View Price |
|||
|
#1
GRIP,THROTTLE
57110-26D10
Superseded by 57110-26D11
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER ASSY, BRAKE
57300-48G00
|
$86.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER ASSY, BRAKE
57300-48G10
|
$65.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, PIVOT
57431-48G00
|
$10.43 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08319-2106A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY,FR BRAKE
57460-17C11
Superseded by 57460-14J02
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP,L
57210-26D00
Superseded by 57210-26D01
|
$39.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, GRIP END
57216-38A00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER ASSY,CLUT
57500-48G00
Superseded by 57500-48G03
|
$92.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER ASSY,CLUTCH
57500-48G10
Superseded by 57500-48G14
|
$109.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CLUTCH
57621-48G00
|
$51.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
.LEVER, CLUTCH
57621-48G10
Superseded by 57621-48G11
|
$44.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, PIVOT
57531-48G00
|
$42.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
57623-48G00
|
$33.86 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08319-3106B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
.ADJUSTER,WIRE
57441-08C00
Superseded by 57441-08C01
|
$15.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
.NUT,LOCK
57442-08C00
Superseded by 57442-08C01
|
$10.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SWITCH,CLUTCH
57560-05A00
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SWITCH ASSY,CLUTCH
57560-05A10
|
$40.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02112-0320B
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
07130-0620A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER,CLUTCH LE
57541-48G00
Superseded by 57541-48G01
|
$14.47 | ||
|
Unavailable |
|||
|
#19
COVER,CLUTCH LEVER
57541-48G10
Superseded by 57541-48G11
|
$14.22 | ||
|
Available to order. Add to View Price |
|||
