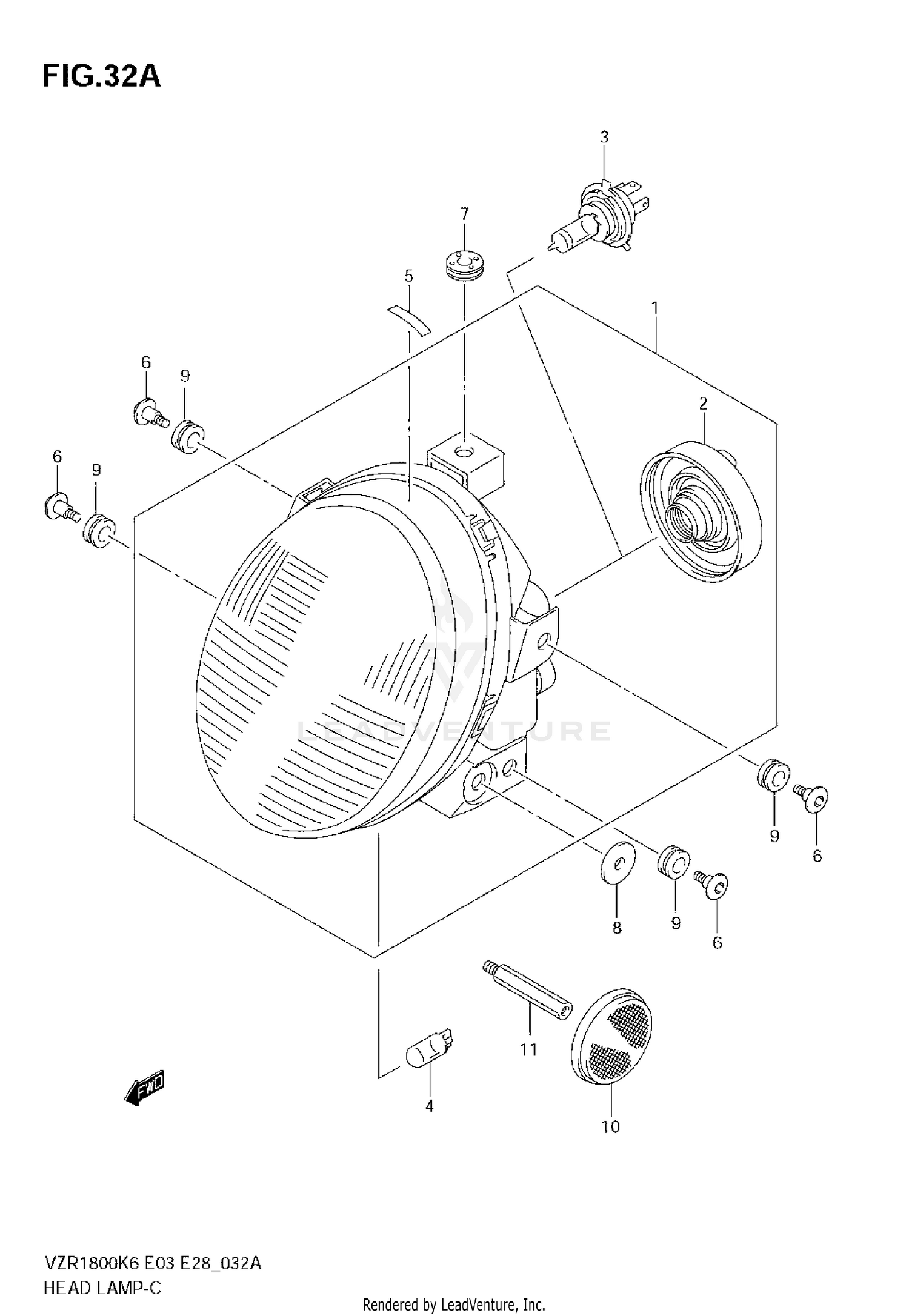

Headlamp (vzr1800nk8/nk9) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-48GB0-999
|
$489.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER
35173-14G00
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V60/55W,H4)
09471-12060
|
$31.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
.BULB (12V5W)
09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
.TAPE (6X25X0.13)
94443-06G00
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, HEADLAMP
09139-06126
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-08028
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CUSHION, HEADLAMP
09320-06026
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, HEADLAMP
09320-09501
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
REFLEX REFLECTOR ASSY,FR SIDE
35950-14A10
Superseded by 35950-14A11
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FRONT SIDE REFLECTOR
09119-06104
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
