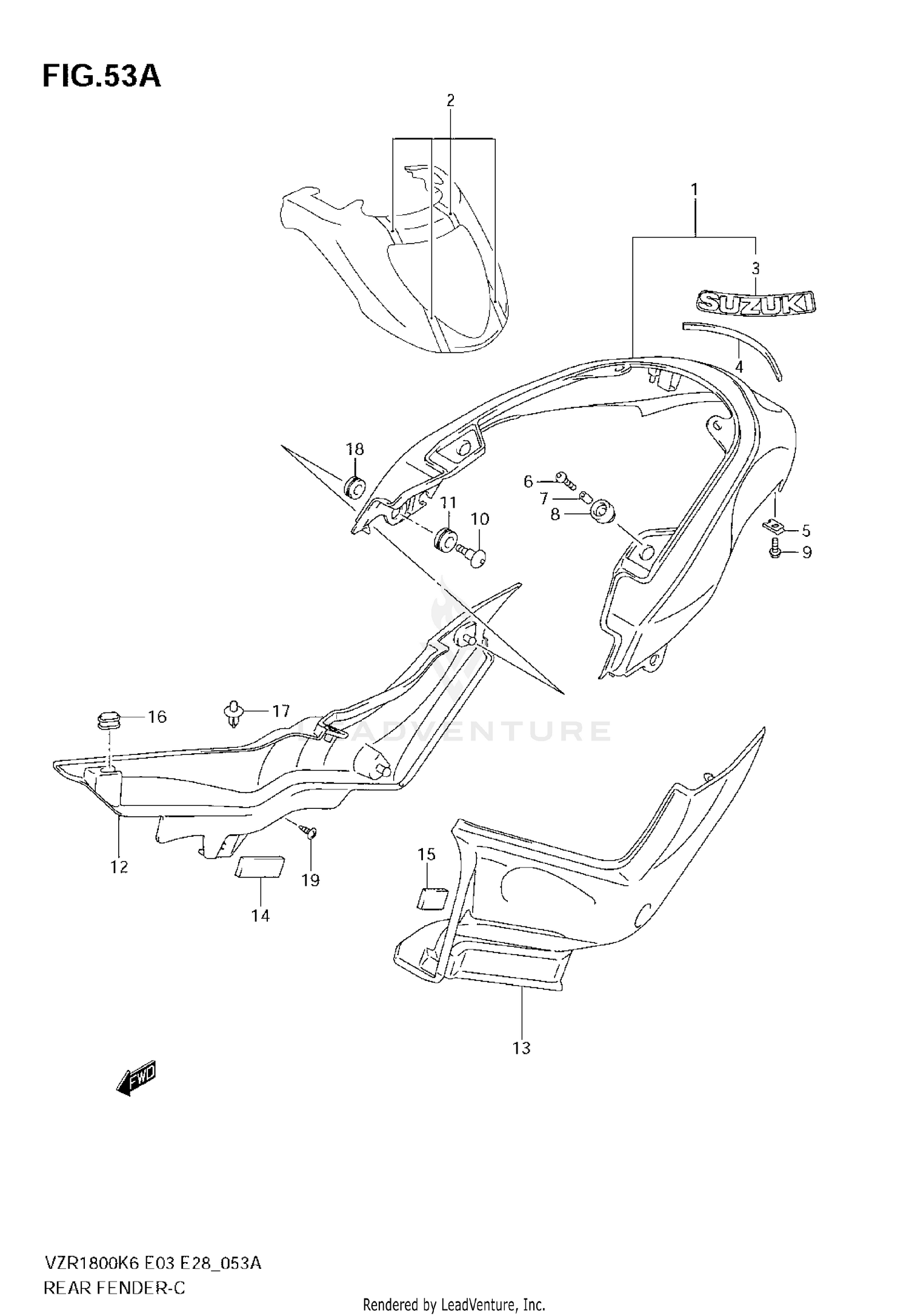

Rear Fender (vzr1800zk7/zk8) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR
63110-48G50-CWH
|
$901.70 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, REAR
63110-48G50-FGM
|
$850.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE SET
68170-48G50-CWH
|
$23.77 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68170-48G50-FGN
|
$39.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM
68161-44GA0-EGU
|
$9.46 | ||
|
Unavailable |
|||
|
#3
EMBLEM
68161-44GA0-FGP
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION, LAMP
63117-39G00
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,COWL
94484-24F00
|
$5.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, FRONT
09139-06030
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
09180-06286
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09320-10045
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, CENTER
09139-06120
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, REAR
09139-06126
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, FENDER RH (BLUE)
63171-48G50-YKY
Superseded by 63171-48G51-YKY
|
$183.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, REAR FENDER RH (YELLOW)
63171-48G50-YMF
|
$230.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, FENDER LH (BLUE)
63181-48G50-YKY
Superseded by 63181-48G51-YKY
|
$230.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, REAR FENDER LH (YELLOW)
63181-48G50-YMF
|
$230.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION,FUEL PIPE
15439-70G10
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION,FRAME COVER
47161-19C00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION,FUEL TANK COVER
44276-29G00
Superseded by 44276-29G01
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP (BLACK)
09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CUSHION
09320-08028
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
