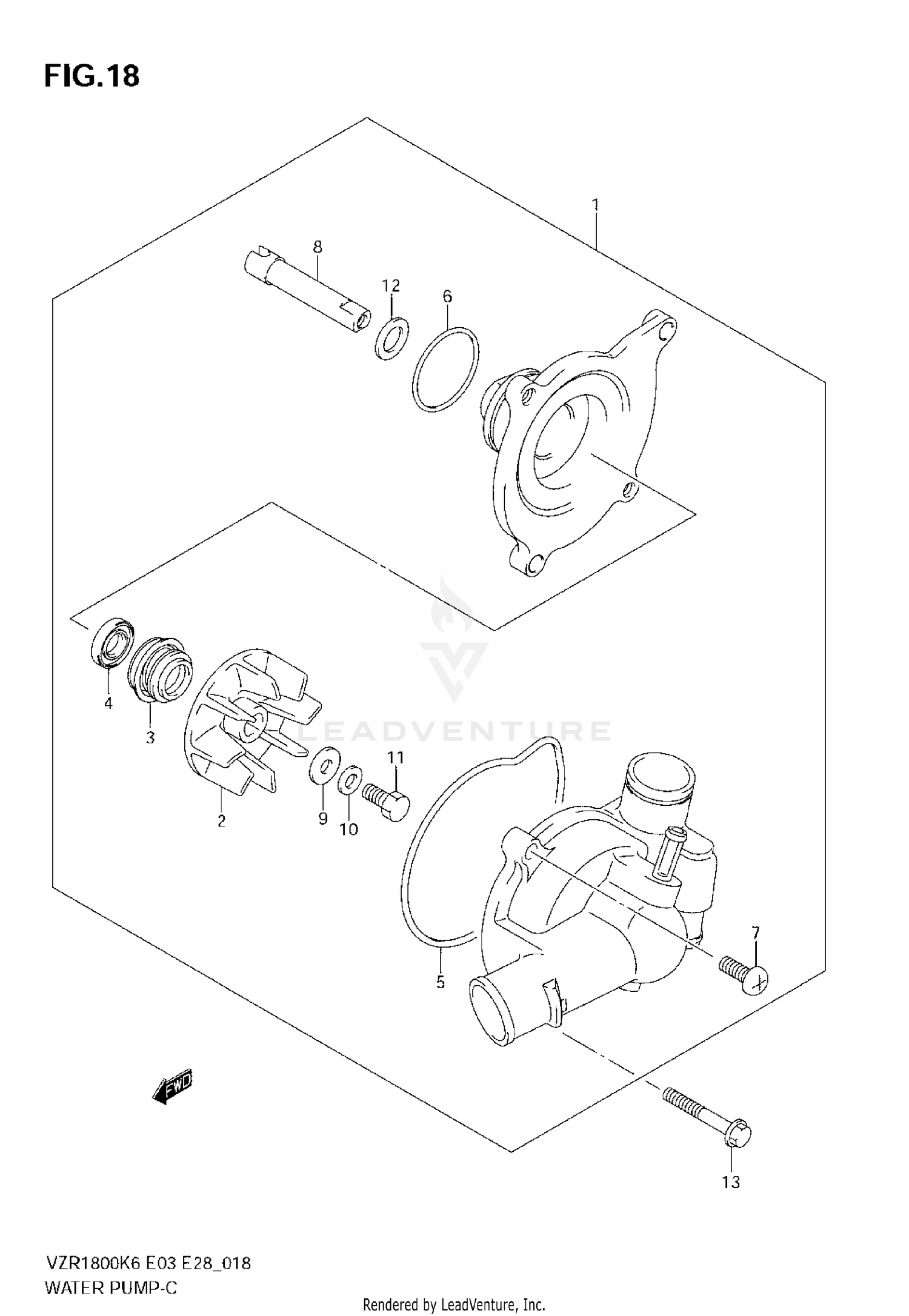

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-48G00
Superseded by 17400-48G01
|
$378.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
IMPELLER
17491-17E01
|
$34.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$36.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL (10X21X5)
09283-10004
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O RING
17418-33400
Superseded by 17418-33401
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O RING
17435-33400
|
$18.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SCREW
02112-0616B
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT
17511-48G00
|
$54.42 | ||
|
Unavailable |
|||
|
#9
WASHER
09168-06025
|
$3.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER
09164-06006
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT
09100-06099
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM
09181-10167
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-0635A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
