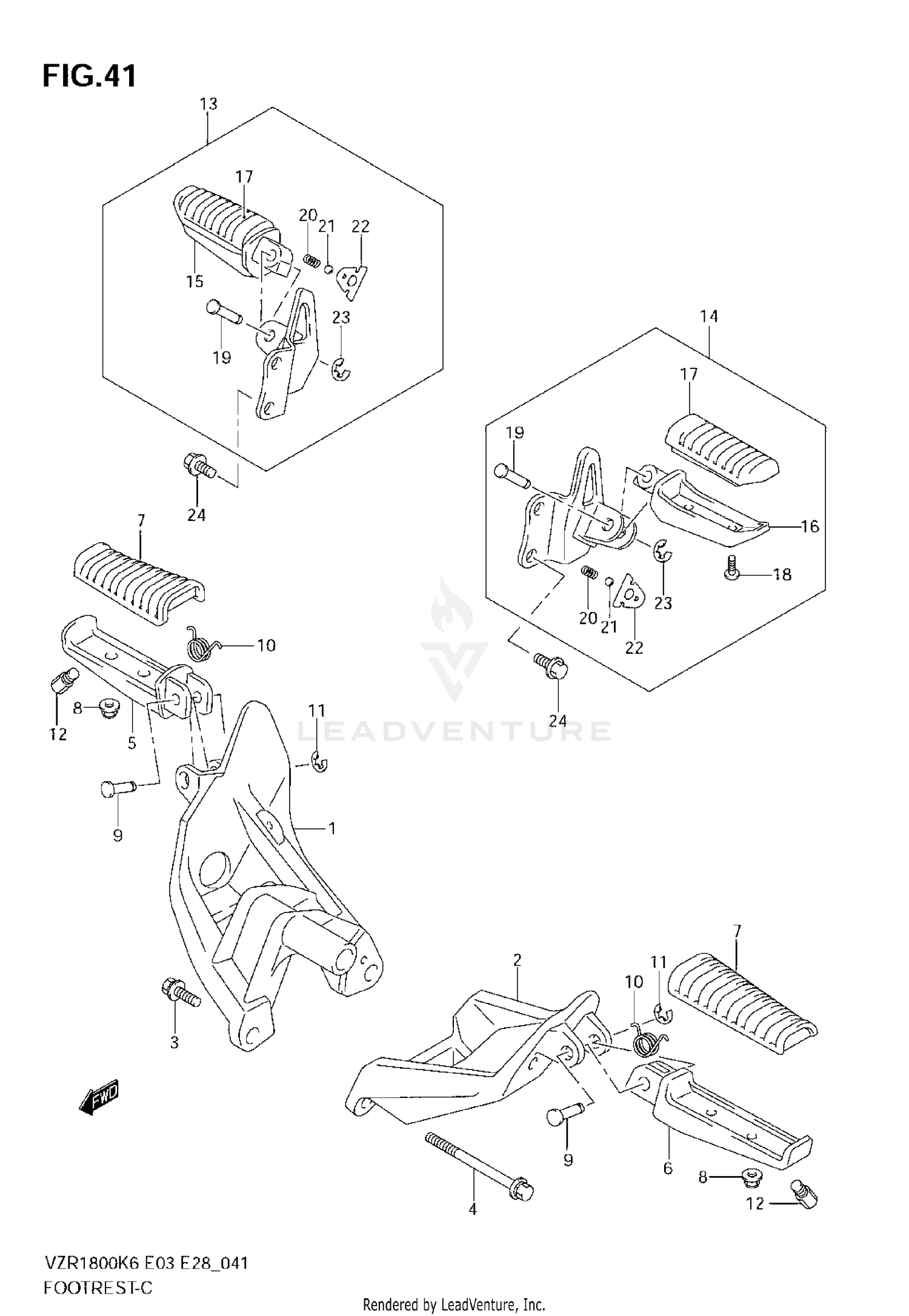

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43511-48G00
|
$1,130.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-48G01
|
$477.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
09103-10268
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, LH
01580-1085A
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAR, FRONT FOOTREST RH
43531-48G00
Superseded by 43531-48G01
|
$53.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, FRONT FOOTREST LH
43541-48G00
Superseded by 43541-48G01
|
$51.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER
43550-48G00
|
$38.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08319-2106A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
09208-08010
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SPRING
09448-14047
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
E RING
08332-1106B
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BOLT,BANK SENSOR
43576-07D01
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
FOOTREST, PILLION RH
43600-48G00
|
$197.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
FOOTREST, PILLION LH
43700-48G00
|
$197.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAR, RH
43611-44G00
|
$61.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAR, LH
43621-44G00
|
$61.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER
43550-44G00
|
$40.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
02142-05127
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
09208-08017
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09440-05005
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, PILLION
43816-44G00
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
E-RING
08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, BRACKET
09103-08412
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
