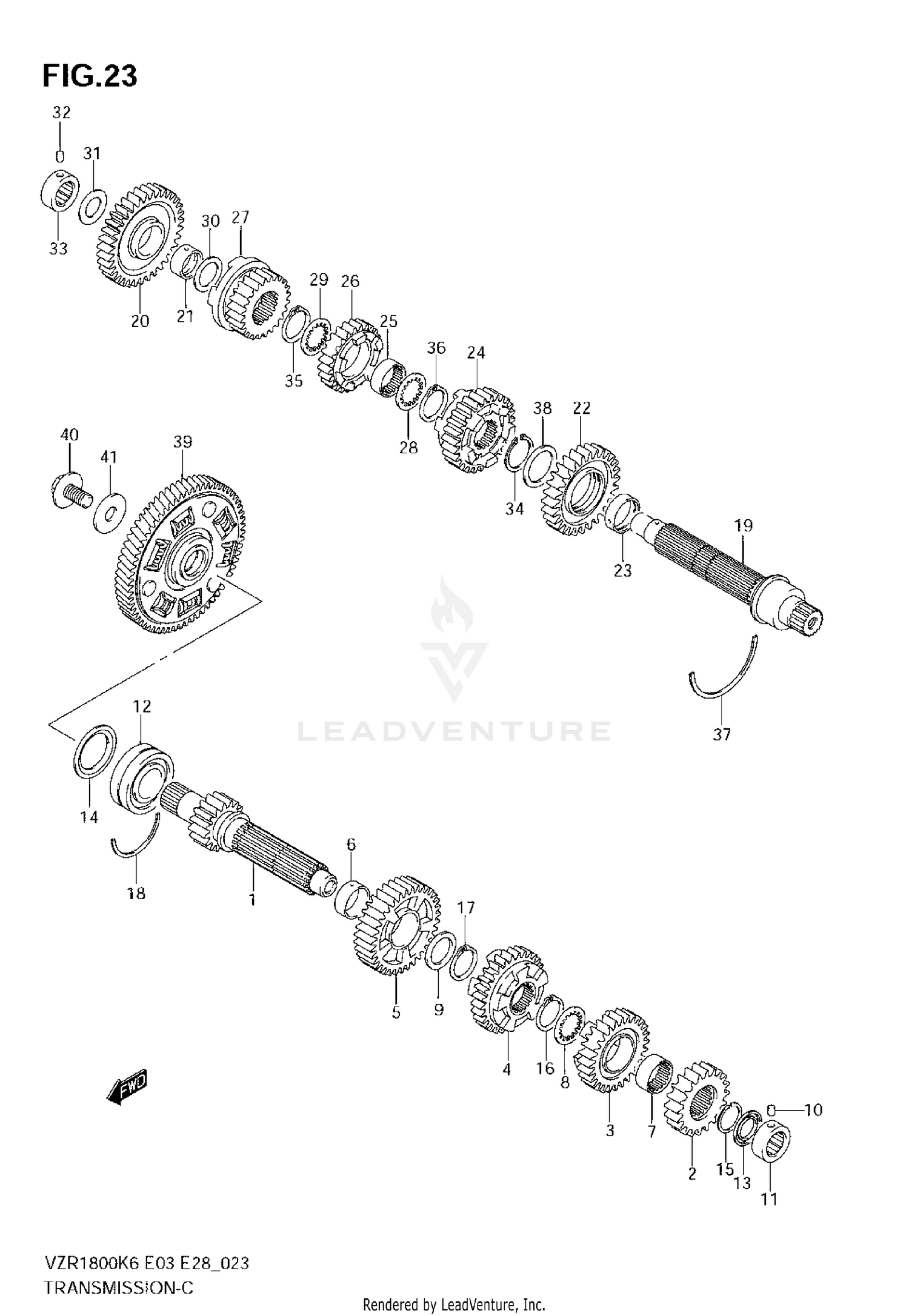

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER
24121-48G00
Superseded by 24121-48G10
|
$347.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:20)
24221-48G00
|
$165.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD DRIVE (NT:28)
24231-48G00
|
$198.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 4TH DRIVE (NT:29)
24241-48G00
|
$230.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 5TH DRIVE (NT:35)
24251-48G00
|
$227.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, 5TH DRIVE GEAR
24252-24F10
|
$38.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, 3RD DRIVE GEAR
24262-24F10
|
$38.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,LOCK (27X36X2.5)
09167-27003
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, 5TH DRIVE GEAR
09181-27014
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, CNTR SHAFT BRG, L
09261-06003
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CNTR SHAFT, L
09263-20087
|
$52.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CNTR SHAFT, R
09267-25012
|
$163.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, OIL
09285-20006
|
$7.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SEAL, COUNTER SHAFT, R
09285-34011
|
$25.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP, 2ND DRIVE GEAR
09380-27004
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP, 3RD DRIVE GEAR
09380-27006
|
$3.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CIRCLIP, 5TH DRIVE GEAR
09380-27006
|
$3.28 | ||
|
Unavailable |
|||
|
#18
C RING
09390-62012
|
$9.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, DRIVE
24130-48G01
|
$319.54 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 1ST DRIVEN (NT:35)
24311-48G00
|
$223.36 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, 1ST DRIVEN GEAR
24312-24F10
|
$38.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 2ND DRIVEN (NT:28)
24321-48G01
|
$222.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, 2ND DRIVEN GEAR
24322-48G00
|
$34.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 3RD DRIVEN (NT:27)
24331-48G00
|
$238.39 | ||
|
Available to order. Add to View Price |
|||
|
#25
BUSH, 4TH DRIVEN GEAR
24332-24F10
|
$36.88 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, 4TH DRIVEN (NT:24)
24341-48G00
|
$201.12 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, 5TH DRIVEN (NT:24)
24351-48G00
|
$219.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, 4TH DRIVEN GEAR
09167-30008
|
$6.43 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, 4TH DRIVEN GEAR
09167-30008
|
$6.43 | ||
|
Unavailable |
|||
|
#30
WASHER, 1ST DRIVEN GEAR
09181-20251
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, 1ST DRIVEN GEAR
09181-24005
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, DRIVE SHAFT BRG, R
09261-06003
|
$1.81 | ||
|
Unavailable |
|||
|
#33
BEARING, DRIVE SHAFT, R
09263-20087
|
$52.69 | ||
|
Unavailable |
|||
|
#34
CIRCLIP, 2ND DRIVEN GEAR
09380-30009
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP, 4TH DRIVEN GEAR, R
09380-30009
|
$4.25 | ||
|
Unavailable |
|||
|
#36
CIRCLIP, 4TH DRIVEN GEAR, L
09380-30009
|
$4.25 | ||
|
Unavailable |
|||
|
#37
C RING, DRIVE SHAFT BRG, L
09390-80004
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, 2ND DRIVEN GEAR
08211-30403
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#39
GEAR ASSY,PRIMA
21200-48850
Superseded by 21201-48810
|
$489.67 | ||
|
Unavailable |
|||
|
#40
BOLT (12X24)
09103-12084-A05
Superseded by 09103-12084
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PRIMARY DRIVEN
09160-12045
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
