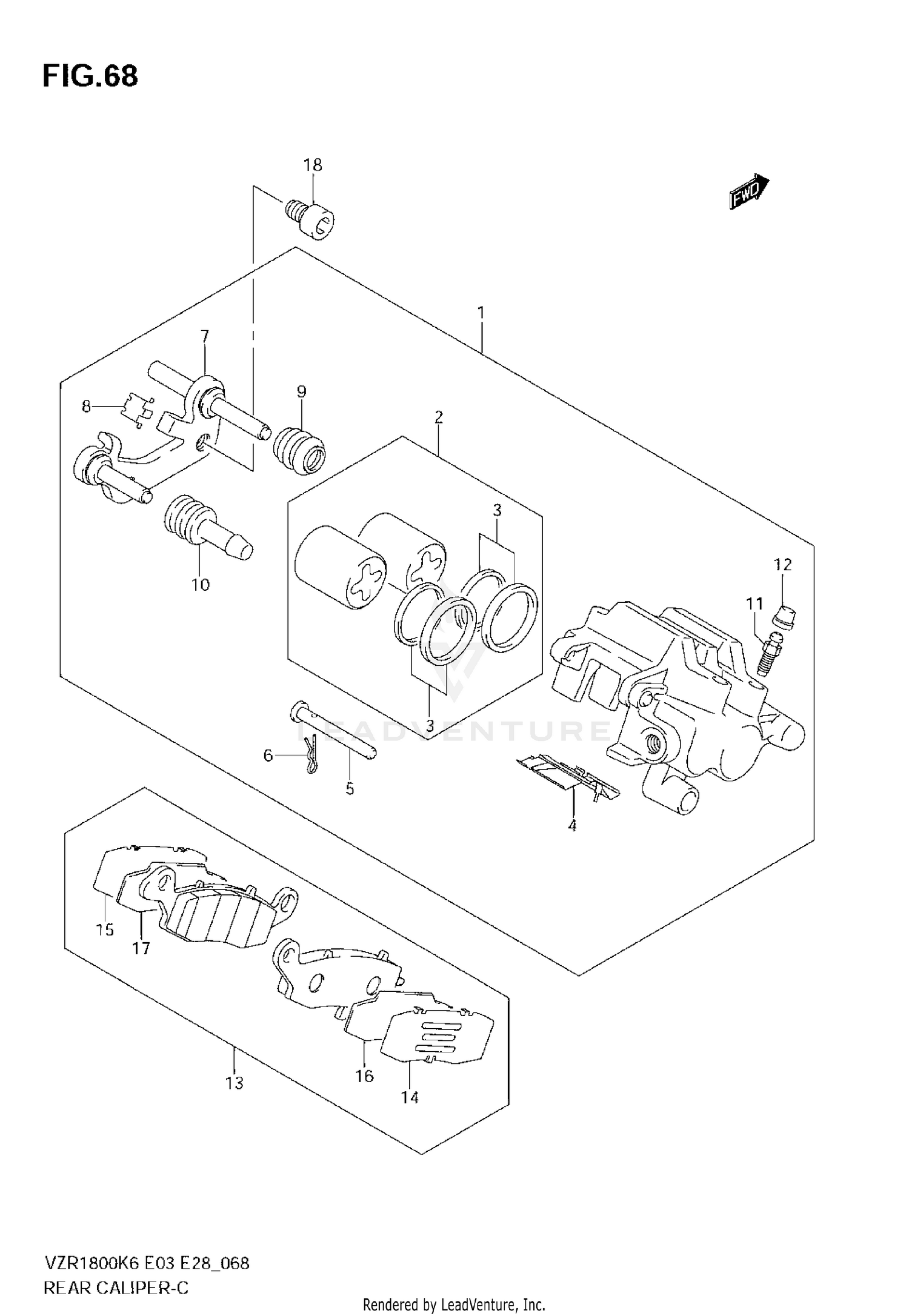

Rear Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, REAR
69100-01D40-999
|
$440.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
69100-01840
|
$140.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59300-33841
|
$19.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, PAD
69115-01D40
|
$20.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, PAD
69141-01D40
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CLIP,PAD PIN
69142-45000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
CARRIER, CALIPER
69150-01D40
|
$142.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GUIDE,PAD
59116-33D00
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT, AXLE
59112-44B00
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
INSULATOR, AXLE
59113-01D00
|
$11.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEEDER
59121-03B00
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, BLEEDER PLUG
55156-66310
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD & SHIM SET
69100-01870
|
$67.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SHIM,PAD
59171-33D00
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SHIM,PAD NO.2
59172-33D00
|
$18.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
INSULATOR NO.1
69171-01D40
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
INSULATOR NO.2
69172-01D40
|
$29.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
07130-1016A
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
