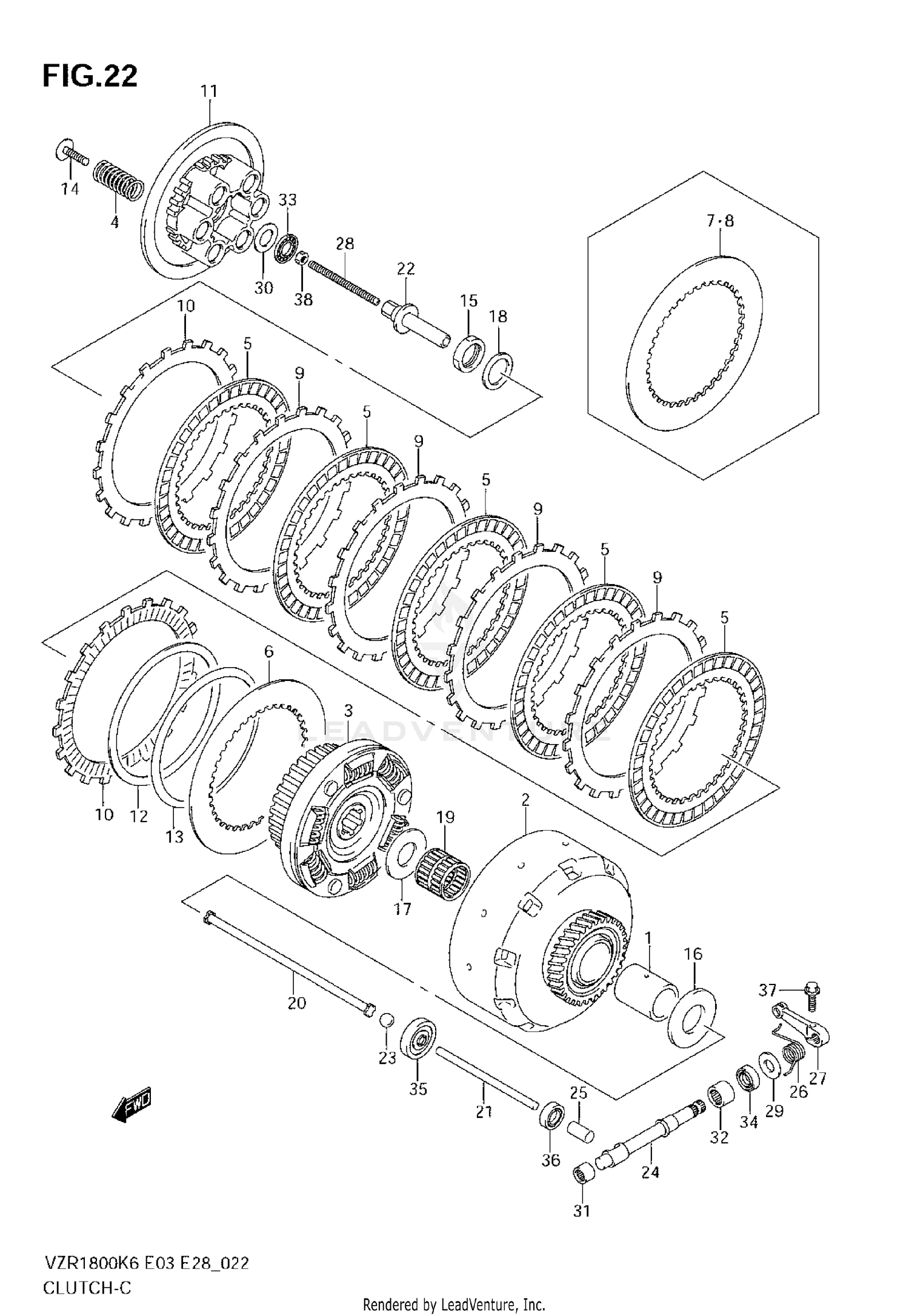

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPACER, PRIMARY DRIVE GEAR
21151-48G00
|
$49.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR ASSY, PRIMARY DRIVE
21100-48G00
Superseded by 21100-48G01
|
$368.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR ASSY, PRIMARY DRIVE
21100-48G01
|
$368.64 | ||
|
Unavailable |
|||
|
#3
HUB, CLUTCH
21410-48G00
|
$440.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, CLUTCH
21413-48G00
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH DRIVE NO.1
21441-48G00
|
$49.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH DRIVE NO.2 (T:2.0)
21441-48G10
Superseded by 21441-48G40
|
$23.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH DRIVE NO.3 (T:2.3)
21441-48G20
Superseded by 21441-48G50
|
$23.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH DRIVE NO.4 (T:1.6)
21441-48G30
Superseded by 21441-48G60
|
$23.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH DRIVEN NO.1
21451-48G00
|
$25.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVEN NO.2
21451-48G10
|
$45.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
DISC, CLUTCH PRESSURE
21462-48G00
|
$79.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT, WAVE WASHER
21471-48G00
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CLUTCH PLATE
21472-48G00
Superseded by 21472-48G10
|
$32.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CLUTCH SPRING
21482-41G00
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CLUTCH SLEEVE HUB
09159-24010
|
$16.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER (25X50X2.5)
09160-25056
|
$14.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (25X50X2.5)
09160-25056
|
$14.34 | ||
|
Unavailable |
|||
|
#18
WASHER (24.2X35X2)
09164-24006
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, CLUTCH SLEEVE HUB WAVE
09164-20008
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, PRIMARY DRIVE
09263-32020
|
$49.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD, CLUTCH
23110-24F00
|
$28.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD,CLUTCH PUSH LH
23111-48G00
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIECE, CLUTCH PUSH
23121-41G00
|
$52.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL, CLUTCH PUSH
23122-02FR0
|
$96.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAMSHAFT, CLUTCH RELEASE
23122-48G00-A05
Superseded by 23122-48G00
|
$63.81 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP, CLUTCH PUSH ROD
23123-41G00-A05
Superseded by 23123-41G00
|
$13.51 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, CLUTCH RELEASE RETURN
23125-48G00-A05
Superseded by 23125-48G00
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
ARM, CLUTCH RELEASE
23271-48G00-A05
Superseded by 23271-48G00
|
$82.77 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, CLUTCH PUSH
09134-06015-A05
Superseded by 09134-06015
|
$8.39 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (10.5X24X1)
09160-10020-A05
Superseded by 09160-10020
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, CLUTCH PUSH PIECE
09160-15045
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, CL RLSE CAM LOWER
09263-10014
|
$16.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BEARING, CL RLSE CAM UPPER
09263-12027
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, CLUTCH PUSH PIECE
09263-15003
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL (10X20X6)
09282-10012
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL (6X34X10.5)
09283-06010
|
$20.46 | ||
|
Available to order. Add to View Price |
|||
|
#36
OIL SEAL (10X17X5)
09285-10004
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, CL RELEASE ARM
01550-0620A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, CLUTCH RELEASE ADJ
08310-0006A
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
