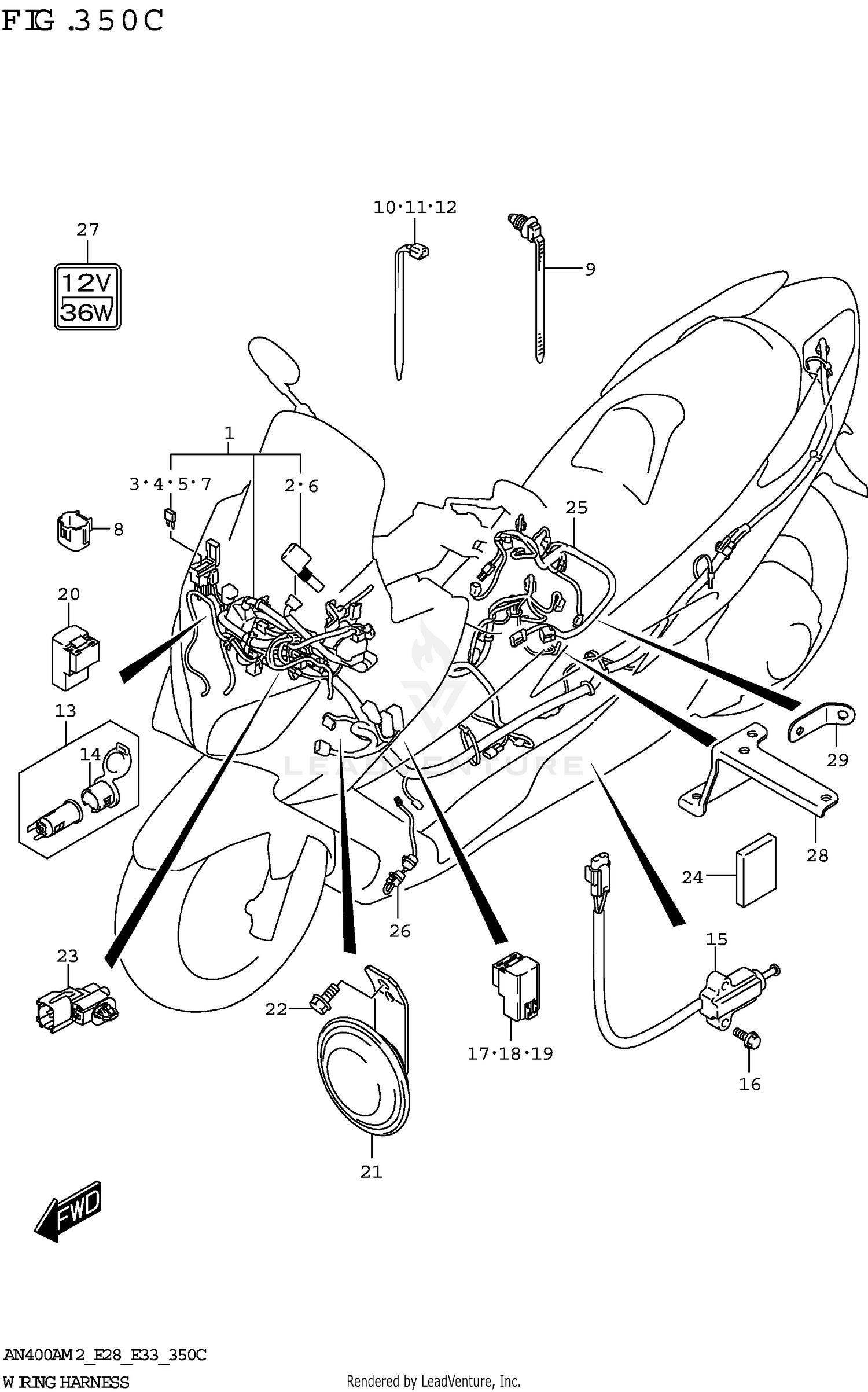

Wiring Harness (e33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING NO.1
36610-19K50
|
$702.63 | ||
|
Unavailable |
|||
|
#2
.COVER,CONNECTOR
36618-41G00
|
$6.75 | ||
|
Unavailable |
|||
|
#3
.FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FUSE (3A)
09481-03502
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BOOT,ECU COUPLER
36618-13G00
|
|||
|
Unavailable |
|||
|
#7
.FUSE (20A)
09481-20501
|
$1.96 | ||
|
Unavailable |
|||
|
#8
CAP,OBD CONNECTOR
36654-28K00
|
$9.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:235)
09407-25401
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
TERMINAL,POWER SOURCE (GRAY)
39410-49F00-P4Z
|
$42.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
.COVER (GRAY)
39441-49F00-P4Z
|
$10.25 | ||
|
Unavailable |
|||
|
#15
SWITCH ASSY,SIDE STAND
37840-18J01
Superseded by 37840-18J02
|
$69.93 | ||
|
Unavailable |
|||
|
#16
BOLT (6X20)
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
RELAY ASSY,FUEL PUMP
38740-26E01
|
$51.23 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY ASSY,FUEL PUMP
38740-26E01
|
$51.23 | ||
|
Unavailable |
|||
|
#19
RELAY ASSY,FUEL PUMP
38740-26E01
|
$51.23 | ||
|
Unavailable |
|||
|
#20
RELAY ASSY,FUEL PUMP
38740-26E01
|
$51.23 | ||
|
Unavailable |
|||
|
#21
HORN ASSY
38500-05H00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SENSOR,AIR TEMP
95643-58J00
|
$57.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
CUSHION (30X40)
44281-29C00
Superseded by 63191-25C00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
HARNESS,WIRING NO.2
36620-19K10
|
$228.41 | ||
|
Unavailable |
|||
|
#26
WIRE,FAN MOTOR LEAD
36852-19K00
|
$54.10 | ||
|
Unavailable |
|||
|
#27
LABEL,MAX AMP
38852-28K01
|
$2.95 | ||
|
Unavailable |
|||
|
#28
BRACKET,HARNESS
47414-19K00
|
$13.28 | ||
|
Unavailable |
|||
|
#29
PLATE,HARNESS
47414-19K10
|
$5.49 | ||
|
Unavailable |
|||
