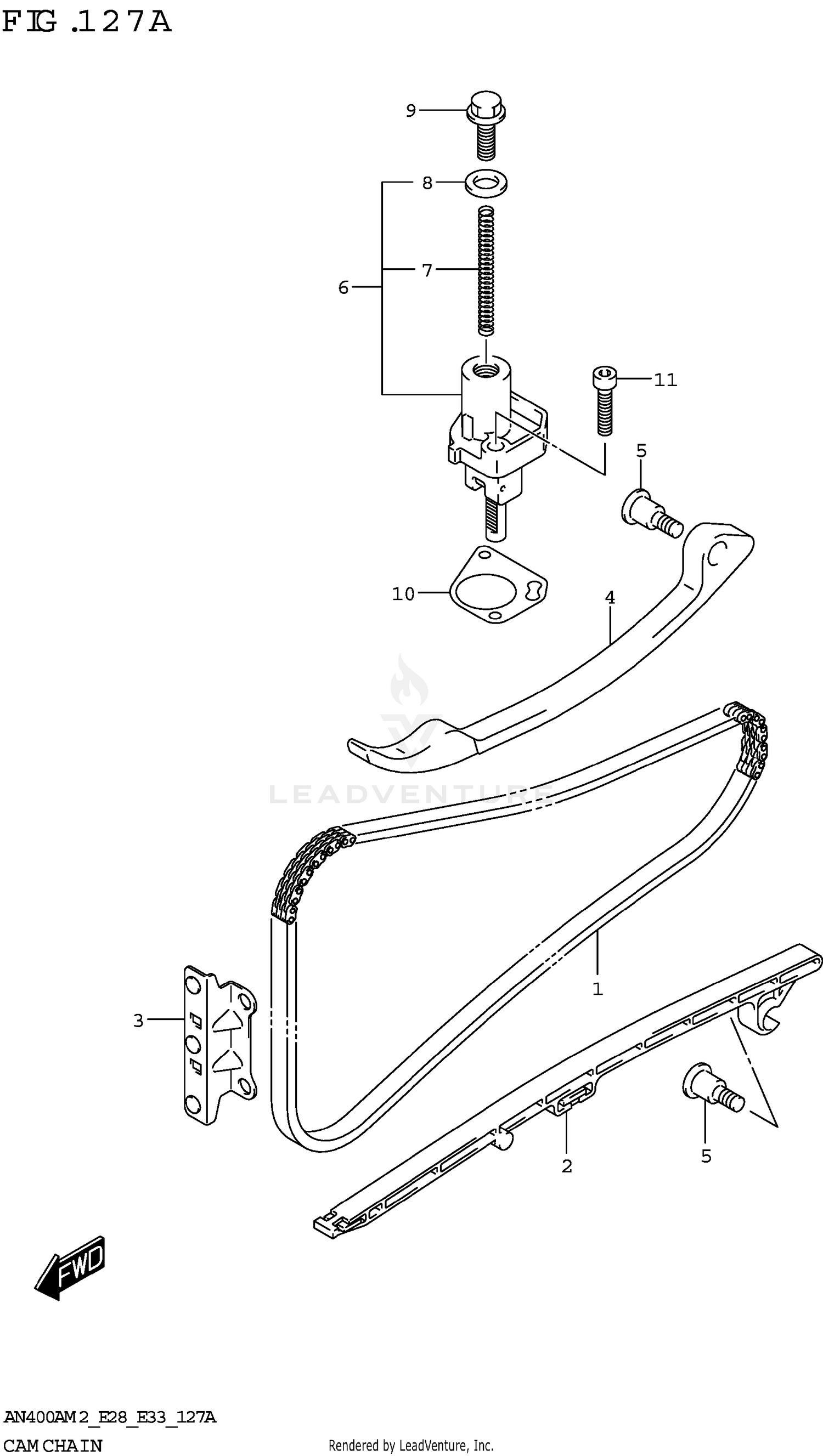

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN,CAMSHAFT DRIVE
12760-19F01
|
$219.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN NO.1
12771-05H01
|
$32.17 | ||
|
Unavailable |
|||
|
#3
GUIDE,CAM CHAIN NO.2
12782-05H00
|
$41.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER,CAM CHAIN
12811-05H01
|
$31.53 | ||
|
Unavailable |
|||
|
#5
BOLT, CAM CHAIN TENSIONER
12812-31G00
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
ADJUSTER ASSY,TENSIONER REAR
12830-27G10
|
$134.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SPRING
12831-39F00
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GASKET,TENSIONER ADJUSTER
12837-24F10
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG,TENSIONER ADJUSTER
12833-17G00
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GASKET,TENSIONER ADJUSTER
12837-27G10
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07130-0625A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
