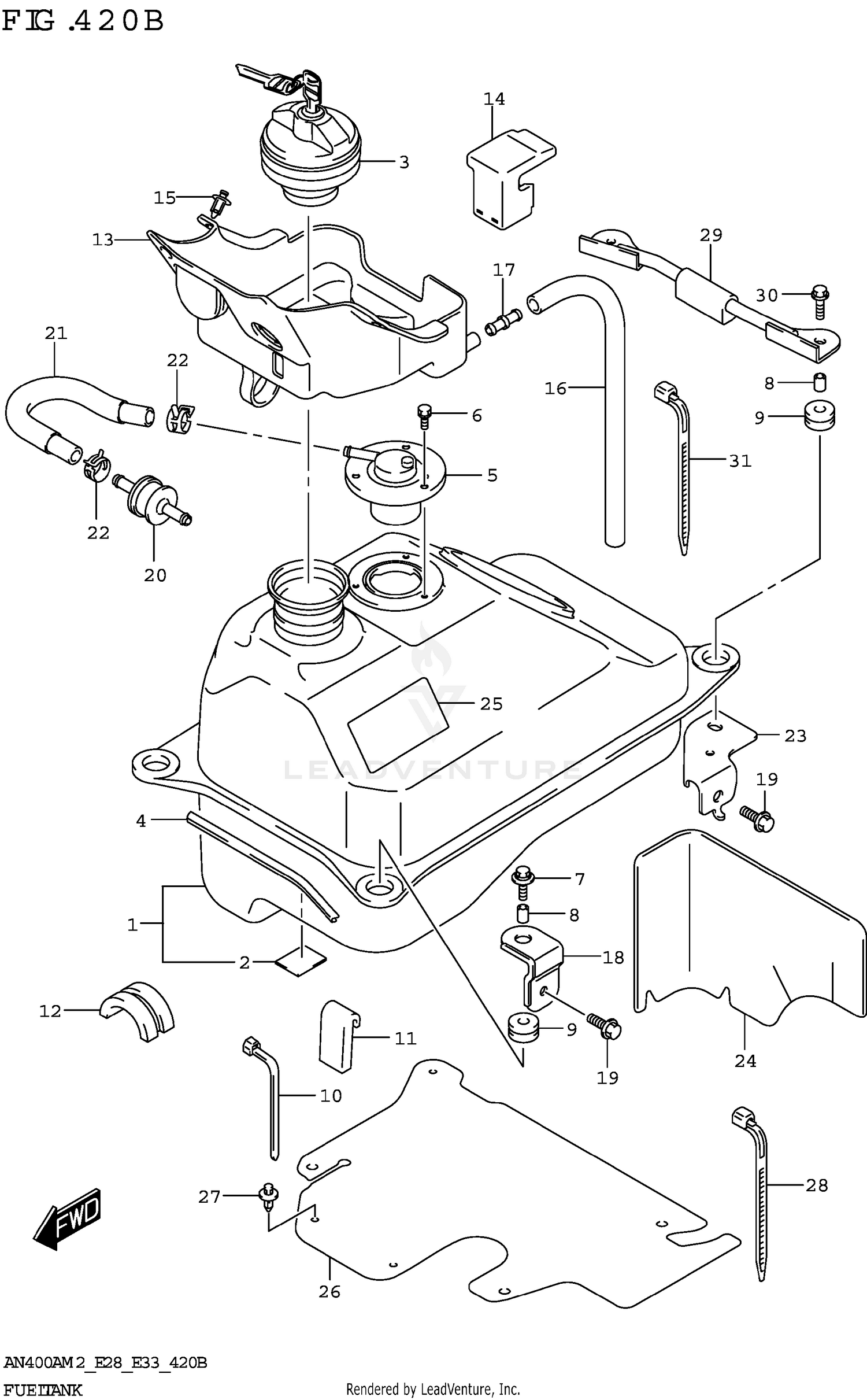

Fuel Tank (e28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL
44110-19K11
|
$762.57 | ||
|
Unavailable |
|||
|
#2
.CUSHION,FUEL TANK
44542-19K00
|
$7.62 | ||
|
Unavailable |
|||
|
#3
CAP SET,FUEL TANK
44200-14840
|
$196.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOLDING,FUEL TANK,REAR
44552-24B00
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE,FUEL CUT
89480-52DA0
|
$71.78 | ||
|
Unavailable |
|||
|
#6
BOLT
09117-05003
Superseded by 01570-0510B
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (6X25)
09116-06147
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (6.5X9X12.5)
09180-06267
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,FUEL TANK SIDE
44512-04F01
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
09407-20405
Superseded by 09407-25402
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION,FUEL TANK,LWR LH
44541-14F00
|
$4.83 | ||
|
Unavailable |
|||
|
#12
CUSHION,FUEL TANK LWR
44541-14F11
|
$6.13 | ||
|
Unavailable |
|||
|
#13
TRAY,FUEL TANK INLET
44260-05H21
|
$79.99 | ||
|
Unavailable |
|||
|
#14
CUSHION,FUEL TRAY
44262-05H01
|
$14.25 | ||
|
Unavailable |
|||
|
#15
CLIP (D:2.4,ID:23.7)
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HOSE,FUEL TANK WATER DRAIN
09352-70104-540
|
$6.42 | ||
|
Unavailable |
|||
|
#17
JOINT
09367-08001
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,FUEL TANK FRONT
44531-05H00
|
$9.94 | ||
|
Unavailable |
|||
|
#19
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE, CHECK
85451-75100
|
$62.12 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,FUEL TANK & CHECK VALVE
44434-05H20
|
$26.57 | ||
|
Unavailable |
|||
|
#22
CLIP
09401-10409
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET,FUEL TANK REAR LH
44560-05H10
|
$26.66 | ||
|
Unavailable |
|||
|
#24
SHIELD,FUEL TANK HEAT
44191-05H00
|
$25.72 | ||
|
Available to order. Add to View Price |
|||
|
#25
TAPE,FUEL TANK SIDE
44192-05H00
|
$30.61 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHEET,FUEL TRAY MUDGUARD
44193-19K01
|
$51.41 | ||
|
Unavailable |
|||
|
#27
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET ASSY,FUEL TANK NO.2
44500-05H02
|
$85.26 | ||
|
Unavailable |
|||
|
#30
BOLT (6X25)
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
