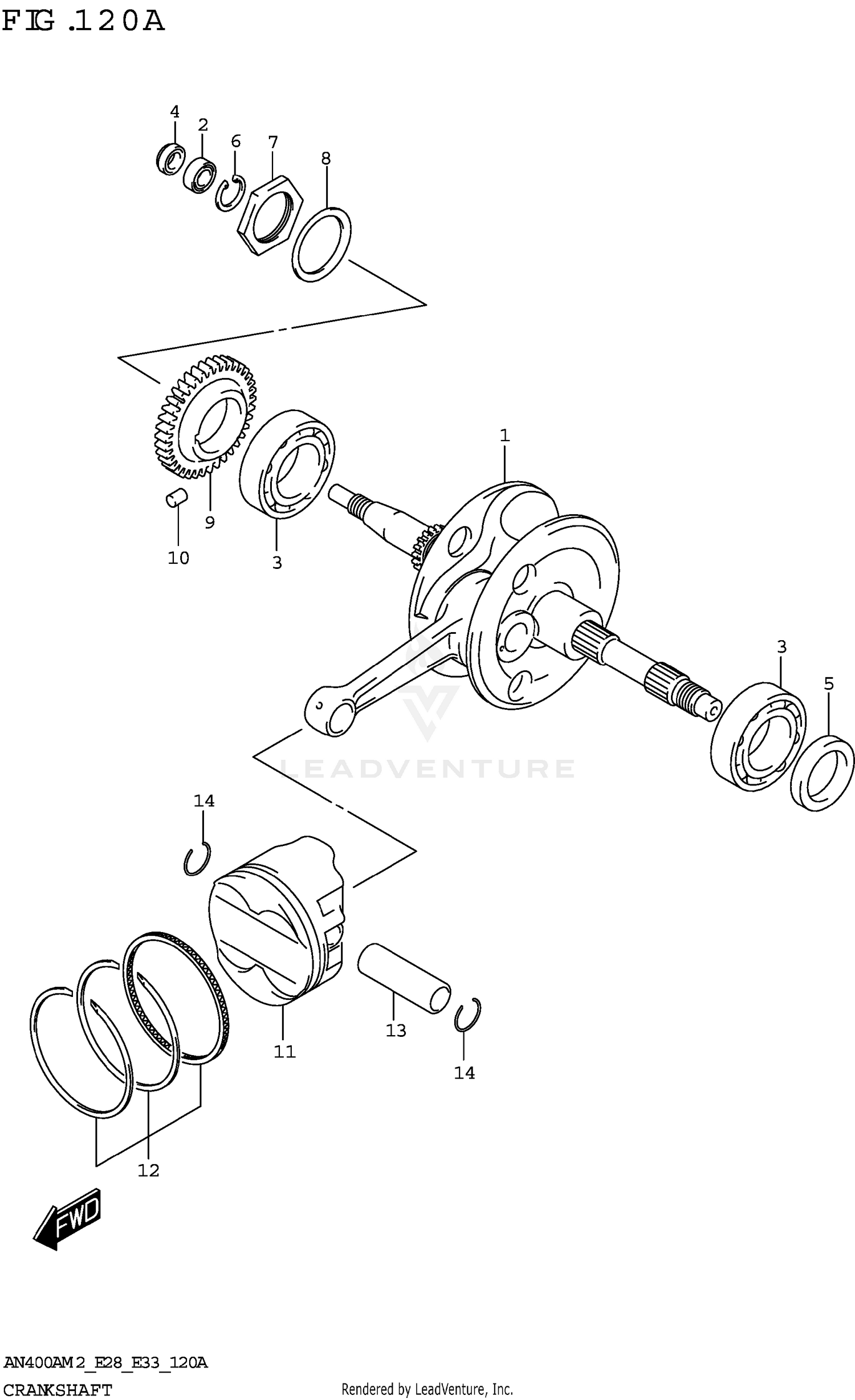

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12200-19K00
|
$597.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (12X32X10)
09262-12016
|
$17.46 | ||
|
Unavailable |
|||
|
#3
BEARING (35X72X17)
09262-35038
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (12X29X6)
09282-12011
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL (34X52X6)
09283-34011
|
$32.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-41329
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,FLYWHEEL
12664-24B01
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (35.1X52X1.5)
09164-35002
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR,CRANK BALANCER DRIVE (NT
12661-05H00
|
$140.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN (5X8)
09261-05005
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON
12111-19K00-0F0
|
$102.95 | ||
|
Unavailable |
|||
|
#12
RING SET,PISTON
12140-10L00
|
$98.28 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN,PISTON
12151-05A00
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
09381-20004
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
