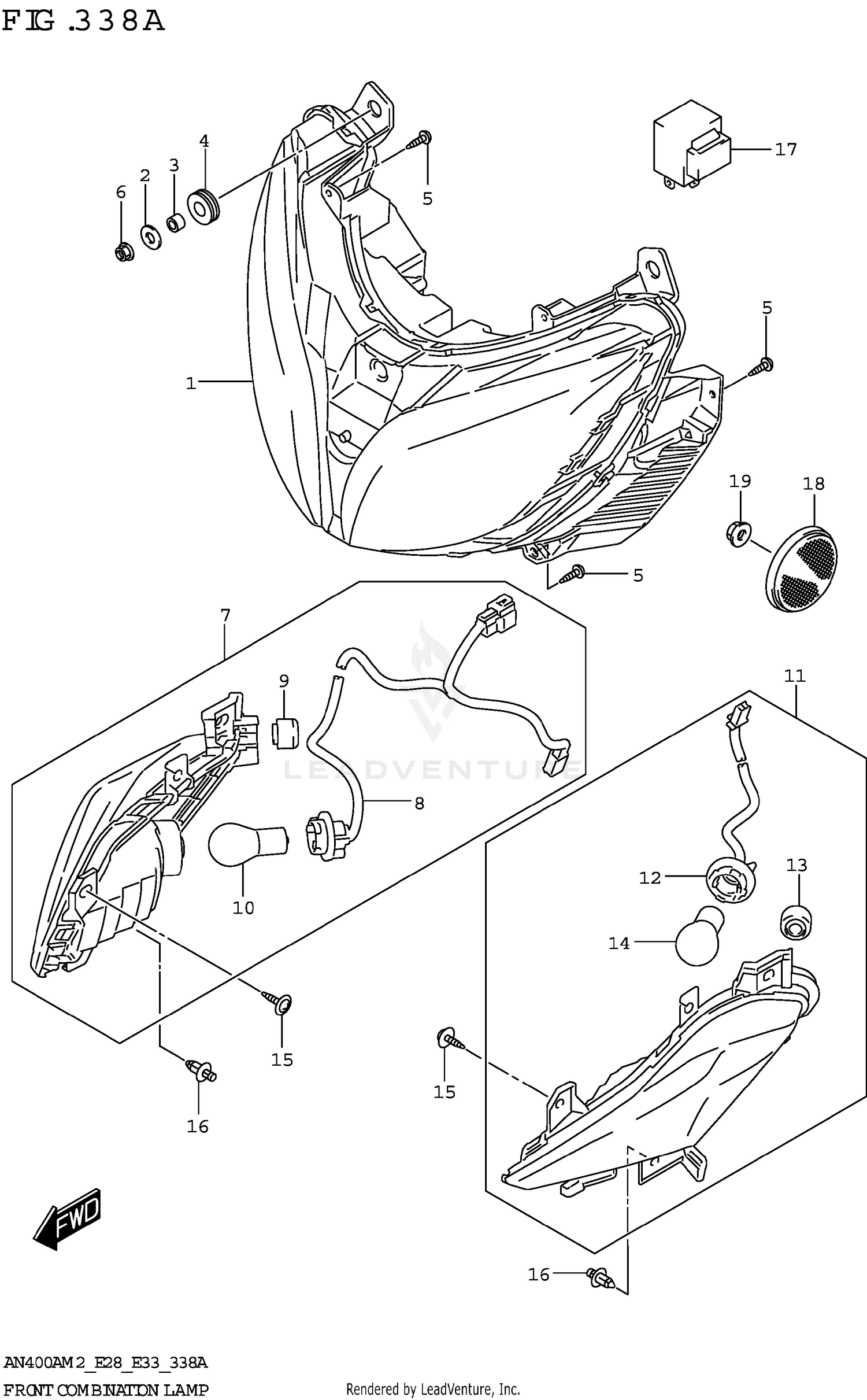

Front Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-19K00
|
$1,174.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (6.5X20X1.2)
09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER (6.5X10X7)
09180-06283
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
09320-10059
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
LAMP ASSY,FRONT TURNSIGNAL RH
35601-19K01
|
$151.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CORD ASSY RH
35618-19K01
|
$34.12 | ||
|
Unavailable |
|||
|
#9
.CAP
35650-19K00
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BULB (12V21W)
09471-12186
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
LAMP ASSY,FRONT TURNSIGNAL LH
35602-19K01
|
$144.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CORD ASSY LH
35638-19K01
|
$25.52 | ||
|
Unavailable |
|||
|
#13
.CAP
35650-19K00
|
$12.65 | ||
|
Unavailable |
|||
|
#14
.BULB (12V21W)
09471-12186
|
$16.19 | ||
|
Unavailable |
|||
|
#15
SCREW (5X16)
09136-05063
|
|||
|
Unavailable |
|||
|
#16
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
RELAY ASSY,TURNSIGNAL
38610-48K00
|
$73.63 | ||
|
Unavailable |
|||
|
#18
REFLEX REFLECTOR ASSY,FR SIDE
35950-13K01
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
