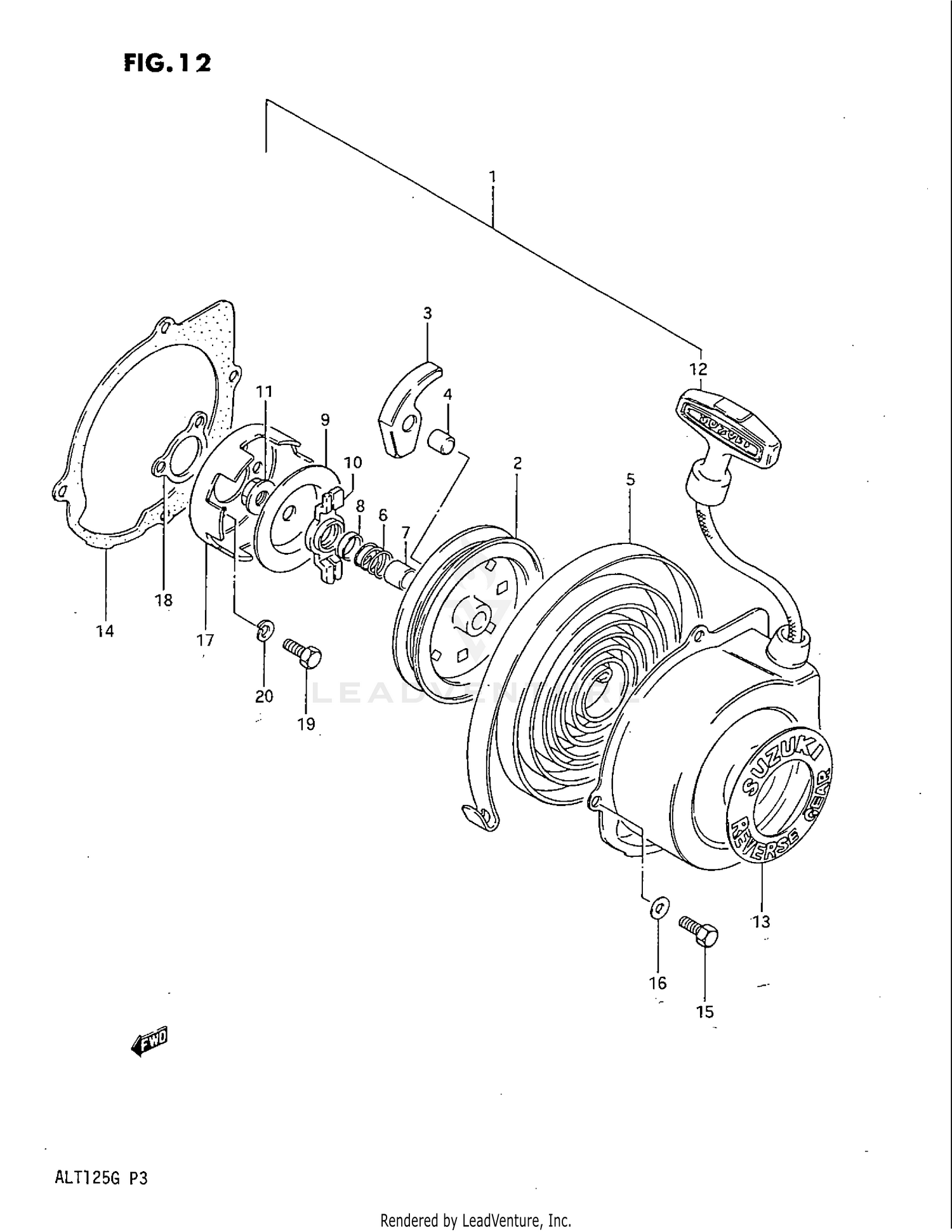

1986 Suzuki ALT125G RECOIL STARTER OEM Parts Diagram

Accessory
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
Item MSRP Qty
#1 STARTER ASSY, RECOIL
18100-24404
$217.41
Available: Ships in 7-12 days.
Add to View Price
#1 STARTER ASSY, RECOIL
18100-24410
Superseded by 18100-24404
$217.41
Unavailable
#2 REEL
18120-24400
$35.77
Available: Ships in 7-12 days.
Add to View Price
#3 RATCHET
18131-24411
$6.87
Available: Ships in 7-12 days.
Add to View Price
#4 PIN, RATCHET
18344-24400
$1.45
Unavailable
#5 SPRING, SPIRAL
18142-24400
$29.60
Available: Ships in 7-12 days.
Add to View Price
#6 SPRING, FRICTION
18153-24400
$0.85
Unavailable
#7 SHAFT, SUB
18176-24400
$1.45
Available: Ships in 7-12 days.
Add to View Price
#8 COVER, SPRING
18275-24400
$0.85
In Stock: Ready to ship.
Add to View Price
#9 RATCHET SET
18151-24400
Superseded by 18130-24400
$16.96
Available: Ships in 7-12 days.
Add to View Price
#10 GUIDE, RATCHET
18132-24400
$2.74
Available: Ships in 7-12 days.
Add to View Price
#11 NUT
18334-24400
Superseded by 08316-1006B
$2.38
In Stock: Ready to ship.
Add to View Price
#12 ROPE ASSY
18200-24400
$34.11
Available: Ships in 7-12 days.
Add to View Price
#13 EMBLEM
68398-24400
Superseded by 68398-24410
$13.75
Available: Ships in 7-12 days.
Add to View Price
#14 GASKET
18299-18900
$4.53
In Stock: Ready to ship.
Add to View Price
#15 BOLT
01107-06165
Superseded by 01500-0616A
$1.68
Available: Ships in 7-12 days.
Add to View Price
#16 .WASHER
08322-21064
Superseded by 08322-0106B
$2.13
Available: Ships in 7-12 days.
Add to View Price
#17 CUP, STARTER
18411-18911
$31.19
Available: Ships in 7-12 days.
Add to View Price
#18 SPACER
18511-18900
$3.62
Unavailable
#19 BOLT
01107-06128
Superseded by 01500-06127
$1.87
Available: Ships in 7-12 days.
Add to View Price
#20 LOCK WASHER
08321-21068
Superseded by 08321-01067
$1.75
Available: Ships in 7-12 days.
Add to View Price
